C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

light gauge steel roll forming machine

villa house roll forming machine

stud and track roll forming machine

Place of Origin:

CHINA

Brand Name:

FMS

Certification:

ISO CE

Model Number:

C89

Contact Us
Request A Quote
C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House
Product Details
Product Name:
C89 Roll Forming Machine
Dimension(L*W*H):
6800 Mm*1000 Mm*1500 Mm
Raw Material:
Galvalume, Galvanized
Working Speed:
20 M/min - 25 M/min
Color:
White
Delivery:
45 Working Days
Motor Power:
7.5 KW
Container Load:
20 Feet
Pow Supply:
380V, 60Hz, 3Ph
Profile:
C89
Control System:
PLC
Cutting Length Accuracy:
±2mm
Cutting System:
Hydraulic
Material Thickness:
0.8-1.2mm
Voltage:
380V
Highlight:

light gauge steel roll forming machine

,

villa house roll forming machine

,

stud and track roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price Roller Fixer Guide Column CU stud for Long-lasting Roofing online

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Get Best Price
Good price Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control online

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Get Best Price
Good price 10-15m/min CU track Machine About 7.5m*1.5m*1.2m Design at 10-15m/min online

10-15m/min CU track Machine About 7.5m*1.5m*1.2m Design at 10-15m/min

Get Best Price
Good price Fast Speed Light Steel L Wall Angle Corner Bead Roll Forming Machine online Video

Fast Speed Light Steel L Wall Angle Corner Bead Roll Forming Machine

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

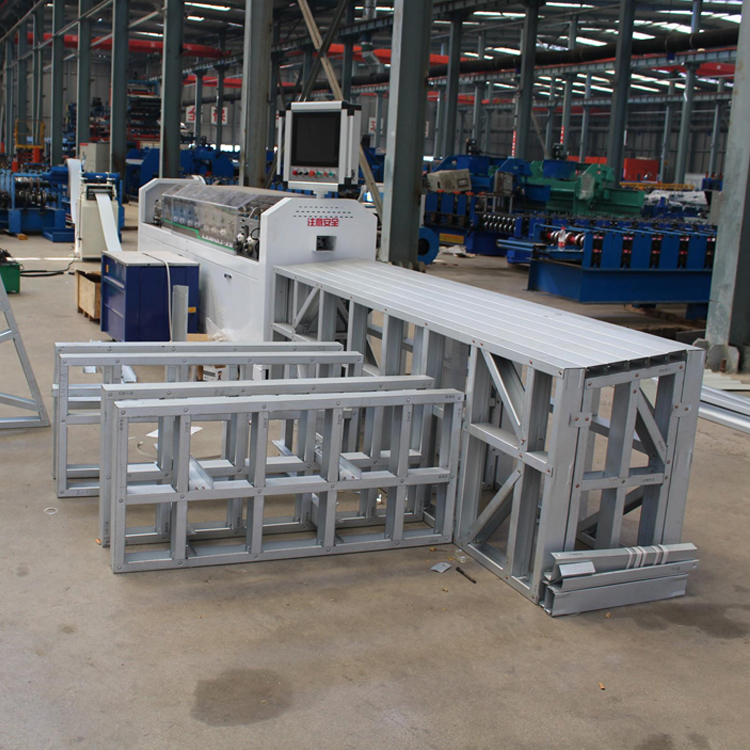

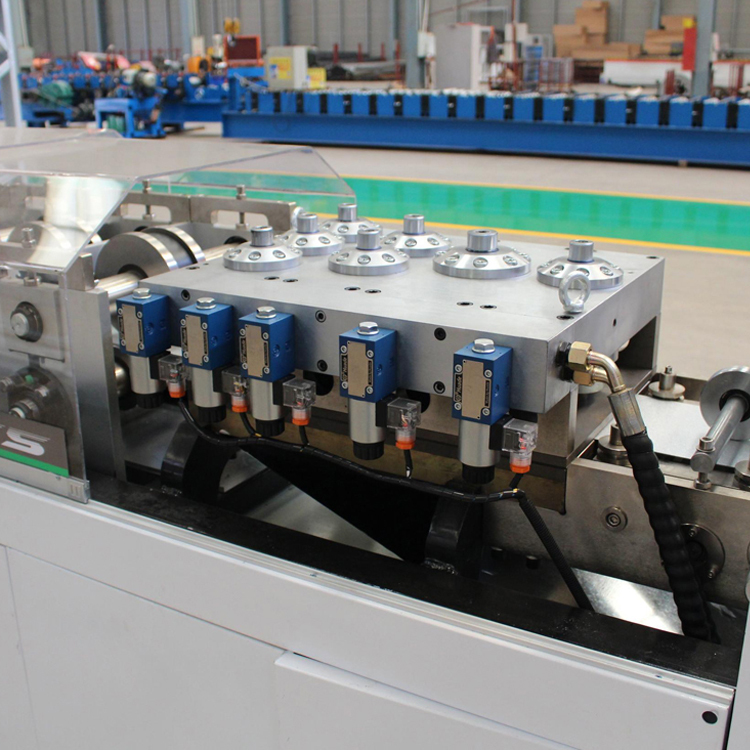

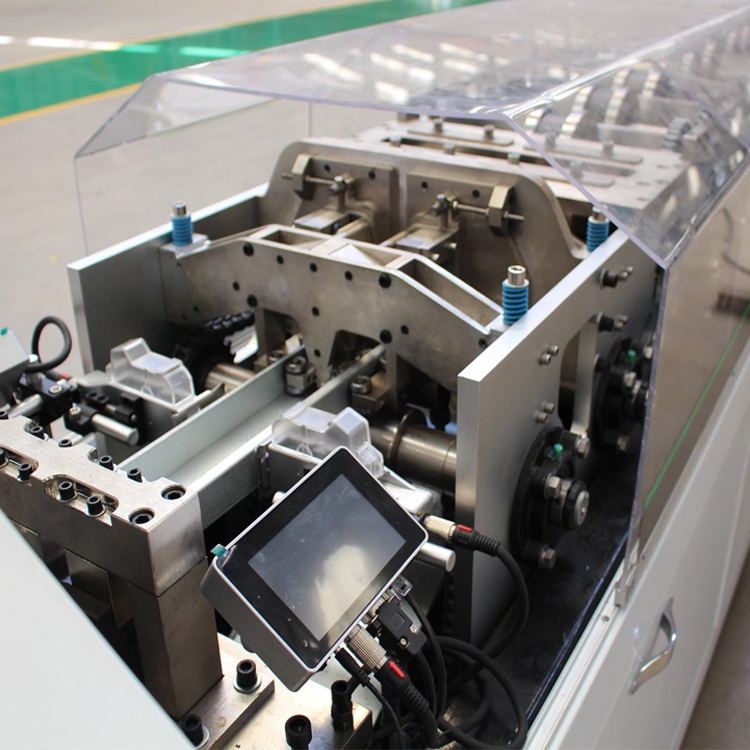

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House
High speed Stud And Track Roll Forming Machine with flying cutting system

Light gauge steel villa stud cold-forming equipment is a type of roll forming machinery specifically designed to produce the primary structural components--the studs, tracks, and channels--used in Light Gauge Steel Framing (LGSF) for construction, particularly in modern villas and residential buildings. This equipment transforms continuous coils of galvanized steel sheet into precise, high-strength C-sections (studs), U-sections (tracks), and other custom profiles through a cold-forming process.

Specification
No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.5-1.2 mm
3 Working Speed 20-40 m/min
4 Roller Station 9 Raws
5 Dimension (L*W*H) 5800 mm*1000 mm*1500 mm
6 Machine Weight 2000 KG
7 Electrical Control System Delta PLC (can be customized)
8 Drive Motor Power 7.5 KW
9 Hydraulic Station Power 4 KW
10 Power Supply 380V, 60HZ, 3 PHASES(can be customized)
11 Cutting Accuracy ±2 mm
12 Driving Mode Single Chain 1 inch
13 Material of Shaft 60 mm 45#steel forged
14 Material of Roller 45# Steel Finish Machining, Plated Hard
Advantage
  • Easy to operate
  • Long warranty
Payment terms

40% in advance as down payment by TT
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House 0
