0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House

0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House

Prefab House Light Steel Framing Machine

C140 Light Steel Framing Machine

C200 Light Steel Framing Machine

Place of Origin:

china

Brand Name:

FMS

Certification:

CE

Model Number:

c89

Contact Us
Request A Quote
0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House
0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House
Product Details
Machine Size:
Depend On Profiles
Machine Weight:
2500KG
Form Speed:
15-20m/min
Roller Materials:
45#Steel
Warranty:
1 Year
Thickness:
1.5mm
Hydraulic Motor:
5.5KW
Forming Stations:
18
Cutting Method:
Hydraulic Cutting
Highlight:

Prefab House Light Steel Framing Machine

,

C140 Light Steel Framing Machine

,

C200 Light Steel Framing Machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
40000-75000 usd
Packaging Details
Naked with Plastic Film.
Delivery Time
45 worl days
Supply Ability
20sets per month
RELATED PRODUCTS
Good price High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control online Video

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control

Get Best Price
Good price Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness online Video

Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness

Get Best Price
Good price Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ online Video

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Get Best Price
Good price Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness online Video

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

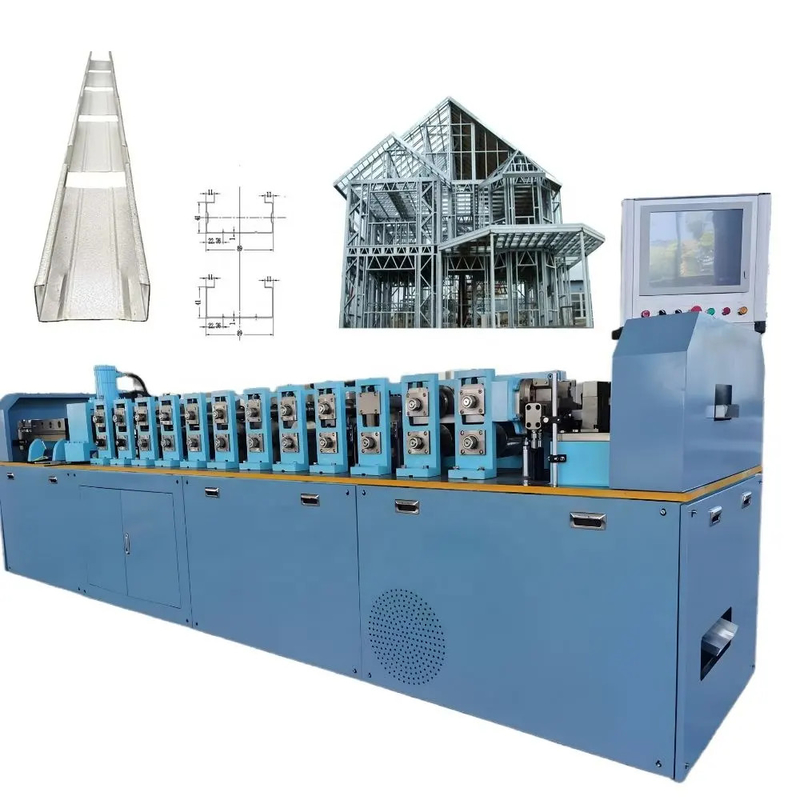

     0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine for Prefab House





The Light Steel Framing Machine is the automatic production line. Width 89mm, 140mm 200mm are the common sizes. The machine includes decoiler, hydraulic punching, hydraulic cutting, passive output table, industrial computer and so on.

It is a fully automatic wall, floor and roof truss frame design production system using one single dedicated C & U shape profile.
This framing system engineers, designs and produces wall frames, floor truss, and roof trusses complying to all major international light steel framing building codes: America, British, Euro, Canadian and Australian.ed C & U shape profile.
0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 0
Application
Light gauge steel framing machine villa keel roll forming machine
According to the specific requirements of the construction of light steel villas, equipped with stamping molds and coding devices such as concave screw holes, chamfers, web through holes, small edge shear, pipe line holes, web shrinkage, shear, etc. Adopting professional industrial computer numerical control automatic control, it has the characteristics of wide application range, high product accuracy, high degree of automation, material saving, and high degree of automation. Intended to continuously innovate prefabricated buildings and diverse structural forms in the market, We can design and manufacture specialized equipment according to customer requirements, and provide supporting equipment such as planking/adjustable C-steel.
0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 10.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 2
​

Detailed Parameters

​Technical Data:



Size
C75 or C89 or C140 or C200
Thickness
0.8mm-1.2mm,0.8-1.6mm,0.8-2.0mm(Galvanzied coils and Aluzinc
Standard Producing speed
300-700m/h
Max producing speed
1500m/h
Main motor
7.5kw Servo motor or 11KW servo motor
Power supplier
415V 50Hz 3phases according to your request
Hydraulic station
7.5kw Motor or 7.5KW
Hydraulic tank capacity
100L
Hydraulic cooling
Fan cooling with Accumulator
Hydraulic pressure
Manually set
Host cordless remote control
Standard
Frame and punching dies
Web Notch(1 set),Screw hole(1 set), chamfer(1 set), flange cut(1 set), Service Hole(1 set), suspension, cutting blade(1 set)
Product accuracy+-
0.5mm
CNC inkjet-printer
HP inkjet printer
Size
4700/5300*950*1200mm
Weight
3000kg/4500
Color
According to your request
De-colier
2 Tons electric decoiler with leveling device


​0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 6​​



0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 7
