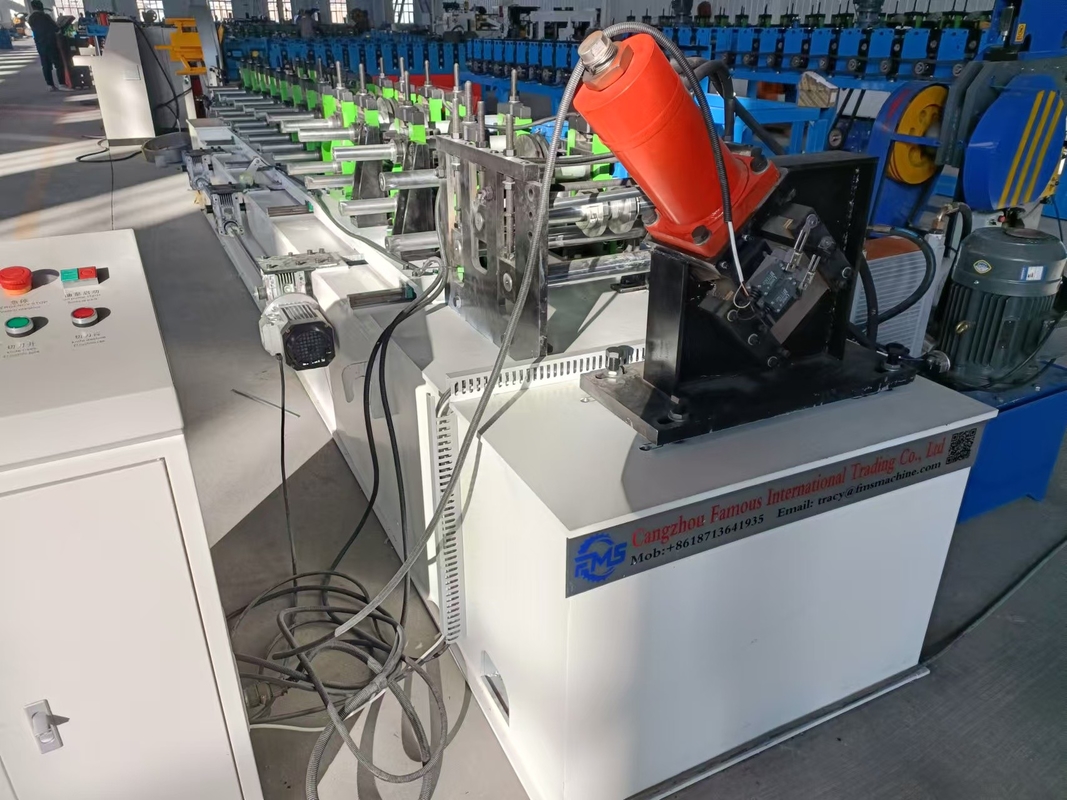

1200mm Light Steel Frame Roll Forming Machine PLC Delta

light steel frame roll forming machine

light gauge steel roll forming machine

1200mm Roll Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Core Components:

Motor, Bearing, Gear, Pump, Engine, PLC

Product Name:

Light Keel Steel Profile Roll Forming Machine Stud And Track Steel

Forming Speed:

3-4m/min

Material Width:

1200mm

Tile Type:

Colored Glaze Steel, Steel, Roll Forming Machine/building Material Machinery, Colored

Control System:

PLC (Delta)

Tile Type:

Steel

Voltage:

380V

Highlight:

light steel frame roll forming machine

light gauge steel roll forming machine

1200mm Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negoiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

D/A, D/P, T/T, L/C

Supply Ability

30 sets per month

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control

Get Best Price

Video

Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness

Get Best Price

Video

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Get Best Price

Video

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness

Get Best Price

86-317-2016816

Contact Now

Product Description

Light Keel Steel Profile Roll Forming Machine Stud And Track Steel

Light gauge roll forming machine, the light steel keel is made of high-quality continuous hot-dip galvanized sheet and strip as raw materials, and is rolled into a metal frame for construction through a cold bending process.

It is suitable for the decoration of the roof of various buildings, the inner and outer walls of the building and the scaffold The base material of the suspended ceiling. The light steel keel includes ceiling keel and partition keel according to the purpose, and V-shaped, C-shaped, T-shaped, L-shaped and U-shaped keels according to the cross-sectional form.

Equipment Detailed Parameters

No
1	Control system	HMI & PLC control panel
2	Material of rollers	45#steel Hard Chrome Coated
3	Rows of rollers	18rows
4	Blade Material	CR12 with heat treatment HRC60-62
5	Motor Power	5.5 kw forming system
6	Thickness of raw material	0.5-0.6mm
7	Material of main shaft	45# steel finishing machining and then slack
8	Diameter of shaft	￠70mm
9	Voltage	380V 50Hz 3phases
10	Roller material	C45 steel
11	Power	4KW

1200mm Light Steel Frame Roll Forming Machine PLC Delta 0
