Galvalume Lgs Light Gauge Steel Roll Forming Machine For Villa House Structure

Galvalume Lgs Light Gauge Steel Roll Forming Machine For Villa House Structure

lgs light gauge steel roll forming machine

galvalume light gauge steel roll forming machine

galvalume light steel framing machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Stud and Track

Contact Us
Request A Quote

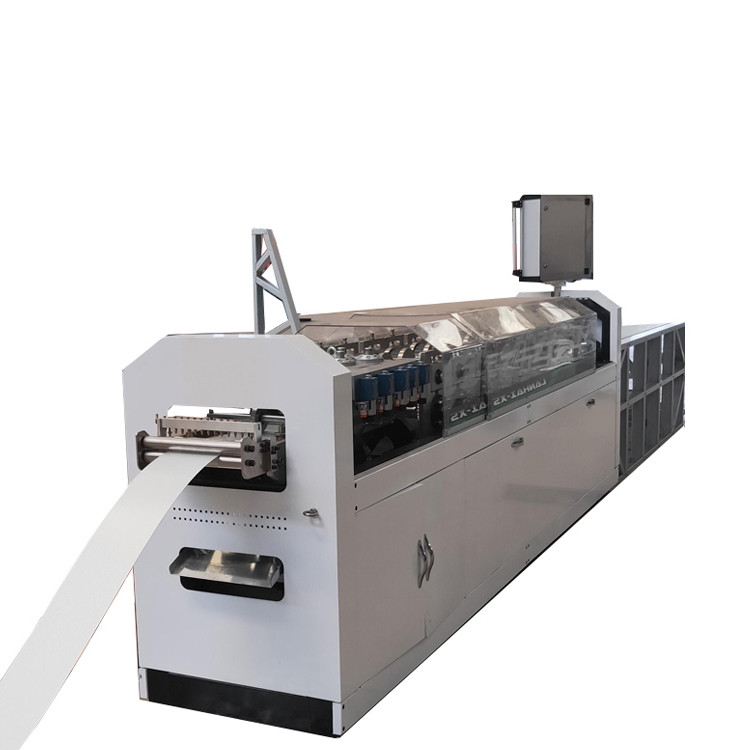

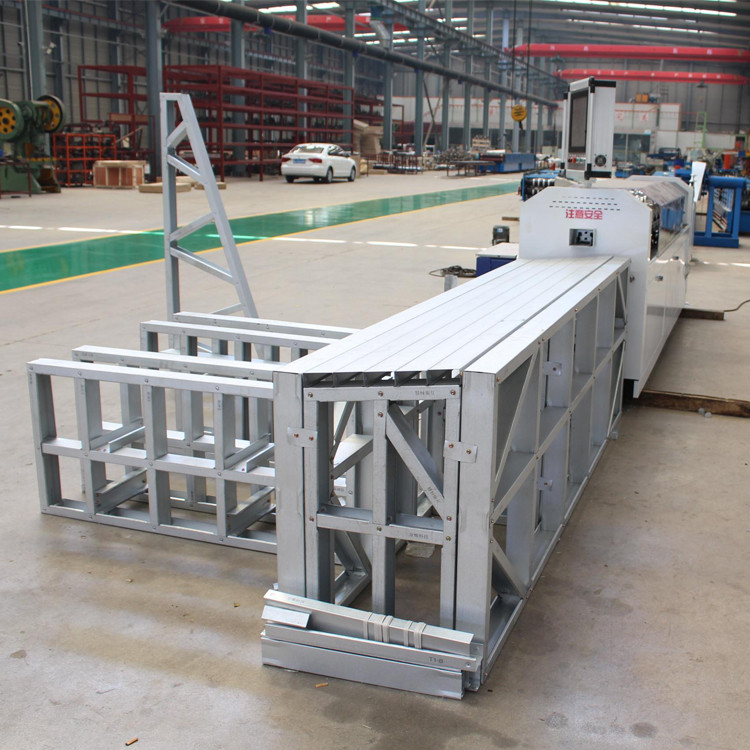

Galvalume Lgs Light Gauge Steel Roll Forming Machine For Villa House Structure
Galvalume Lgs Light Gauge Steel Roll Forming Machine For Villa House Structure Galvalume Lgs Light Gauge Steel Roll Forming Machine For Villa House Structure
Product Details
Product Name:
Stud And Track Roll Forming Machine
Dimension(L*W*H):
6500 Mm*1000 Mm*1500 Mm
Raw Material:
Galvalume, Galvanized
Working Speed:
20 M/min - 30 M/min
Color:
Customzied
Delivery:
30 Working Days
Motor Power:
4KW
Container Load:
20 Feet
Pow Supply:
380V, 60Hz, 3Ph
Profile:
As Customer Requested
Control System:
PLC
Cutting Length Accuracy:
±2mm
Cutting System:
Hydraulic
Forming Speed:
20-25m/min
Material Thickness:
0.3-1.2mm
Roller Material:
45# Steel
Voltage:
380V
Highlight:

lgs light gauge steel roll forming machine

,

galvalume light gauge steel roll forming machine

,

galvalume light steel framing machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control online Video

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control

Get Best Price
Good price Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness online Video

Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness

Get Best Price
Good price Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ online Video

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Get Best Price
Good price Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness online Video

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

High speed Stud And Track Roll Forming Machine with flying cutting system



The Roll Forming Machine is composed of feeding, forming, and post-forming cutting. The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.





Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.5-1.2 mm
3 Working Speed 20-40 m/min
4 Roller Station 9 Raws
5

Dimension (L*W*H)

 5800 mm*1000 mm*1500 mm
6 Machine Weight 2000 KG
7

Electrical Control System

Delta PLC (can be customized)
8

Drive Motor Power

 7.5 KW
9

Hydraulic Station Power

 4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Advantage



easy to operate long warranty security framework Good value for money Good quality



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
