Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stud And Track Roll Forming Machine | Dimension(L*W*H): | 5500 Mm*1000 Mm*1500 Mm |
|---|---|---|---|
| Raw Material: | Galvalume, Galvanized | Working Speed: | 20 M/min - 30 M/min |
| Color: | Customzied | Delivery: | 30 Working Days |
| Motor Power: | 4KW | Container Load: | 20 Feet |
| Pow Supply: | 380V, 60Hz, 3Ph | Profile: | As Customer Requested |
| Control System: | PLC | Cutting Length Accuracy: | ±2mm |
| Cutting System: | Hydraulic | Forming Shaft Diameter: | 50mm |
| Forming Shaft Material: | 45# Steel | Forming Speed: | 20-25m/min |
| Main Motor Power: | 5.5KW | Material Thickness: | 0.3-1.2mm |
| Roller Diameter: | 70mm | Roller Material: | 45# Steel |
| Voltage: | 380V | ||
| High Light: | prefabricated building light steel framing machine,highly productivity light steel framing machine |
||

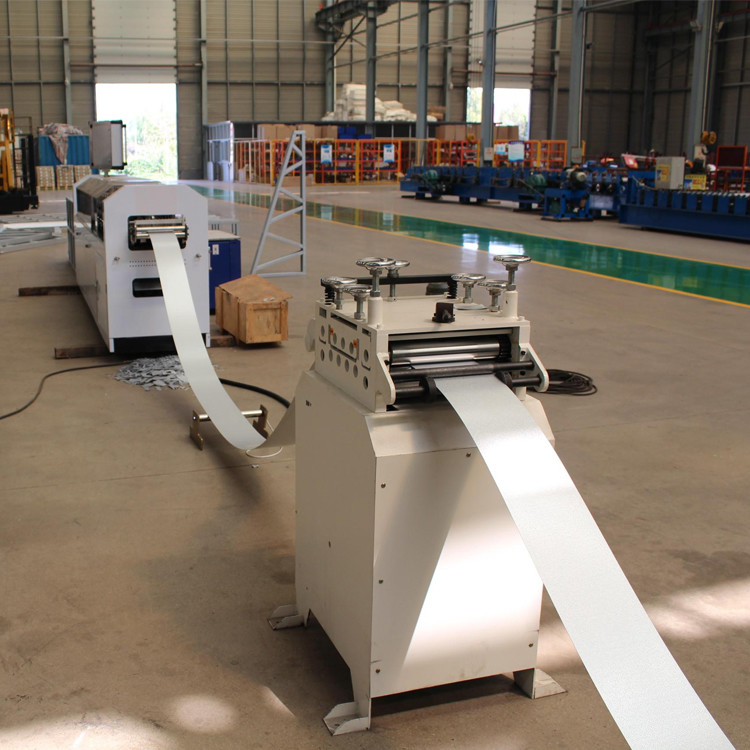

High speed Stud And Track Roll Forming Machine with flying cutting system
The stud and track is suitable for use in commercial and domestic buildings where it is necessary to provide strong non-load-bearing partitions.
There is a wide range of partition thickness available for heights of up to 12m. The system is economical and can be erected easily. When installing the system, it is advisable to use and electrically or battery-operated screw gun. It is necessary to ensure that electric cables can pass through the studs that are protected by grommets.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.5-1.2 mm |
| 3 | Working Speed | 20-40 m/min |
| 4 | Roller Station | 9 Raws |
| 5 |
Dimension (L*W*H) |
5800 mm*1000 mm*1500 mm |
| 6 | Machine Weight | 2000 KG |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
7.5 KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Advantage
The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
