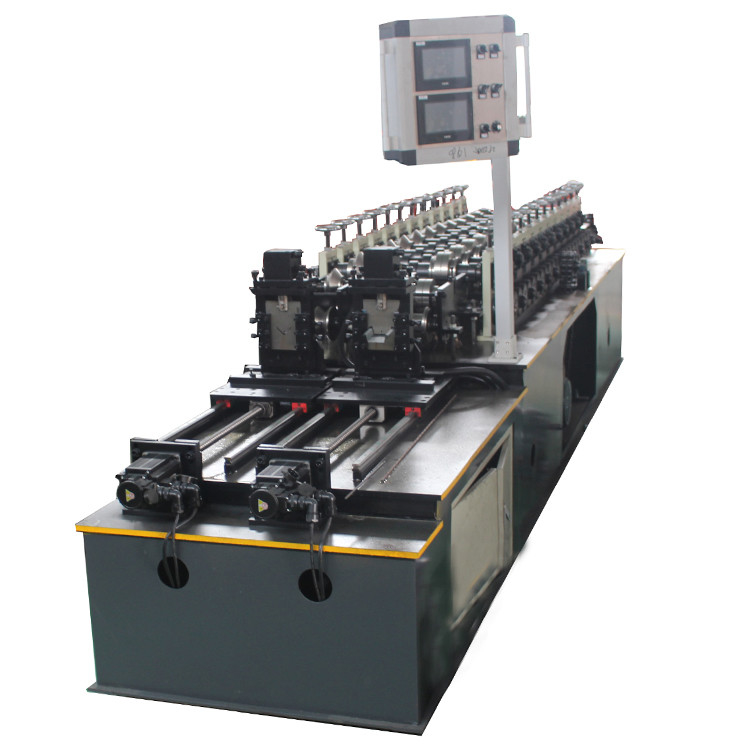

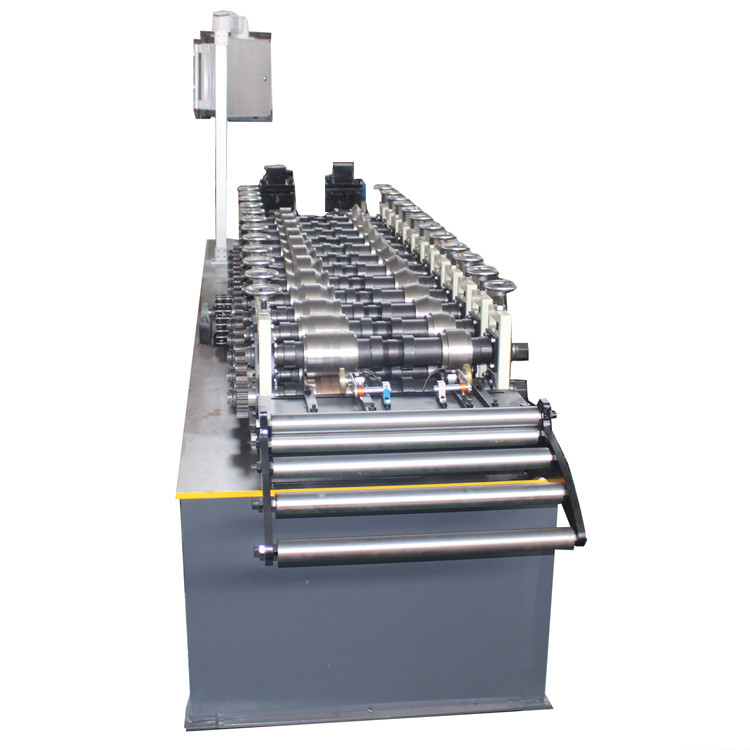

Double Head Light Gauge Steel Stud And Track Roll Forming Machine 10-25m /Min

Double Head Light Gauge Steel Stud And Track Roll Forming Machine 10-25m /Min

Light Gauge Steel Roll Forming Machine

25m/min stud and track forming machine

10m/min stud and track forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Light gauge steel

Contact Us
Request A Quote
Double Head Light Gauge Steel Stud And Track Roll Forming Machine 10-25m /Min
Double Head Light Gauge Steel Stud And Track Roll Forming Machine 10-25m /Min Double Head Light Gauge Steel Stud And Track Roll Forming Machine 10-25m /Min
Product Details
Product Name:
Double Head Light Gauge 0.3-0.8 Steel Roll Forming Machine Make Drywall Profiles
Raw Material:
PL,GL,PPGL,PPGI
Working Speed:
10-25m /min
Material Thickness:
0.3mm - 0.8 Mm
Weight:
3500kg
Delivery:
30 Working Days
Driving Mode:
1 Inch Chain
Roller Materials:
#45
Highlight:

Light Gauge Steel Roll Forming Machine

,

25m/min stud and track forming machine

,

10m/min stud and track forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
25 Sets Per Month
RELATED PRODUCTS
Good price High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control online Video

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control

Get Best Price
Good price Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness online Video

Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness

Get Best Price
Good price Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ online Video

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Get Best Price
Good price Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness online Video

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

Double Head Light Gauge Steel Roll Forming Machine Stud And Track Roll Forming Machine



  Cangzhou FMS has a long history in producing rolling machines. Decades ago, their technical experience was consolidated through a flexible hydraulic punch system called 'soft punching'. Since then, Cangzhou FMS has produced several systems to meet the constantly changing industry needs. We have a team of professionals with many years of experience and a good track record, which can bring you some advanced and innovative energy, and this is also the case.



Specification



No. Item Description
1 Coil PL,GL,PPGL,PPGI
2 Raw Material Thickness 0.3-0.8mm
3 Working Speed 10-25m/min
4 Roller Station 13 /16Raws
6 Machine Weight 3500 KG
7

Electrical Control System

PLC (can be customized)
8

Drive Motor Power

 7.5 KW
9

Hydraulic Station Power

 5 KW
10

Power Supply

380V, 60HZ, 3 PHASES
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
