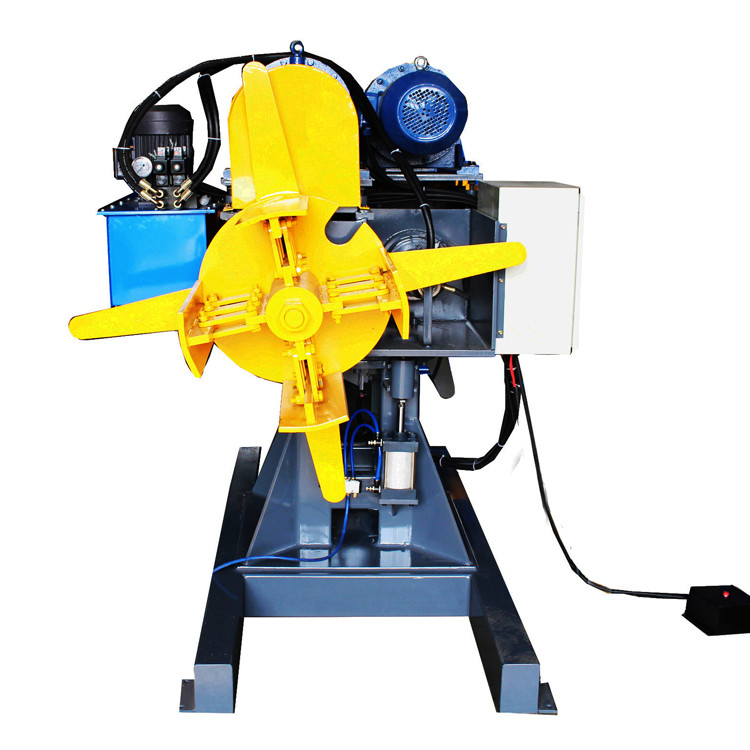

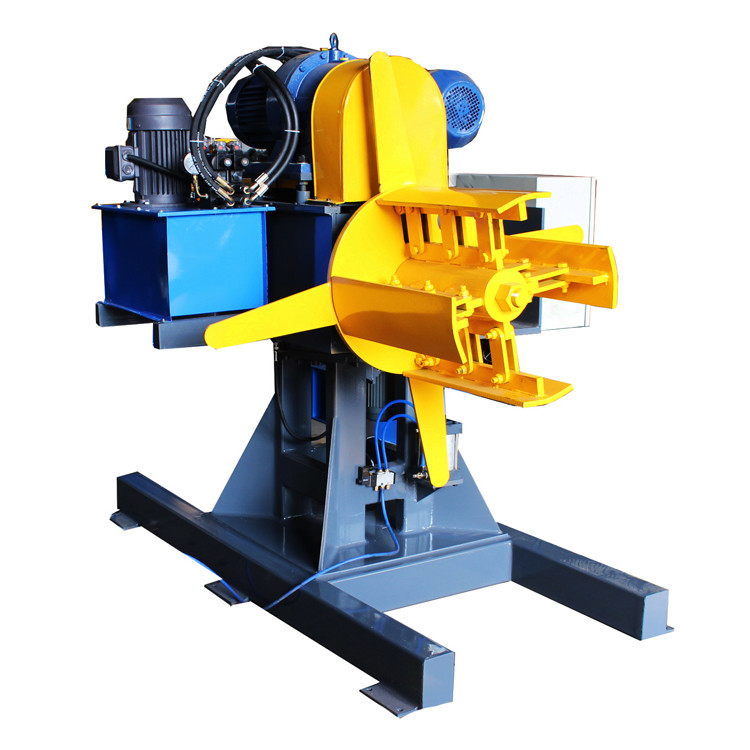

Name: Customized Automatic Double Head Steel Coil Hydraulic Decoiler 5T 10T
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 5T- Auto Hydraulic Decoiler With Car
Price: 26,500.00 USD
Availability: InStock

Home > products > Cut To Length And Slitting Line >

Customized Automatic Double Head Steel Coil Hydraulic Decoiler 5T 10T

5T Hydraulic Decoiler

10T Hydraulic Decoiler

Automatic Double Head Decoiler

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

5T- Auto Hydraulic Decoiler With Car

Request A Quote

Product Details

Product Name:

Customized Automatic Double Head Steel Coil Hydraulic 5T 10T Decoiler

Suitable Material:

Strip Steel, GI, PPGI, AL

Dimension(L*W*H):

About 1.2m *0.8m X 1.5 Mm

Processing Width:

600-1500mm

Working Speed:

15-30 M/min

Loading Weigth:

1500 Kg

Power:

5KW

Thickness Of Material:

0.3-2.0 Mm

Material Of Roller:

45# Forged Steel

Voltage:

380 V/415 V

Automatic Grade:

Automatic

Highlight:

5T Hydraulic Decoiler

10T Hydraulic Decoiler

Automatic Double Head Decoiler

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

20 ' FLC

Delivery Time

20 Working Days

Payment Terms

T/T, Western Union, L/C, D/A, D/P

Supply Ability

100 Sets Per Month

1200mm Width 3-6mm Steel Coil High Speed Slitting Production Line Machine With Hydraulic Uncoiler And Recoiler

Get Best Price

Video

High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

Get Best Price

Video

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Get Best Price

Video

Low Noise Coil Cut To Length Line Energy Saving Cut To Length Line Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

Customized Automatic Double Head Steel Coil Hydraulic 5T 10T Decoiler

Customized Automatic Double Head Steel Coil Hydraulic 5T 10T Decoiler production line . The fuction of hydraulic decoiler machine is save labor and make the work more efficiency. Usually most of decoilers can be only suitable for 1250mm width. We adopt 5.5KW electric motor to rotate the shaft, it can decoil automatically, it speed up the whole production line.

Specification

Material Thickness	0.3-2.0 mm
Working Speed	15-30m/min
Roller Stations	12 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Electrical Hydraulic Station Power	5KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Advantages

1.The load-bearing main shaft adopts high-strength and fatigue-resistant rear wall seamless steel,which is formed by turning and has strong strength and great bearing capacity.

2.The volume is hydraulically controlled, convenient, fast and stable.

3.Electrical control, high precision, good automation, inverter control, speed can be adjusted.

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
