Name: Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: cut to length
Price: 26,500.00 USD
Availability: InStock

Home > Products > Cut To Length And Slitting Line >

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

steel metal coil leveling machine

heavy thickness PPGI cut to length

1200mm width coil leveling line

Place of Origin:

CHINA

Brand Name:

CANGZHOU FMS

Certification:

ISO, CE

Model Number:

cut to length

Request A Quote

Product Details

Product Name:

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

Cutting Material:

Cr12Mov

Material Thickness:

0.8mm -1.5mm

Working Speed:

8m/min - 20 M/min

Coil Weight:

5 Tons / 7 Tons / 10 Tons/15tons

Machine Weight:

13000 KG

Cutting Tolerance:

±2 Mm

Highlight:

steel metal coil leveling machine

heavy thickness PPGI cut to length

1200mm width coil leveling line

Payment & Shipping Terms

Minimum Order Quantity

1 Set Production Line

Price

Negotiable

Packaging Details

2 Pcs 40' FLC

Delivery Time

60 Working Days

Payment Terms

L/C, D/A, D/P, T/T

Supply Ability

5 Sets Per 60 Days

steel coile 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Get Best Price

Video

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Get Best Price

Video

380v 50hz High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

Get Best Price

Video

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Get Best Price

86-317-2016816

Contact Now

Product Description

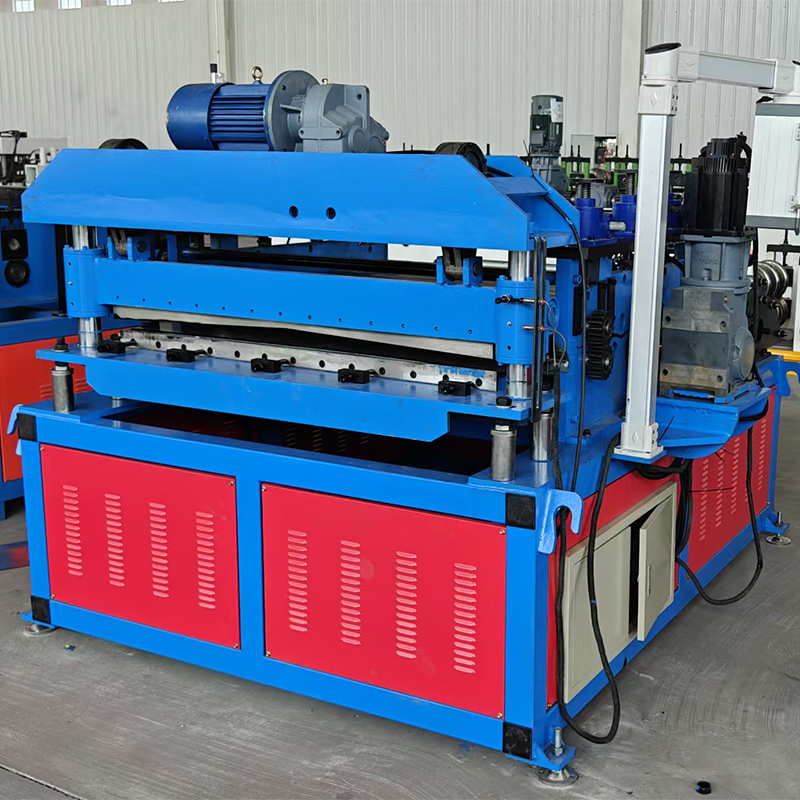

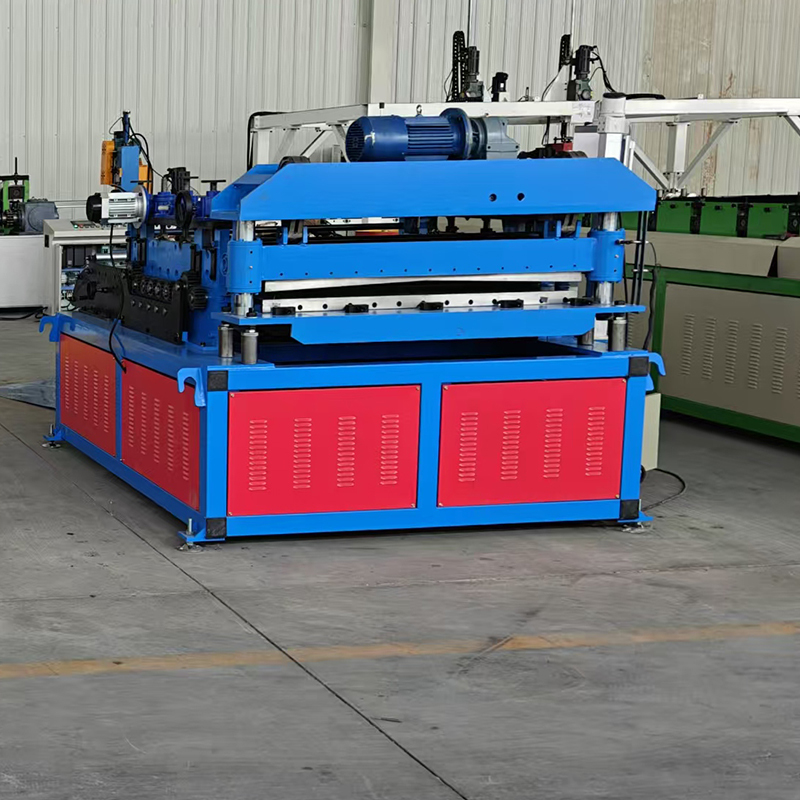

Steel Metal Heavy Thickness Coil Leveling 1.5mm 1200mm PPGI Cut To Length

Product Description

Multi-Function Metal Coil Leveling Slitting And Cut To Length

Steel Coil Cutting-to-Length Lines are integrated systems of machinery designed to process large, master coils of steel into flat sheets. This process is fundamental in metal manufacturing, transforming coiled raw material into ready-to-use flat products for various industries.

These highly automated lines handle the three primary functions: uncoiling, levelling (straightening), and cutting.

Specifications

No.	Item	Description
Main Specification
1	Raw Material	Galvanized, Aluminum, Color steel, Hardness 235MPa - 485MPa
2	Raw Material Thickness	0.2 mm - 3.0 mm
3	Raw Material Width	600 mm - 1600 mm
4	Tape Inner Diameter	φ 480 mm - φ 530 mm
5	Tape Outer Diameter	φ 1600 mm
6	Coil Weight	5 tons - 10 tons
7	Brand	FMS
8	The Highest Slitting Line Speed	8 m/min - 30 m/min
9	Minimum Cutting Line Width	35 mm
10	Cutting Width Precision	± 0.01 - ± 0.05 mm
11	Rated Operational Voltage	380 V, 3 Phase, 60 Hz
12	Total Weight	14000 KG
13	Working Space (L*W)	20000 mm * 6000 mm
Decoiler Machine Specification
1	Tape Outer Diameter	Max φ 1600 mm
2	Tape Width	600 mm - 1600 mm
3	Tape Inner Diameter	φ 480 mm - φ 530 mm
4	Coil Weight	5 /7/10 tons
5	Max Working Speed	8 m/min - 30 m/min
6	Tape Tight Range	φ 480 mm - φ 530 mm
7	Shaft Diameter	φ180 mm
8	Roller Effective Length	1600 mm
9	Drive Motor Power	5 KW
10	Loading Car Diameter	φ 700 mm - φ 1500 mm
11	Loading Car Weight	5 /7/ 10 tons
12	Car Speed	About 4 m/min

Application

Used to cut the big coils into different width coils. The thickness can be 0.3-3mm GI PPGI, with a working speed that can reach 40 meters per minute. Maximum width of steel coils can be 1250mm.

Advantage

Cangzhou Famous Cold Roll Forming Machinery is a professional manufacturer and exporter that specializes in the design, development and production of cold roll forming machines.

Located in Botou City, all products comply with international quality standards and are greatly appreciated in various markets throughout the world, including Asia, Africa, Europe, South America, and Australia.
