Product Details:
Payment & Shipping Terms:
|
| Product Name: | Customized Automatic Metal Strip 50*50 L Angle Steel Cold Roll Forming Machine For America | Dimension(L*W*H): | 5800x1400x1600mm |
|---|---|---|---|
| Roller Material: | 45# Forged Steel | Working Speed: | 20 - 40 M/min |
| Cutting Blade Material: | Cr 12 High Grade Steel | Feeding Width: | 100mm |
| Motor Power: | 25KW | Weight: | 4500kg |
| Voltage: | 380V/50HZ 3Phase(as Customer's Request) | Material Thickness: | 0.4-0.8mm |
| High Light: | 40m/min Cold Roll Forming Machine,Angle Steel Cold Roll Forming Machine,Metal Strip Cold Roll Forming Machine |
||

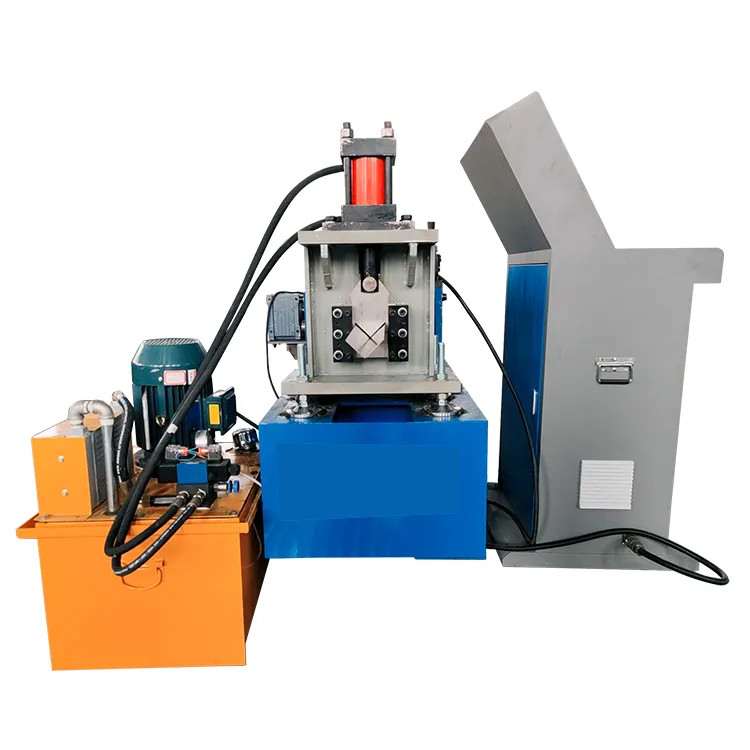

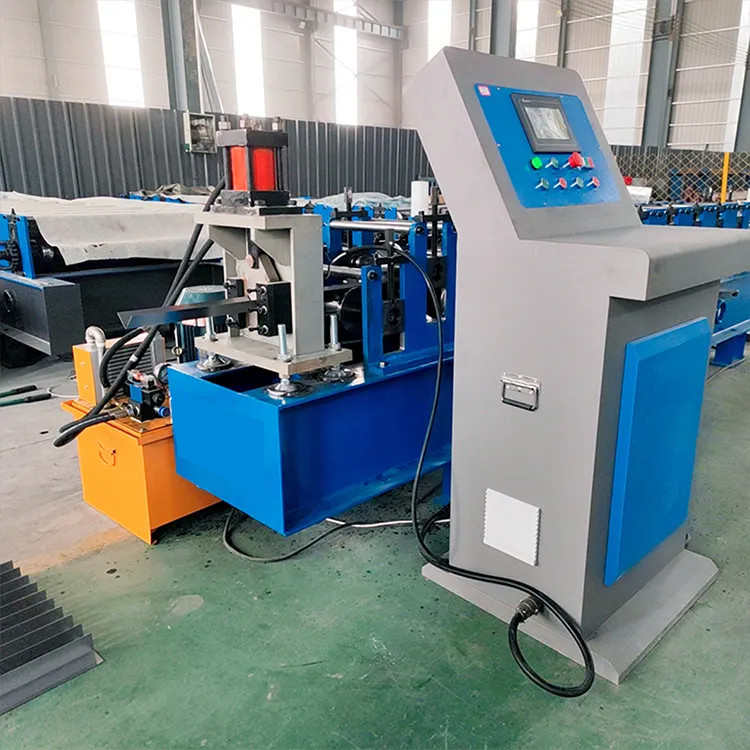

Customized Automatic Metal Strip 50*50 L Angle Steel Cold Roll Forming Machine For America
Customized Automatic Metal Strip 50*50 L Angle Steel Cold Roll Forming Machine For America.Angle bead roll forming machine | Corner bead production line | Metal angle bead machine | Corner bead roll forming machine | V shape roll forming machine | Steel wall angle bar roll forming machine

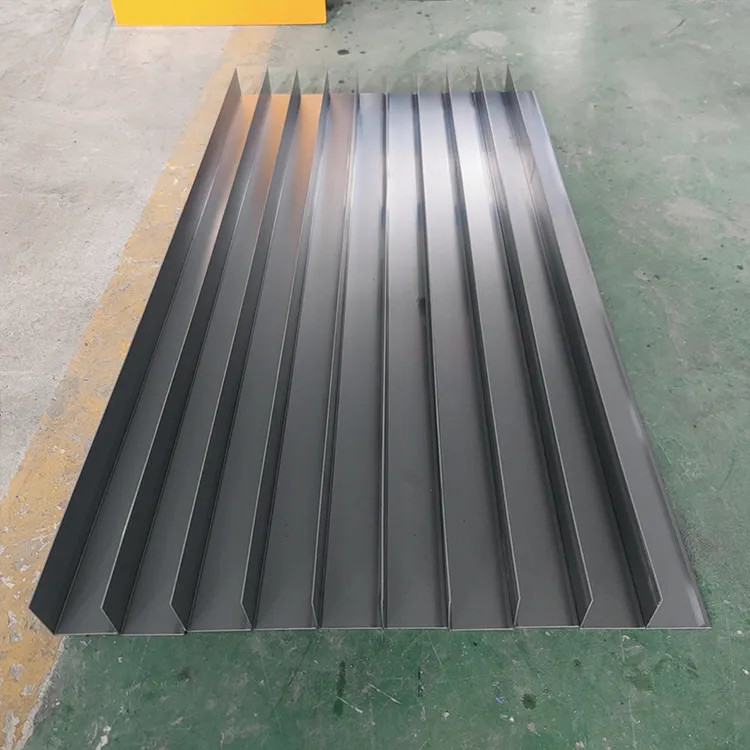

Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 30*30 mm, 40*40 mm,50*50 mm. Product thickness common between 1-3 mm,
Specification
| Customized Automatic Metal Strip 50*50 L Angle Steel Cold Roll Forming Machine For America | |
| Material thickness | 0.3-0.8mm |
| Diameter of shaft(solid shaft) | 70mm |
| Material of shaft (solid shaft) | (high grade) 45# Steel, quenching and tempering treatment |
| Material of roller | 45# steel polished and coated with chrome HRC55-60° |
| Reducer | 8# cycloid reducer (high grade) |
| Cutting | hydraulic cutting after roll forming |
| Control system | PLC Frequency Control System with touch screen |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
