Name: Omega Sheet Metal Roll Forming Machine Fully Automated
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Stud and Track
Price: 40,500.00 USD
Availability: InStock

Home > products > Stud And Track Roll Forming Machine >

Omega Sheet Metal Roll Forming Machine Fully Automated

Fully Automated Metal Roll Forming Machine

Omega Sheet Metal Roll Forming Machine

40m/min Metal Roll Forming Machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Stud and Track

Request A Quote

Product Details

Product Name:

Omega Sheet Metal Roll Forming Line Machine Fully Automated

Dimension(L*W*H):

5*1.5*1.8m

Raw Material:

Galvalume, Galvanized

Working Speed:

20 - 40 M/min

Cutting Blade Material:

Cr 12 High Grade Steel

Feeding Width:

100mm

Motor Power:

4KW

Weight:

3000 Kg

Voltage:

380V/50HZ 3Phase(as Customer's Request)

Material Thickness:

0.4-0.8mm

Highlight:

Fully Automated Metal Roll Forming Machine

Omega Sheet Metal Roll Forming Machine

40m/min Metal Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

20' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control

Get Best Price

Video

Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness

Get Best Price

Video

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Get Best Price

Video

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness

Get Best Price

86-317-2016816

Contact Now

Product Description

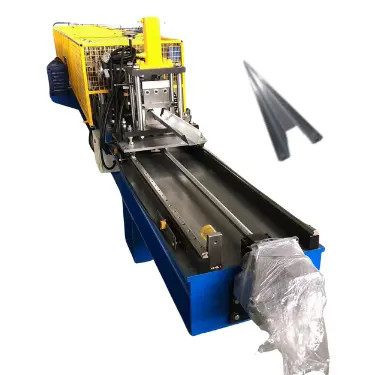

Omega Sheet Metal Roll Forming Line Machine Fully Automated

Omega Sheet Metal Roll Forming Line Machine Fully AutomatedMetal framings used in concealed grid gypsum ceiling of light weight structure include furring channel, carrying channel, studs,tracks, wall angle, and main frame channel.

Optional: Embossing logos on the frames is a great way that most of our customers choose to impress their customers about their brands.

Specification

Description	Explaination
Working speed	10-20 m/min(Shear time is not included)
Pressed plate thickness	0.3-1mm
Control mode	Panasonic PLC

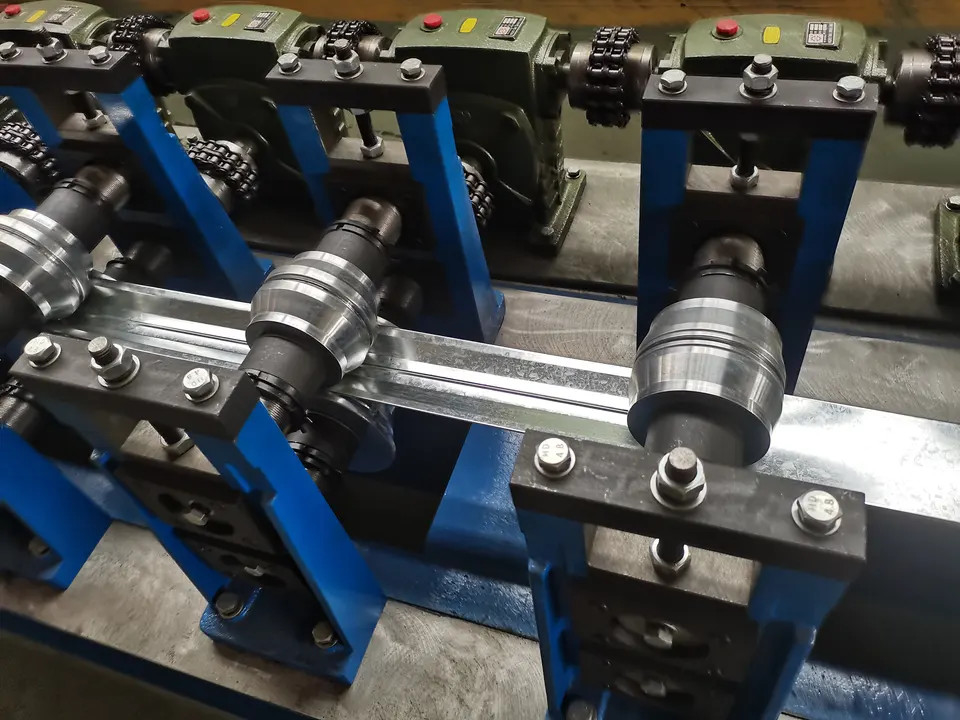

Number of molding passes	18 lanes [Electric width adjustment]
Roll material	Gcr15 quenching of steel after finishing HRC58-62℃,surface chrome plating
Shaft material and diameter	45# Steel finishing,Shaft diameter is￠76mm
Main engine power	5.5kw
Power of hydraulic station	3kw
Hydraulic pressure	12Mpa
Scissors material	Cr12Mov, quench HRC 58-62℃
Length tolerance	3m±1.5mm
Voltage	380V, 50HZ,3 phase(According to customer requirements can be adjusted)
Transmission mode	1.0 inch double row chain
Equipment form	Card structure
Equipment color	Company color
Equipment size	LWH--11.5m1.6m1. 2m
Date of delivery	80 days
Payment method	30% advance charge,70% pay off on delivery

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
