Name: Auto Line Electric Double Head Decoiler 360 Degree Rotation
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 5T- Auto Hydraulic Decoiler With Car
Price: 26,500.00 USD
Availability: InStock

Home > products > Cut To Length And Slitting Line >

Auto Line Electric Double Head Decoiler 360 Degree Rotation

Auto Line Electric Decoiler Forming Machine

50 m/min Double Head Decoiler

360 Degree Rotation Double Head Decoiler

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

5T- Auto Hydraulic Decoiler With Car

Request A Quote

Product Details

Product Name:

Auto Line Electric Decoiler Forming Machine Stacker Double Head Decoiler

Suitable Material:

Strip Steel, GI, PPGI, AL

Dimension(L*W*H):

11000 Mm *1300 Mm X 1350 Mm

Material Expand Axis:

200-600 Mm

Working Speed:

50 M/min

Loading Weigth:

1500 Kg

Power:

4KW

Thickness Of Material:

0.5-2.0 Mm

Material Of Roller:

45# Forged Steel

Voltage:

380 V/415 V

Highlight:

Auto Line Electric Decoiler Forming Machine

50 m/min Double Head Decoiler

360 Degree Rotation Double Head Decoiler

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

20 ' FLC

Delivery Time

20 Working Days

Payment Terms

T/T, Western Union, L/C, D/A, D/P

Supply Ability

100 Sets Per Month

1200mm Width 3-6mm Steel Coil High Speed Slitting Production Line Machine With Hydraulic Uncoiler And Recoiler

Get Best Price

Video

High Speed Steel Coil Slitter Slitting Producttion Line Machine With Hydraulic Uncoiler And Recoiler

Get Best Price

Video

High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Get Best Price

Video

Low Noise Coil Cut To Length Line Energy Saving Cut To Length Line Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

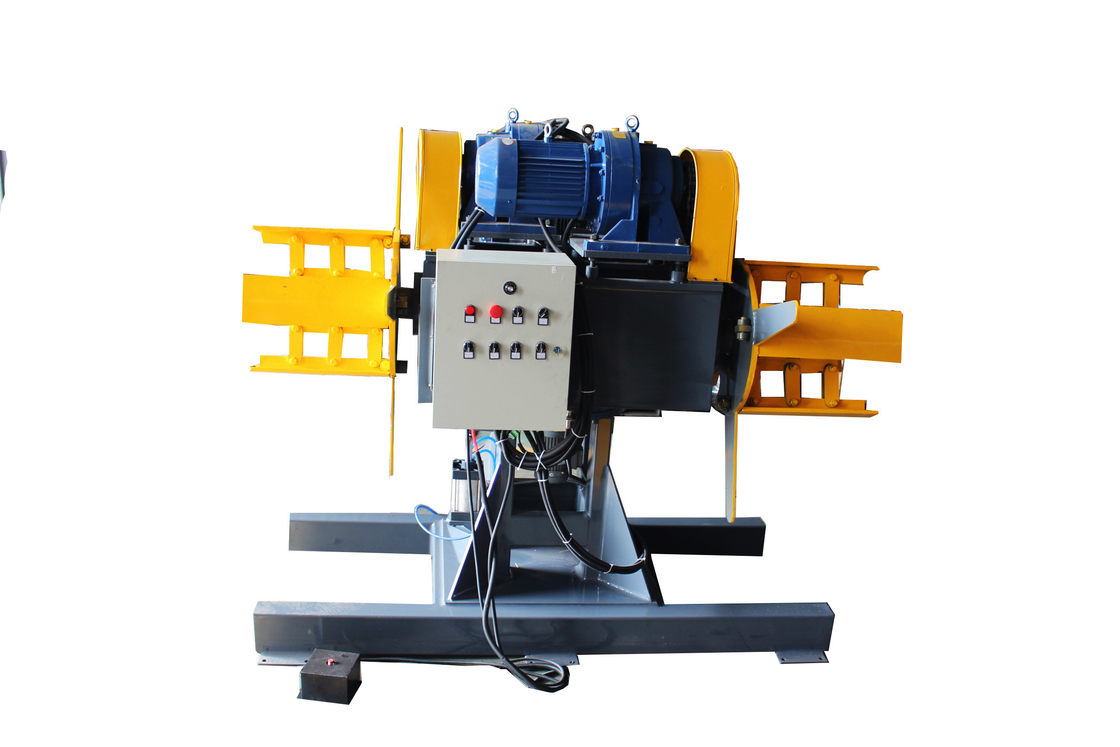

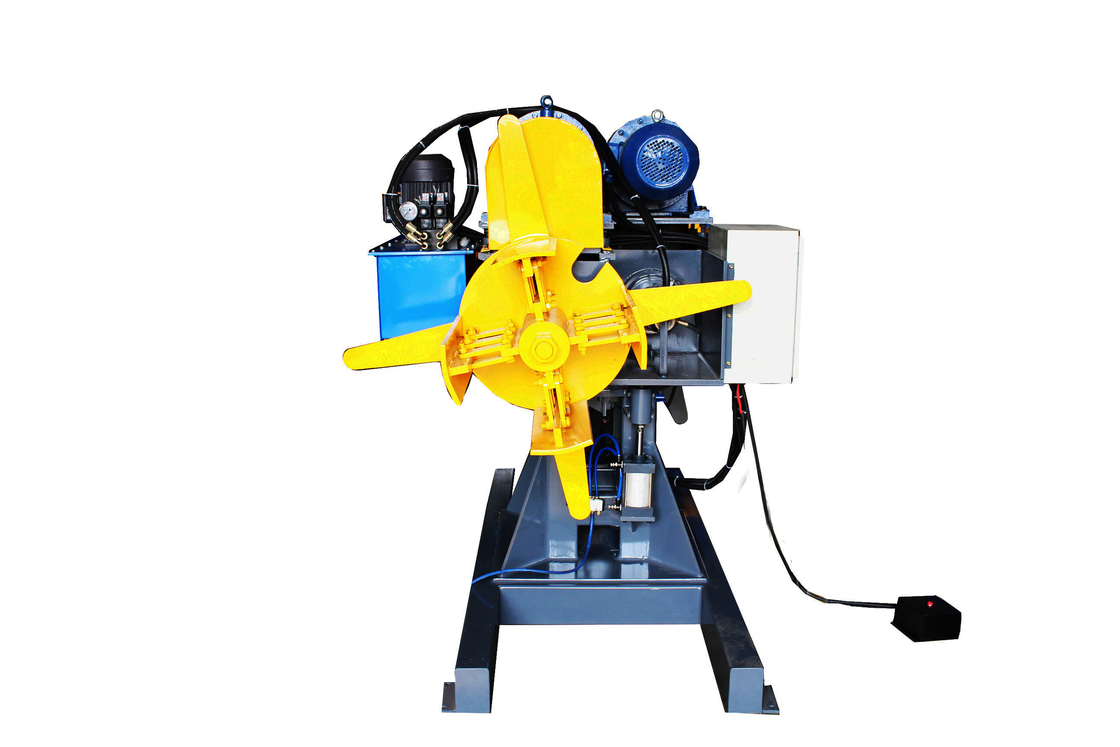

Auto Line Electric Decoiler Forming Machine Stacker Double Head Decoiler

Auto Line Electric Decoiler Forming Machine Stacker Double Head Decoiler 360 degree rotation. used to support the steel coil and provide tension to the steel belt. It is an uncoiler composed of a frame, a main shaft, a telescopic drum and a braking device. The roll material of the hydraulic automatic decoiler rolls freely on the movable shaft seat of the left and right boxes to open the roll material. The steel plate advances to the leveling machine on the conveyor frame, which is the first process of the leveling machine.

Specification

Material Thickness	0.5-2.0 mm
Working Speed	0-50m/min
Roller Stations	12 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	18.5 KW
Electrical Hydraulic Station Power	7.5 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Advantages

1.The load-bearing main shaft adopts high-strength and fatigue-resistant rear wall seamless steel,which is formed by turning and has strong strength and great bearing capacity.

2.The volume is hydraulically controlled, convenient, fast and stable.

3.Electrical control, high precision, good automation, inverter control, speed can be adjusted.

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
