| Product Name: | High Quality Shearing Line With Cut To Length Line Machine Steel Coil Cutting Machine | Line Speed: | 20-40m/min |
|---|---|---|---|
| Cutting Width (mm): | 500 - 1500 Mm | Dimension(L*W*H): | 10*2*2.6m |
| Raw Material Thickness: | 0.3-1.0mm | Power(W): | 40 Kw |
| Weight: | 5T | Voltage: | 380v/50hz/3ph |
| Cutting Speed(m/min)l Width:: | 0 - 25 Mm | Thickness: | 0.2-0.8mm |
| High Light: | Steel Coil Cutting Machine 40kw,Cut To Length Line Machine 40kw,ISO Steel Coil Cutting Machine |
||

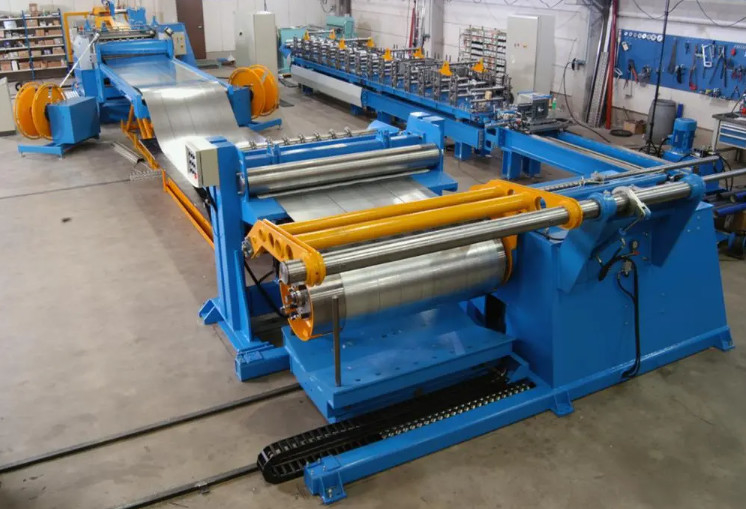

High Quality Shearing Line With Cut To Length Line Machine Steel Coil Cutting Machine
Coil machine cutting line is a lengthway cutting line for devide the metal coil into several strips.First,slitting line will uncoil the coil with a decoiler, then cut the metal sheet longitudinal.Next, the tension stand can separating the steel coil to adapt the recoiler.That can make the steel coil has back pull power.In the end, the strips can be recoil into the recoiler system.
The slitting cutter slitts lineprocess of slitting line : It is restricted to cutting relatively thin metal materials. It can involve both ferrous and nonferrous metals. Generally requires a high quality production tool to assure consistentquality in controlling metal width. Slitting blades are designed depending on the job required. The three critical determinants of slitting cutter slitts lineinclude on slitting line : •The work piece material thickness •The type of material to be slit •The tolerances that must be held while slitting. Now we also have one quite simply slitting machine, you need to make it work manuully. This set of slitting machine is suit for low amount of work. And the price for this machine is quite cheap.
Specifications
|
High Quality Shearing Line With Cut To Length Line Machine Steel Coil Cutting Machine
|
||||
|
1.Usage
|
It can involve both ferrous and nonferrous metals.
Generally requires a high quality production tool to assure consistent quality in controlling metal width.
|
|||
|
2.Formed Material
|
PPGI,GI,AI, carbon steel
|
Thickness:0.5-2mm
|
||
|
3.Decoiler
|
Hydraulic decoiler
|
Hydraulic decoiler with loading car
|
||
|
4.Cutter shaft diameter
|
Φ 150 mm
|
|||
|
5.Cutter shaft material
|
40 Cr with tempering treatment
|
|||
|
6. Cutter material
|
9CrSi
|
|||
|
7. Slitting precision
|
≤±0.05 mm
|
|||
|
8.slitting width strips
|
The number and width adjustable on this one machine.
|
|||
|
9.control system
|
PLC control system full automatic easy operation.
|
|||
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.
