Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cut To Length Machine And Slitting Line Steel Coil Cut To Length Line | Cutting Speed(m/min): | 8 - 15 M/min |
|---|---|---|---|
| Cutting Width (mm): | 150 - 300 Mm | Dimension(L*W*H): | 300*150*1502mm |
| Raw Material Thickness: | 0.3-1.0mm | Power(W): | 15 Kw |
| Weight: | 3T | Key Selling Points: | Automatic |
| Raw Material Width:: | 600-1500mm | Control: | PLC Control |
| High Light: | Steel Coil Cut To Length Line 15kw,15m/Min Steel Coil Cut To Length Line,steel cut to length line PLC Control |
||

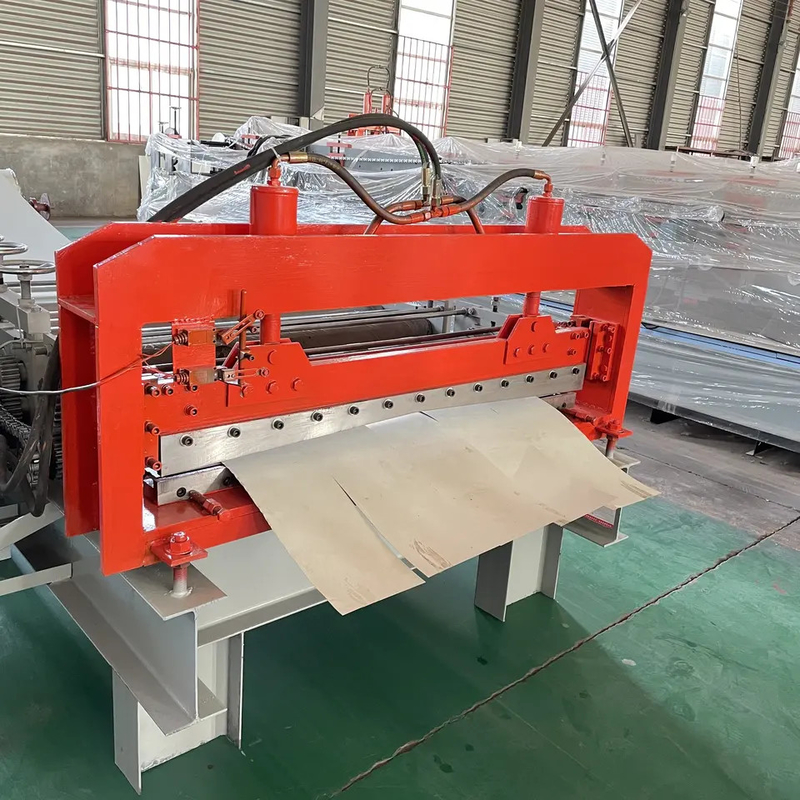

Cut To Length Machine And Slitting Line Steel Coil Cut To Length Line

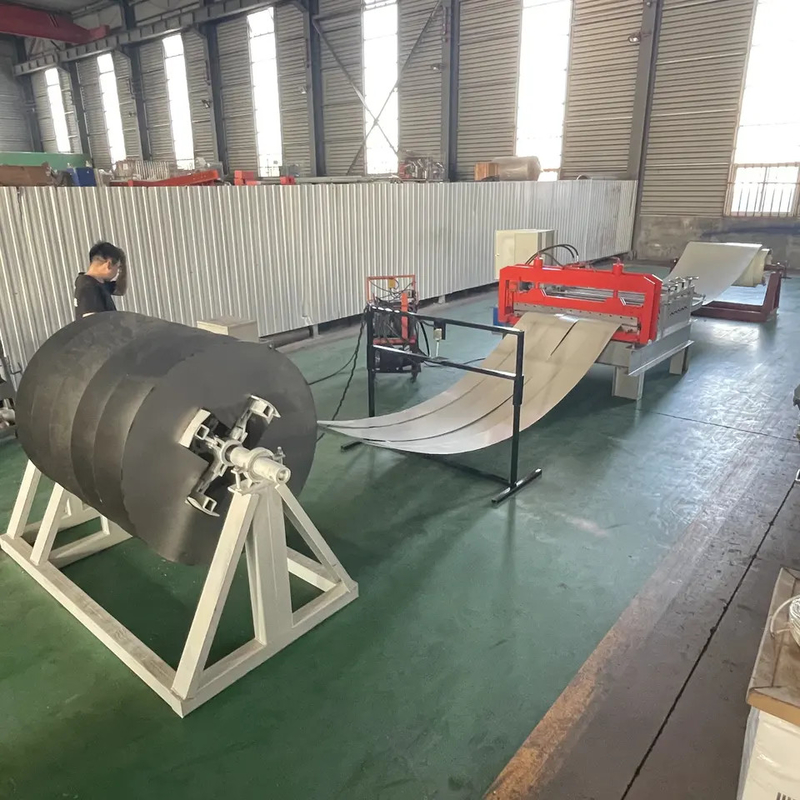

Cut To Length Machine And Slitting Line Steel Coil Cut To Length Line consists of three main parts: a decoiler, a slitter, and a rewinder. Metal sheets or strips suppliers always need slitting and cut to length machine line for the production of metal sheets with different widths or lengths from GI, PPGI, or Stainless coils in large quantities.GI, PPGI or Stainless coils are always brought to make wide metal sheets, like roll formed roofing or wall panels, while there are many occasions narrow steel strips are necessary, for example, the production of stud and tracks, roof battens or angle steel bars is always made from narrow steel strips.A steel mill most of time produces only wide steel coils, and steel or metal fabricators always use a slitting and cut to length machine line to manufacture steel strips with different widths or metal sheets with fixed lengths.
Specifications
|
Machine Type
|
Cut To Length Machine Steel Coil Cut To Length Line
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Motor, Gear
|
|
|
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
|
|
Key Selling Points
|
Automatic
|
|
After Warranty Service
|
Video technical support, Online support, Spare parts, Field maintenance and repair service
|
|
Local Service Location
|
None
|
|
Applicable Industries
|
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
|
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
|
raw material width
|
600-1500mm
|
|
control
|
PLC control
|
|
raw material thickness
|
0.3-1.0mm
|
|
Power(W)
|
15 kw
|
|
Weight
|
8T
|
|
Product name
|
automatic slitting machine
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.
