High Speed Stud And Track Roll Forming Machine With Flying Cutting System

High Speed Stud And Track Roll Forming Machine With Flying Cutting System

20m/min Stud Roll Forming Machine

High Speed Stud Roll Forming Machine

30m/min Stud Roll Forming Machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Stud and Track

Contact Us
Request A Quote
High Speed Stud And Track Roll Forming Machine With Flying Cutting System
High Speed Stud And Track Roll Forming Machine With Flying Cutting System High Speed Stud And Track Roll Forming Machine With Flying Cutting System High Speed Stud And Track Roll Forming Machine With Flying Cutting System
Product Details
Product Name:
High Speed Stud And Track Roll Forming Machine With Flying Cutting System
Dimension(L*W*H):
5500 Mm*1000 Mm*1500 Mm
Raw Material:
Galvalume, Galvanized
Working Speed:
20 M/min - 30 M/min
Color:
Customzied
Delivery:
30 Working Days
Motor Power:
4KW
Container Load:
20 Feet
Pow Supply:
380V, 60Hz, 3Ph
Profile:
As Customer Requested
Highlight:

20m/min Stud Roll Forming Machine

,

High Speed Stud Roll Forming Machine

,

30m/min Stud Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control online Video

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control

Get Best Price
Good price Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness online Video

Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness

Get Best Price
Good price Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ online Video

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Get Best Price
Good price Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness online Video

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

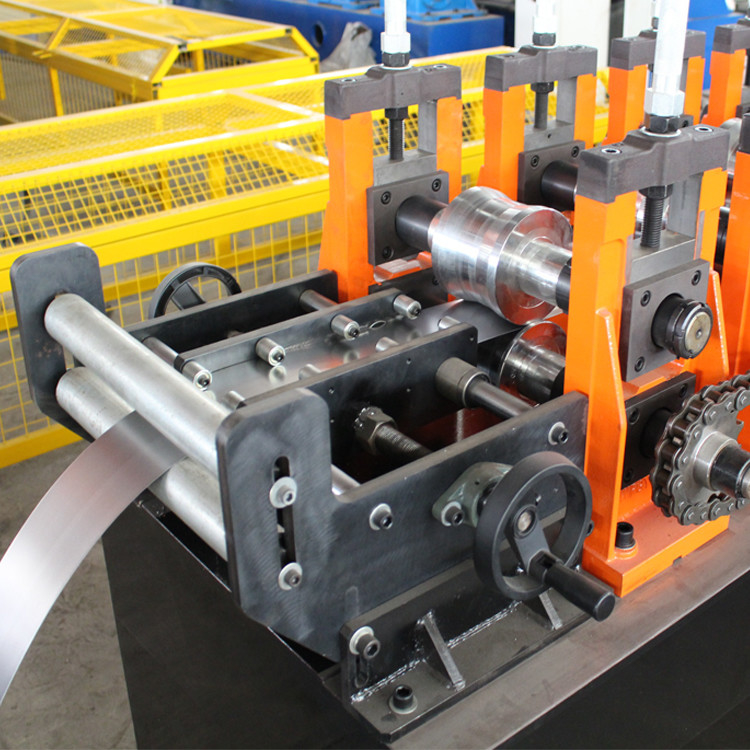

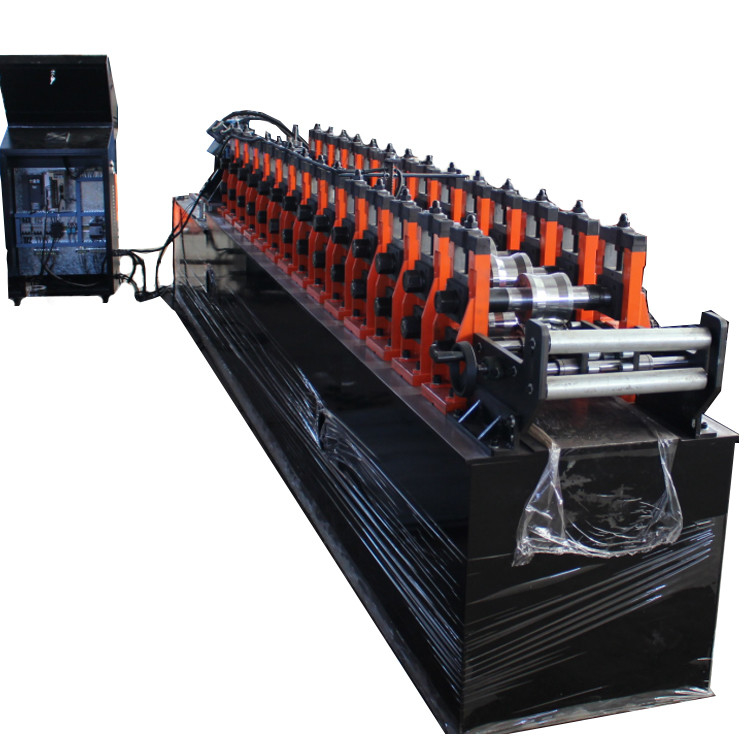

High speed Stud And Track Roll Forming Machine with flying cutting system



The stud and track is suitable for use in commercial and domestic buildings where it is necessary to provide strong non-load-bearing partitions.
There is a wide range of partition thickness available for heights of up to 12m. The system is economical and can be erected easily. When installing the system, it is advisable to use and electrically or battery-operated screw gun. It is necessary to ensure that electric cables can pass through the studs that are protected by grommets.





Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.4-0.6mm
3 Working Speed 20-40 m/min
4 Roller Station 12 Raws
5

Dimension (L*W*H)

 5800 mm*1000 mm*1500 mm
6 Machine Weight 2000 KG
7

Electrical Control System

Delta PLC (can be customized)
8

Drive Motor Power

 4 KW
9

Hydraulic Station Power

 4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Advantage



The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.



Payment terms



30% in advance as down payment

70% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
