Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stud And Track Channel Light Steel Roll Forming Machine For Drywall And Ceiling | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Production Capacity: | 10-20m/min | Cutting Type: | Hydraulic Cutting |
| Cutting Blade Material: | Cr 12 High Grade Steel | Dimension(L*W*H): | 8000*800*1000 Mm |
| Raw Materials Thickness: | 0.3-0.8mm | Control System: | PLC(Delta Brand) |
| Power: | 5 Kw | Weight: | 4000 Kg |
| High Light: | 20m/min Light Steel Roll Forming Machine,Drywall Steel Roll Forming Machine,Ceiling Steel Roll Forming Machine |
||

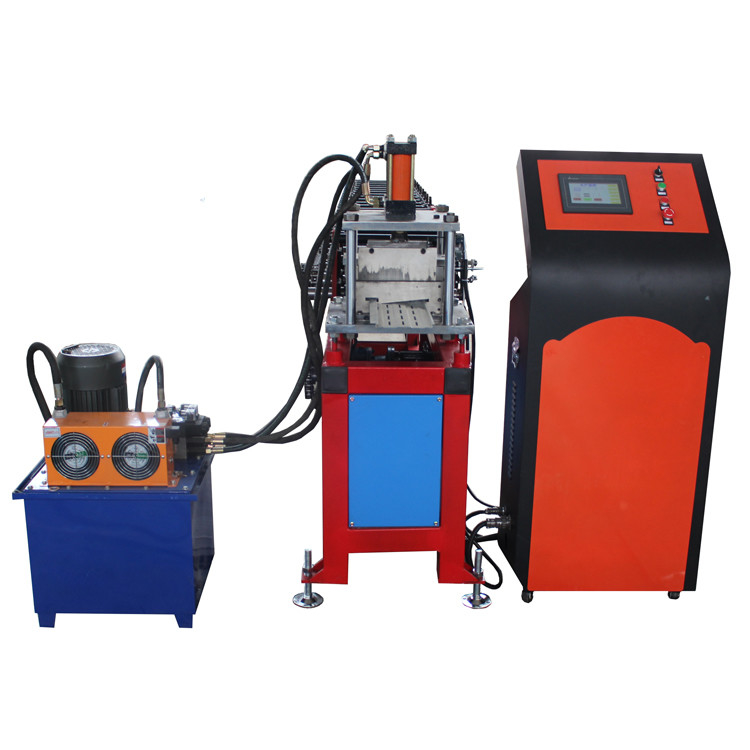

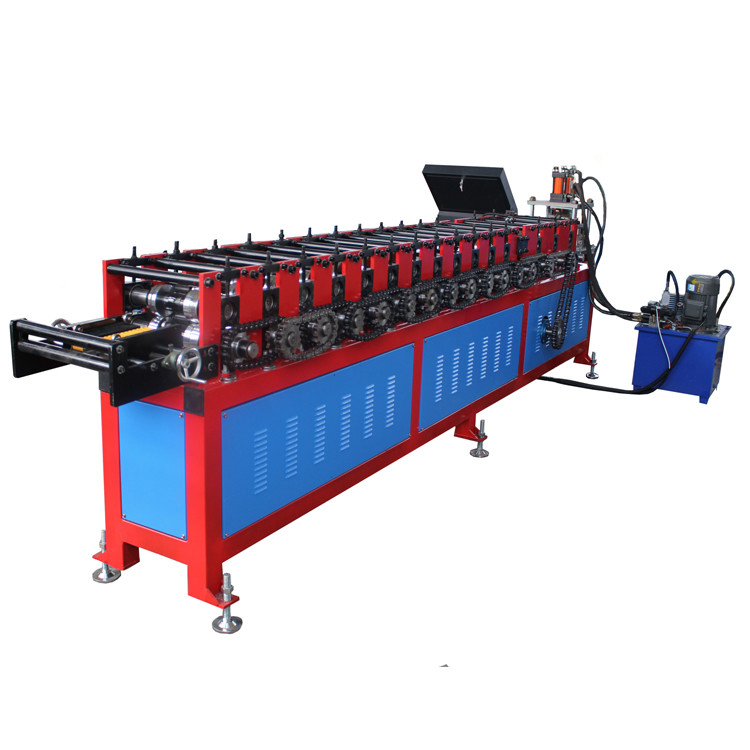

Stud And Track Channel Light Steel Roll Forming Machine For Drywall And Ceiling
Stud And Track Channel Light Steel Roll Forming Machine For Drywall And Ceiling,usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables. , can make stud and track , omega , angle , ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .
Specification
|
Specifications for reference
|
|
|

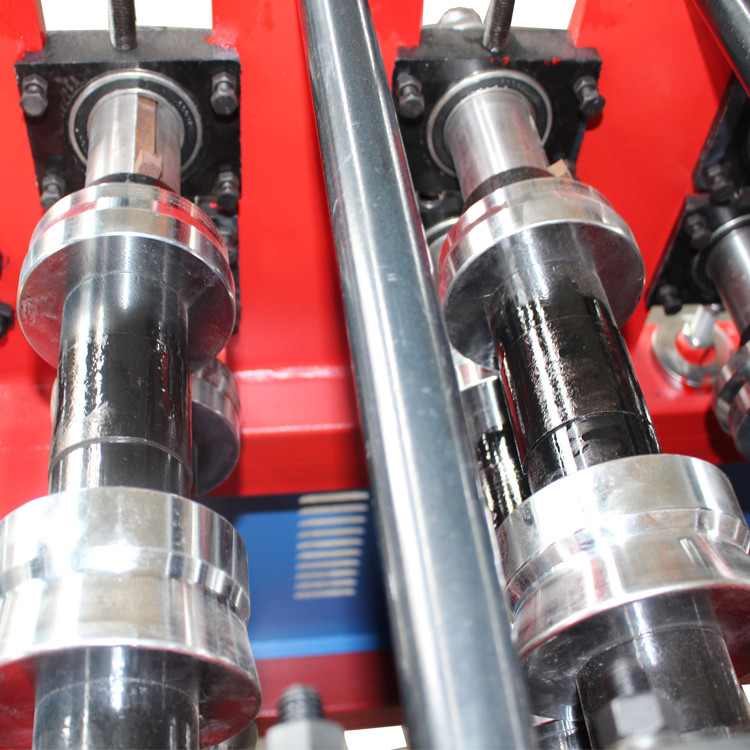

Material of Shaft
|
70 mm 45#steel forged
|
|
13.0Material Thickness
|
0.3-0.8 mm
|
| Voltage | 380V/50HZ 3 Phase(as Customer's Request) |
| Cutting type | Hydraulic Cutting |
|
Working Speed
|
10-20 m/min
|
|
Main Motor Power
|
5 KW
|
|
Electrical Hydraulic Station Power
|
3 KW
|
|
Hydraulic Station Pressure
|
12.0 Mpa
|
|
Roller Station
|
14 Raws
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
