| Product Name: | Mini Iron Sheet Slitter Cutter Machine Slitting And Cut To Length Line | Production Capacity: | 5Automatic Cutting |
|---|---|---|---|
| Warranty Of Core Components: | 1 Year | Voltage: | 380 V/415 V |
| Dimensions (L X W X H): | 2.0 M X 1.8 M X 1.6 M | Electric Power: | 5.5 KW – 22 KW |
| Power: | 18.5 KW | Thickness Of Material: | 0.5-2.0 Mm |
| High Light: | Mini Slitter Cutter Machine,Iron Sheet Mini Slitting Machine,Iron Sheet Slitter Cutter Machine |
||

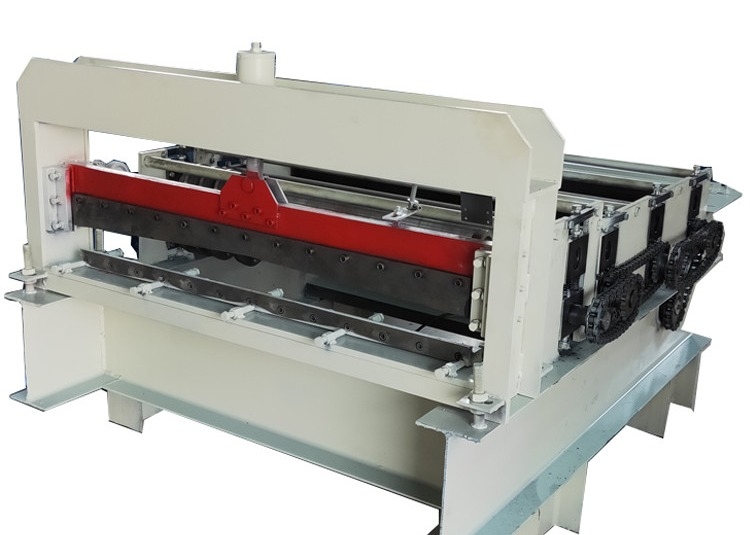

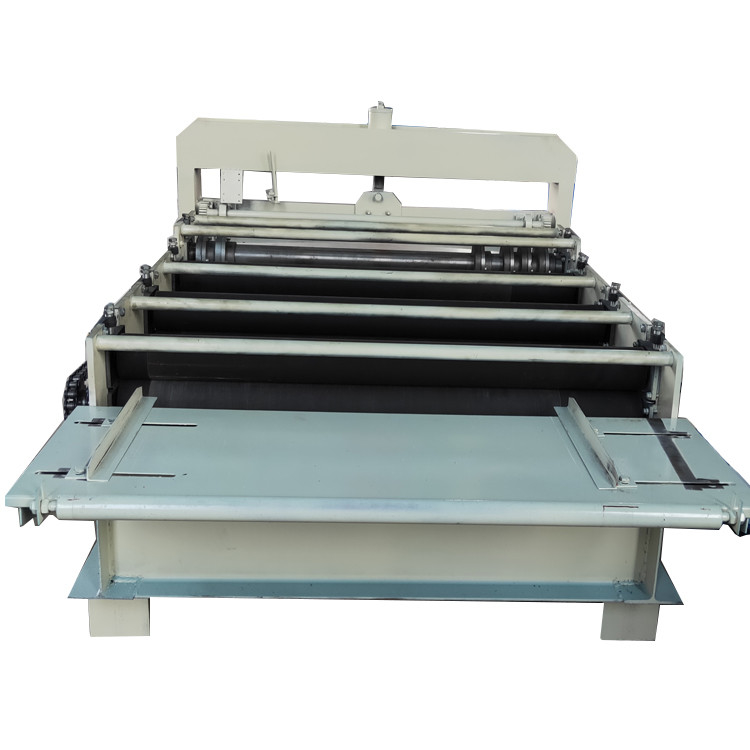

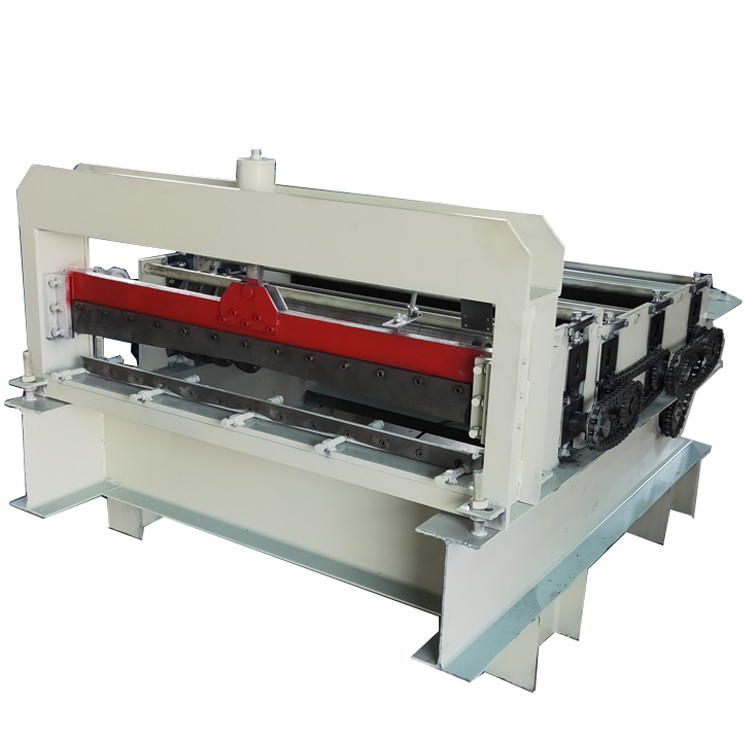

Mini Iron Sheet Slitter Cutter Machine Slitting And Cut To Length Line
|
SPECIFICATIONS FOR Mini Iron Sheet Slitter Cutter Machine Slitting And Cut To Length Line
|
|||
|
Machine specification
|
Electric power (3 phase, 50 Hz, 380 V)
|
Kw
|
5.5 kW – 22 kW
|
|
Machine Dimensions
|
m
|
2.0 m x 1.8 m x 1.6 m
|
|
|
Raw material
|
Steel Thickness (BMT)
|
mm
|
0.2 mm – 5.0 mm
|
|
Coil Width
|
mm
|
1200
|
|
|
Material Strength
|
|
G300–G550
|
|
|
Production specification
|
Forming speed
|
m/min
|
6 – 24 m/min
|
|
Control system
|
|
PLC, HMI, Gearmotor
|
|
|
Rolling transmission & Cutting system
|
|
by Hydraulic
|
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received
