Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Efficiency Metal Color Steel Cut To Length And Slitting Machine Line | Production Capacity: | 50 M/min |
|---|---|---|---|
| Warranty Of Core Components: | 1 Year | Voltage: | 380 V/415 V |
| Dimensions (L X W X H): | 11000 Mm *1300 Mm X 1350 Mm | Machine Weight: | 2-3 Tons |
| Power: | 18.5 KW | Thickness Of Material: | 0.5-2.0 Mm |
| High Light: | 50m/min Mini Slitting Machine,Metal Color Steel Mini Slitting Machine,Slitting And Cut To Length Line |
||

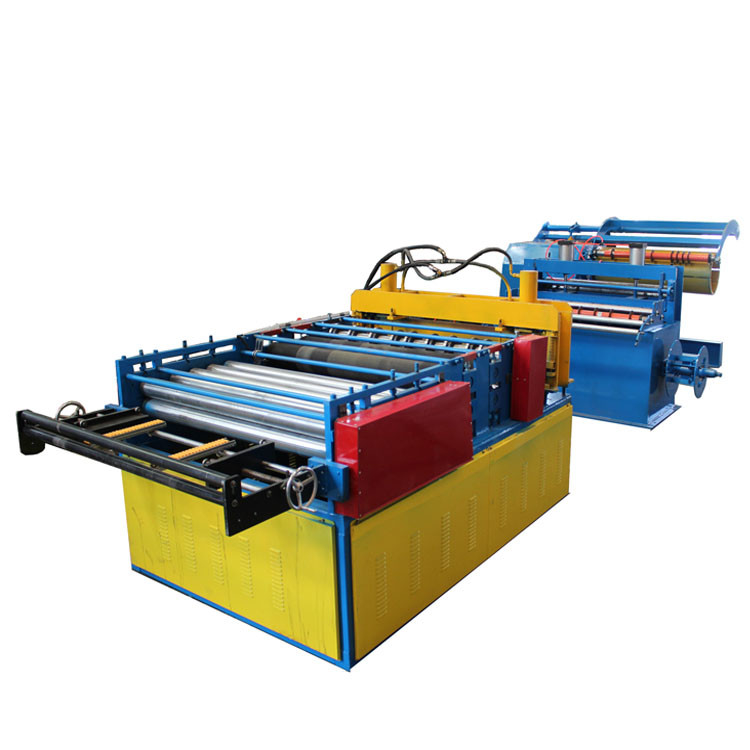

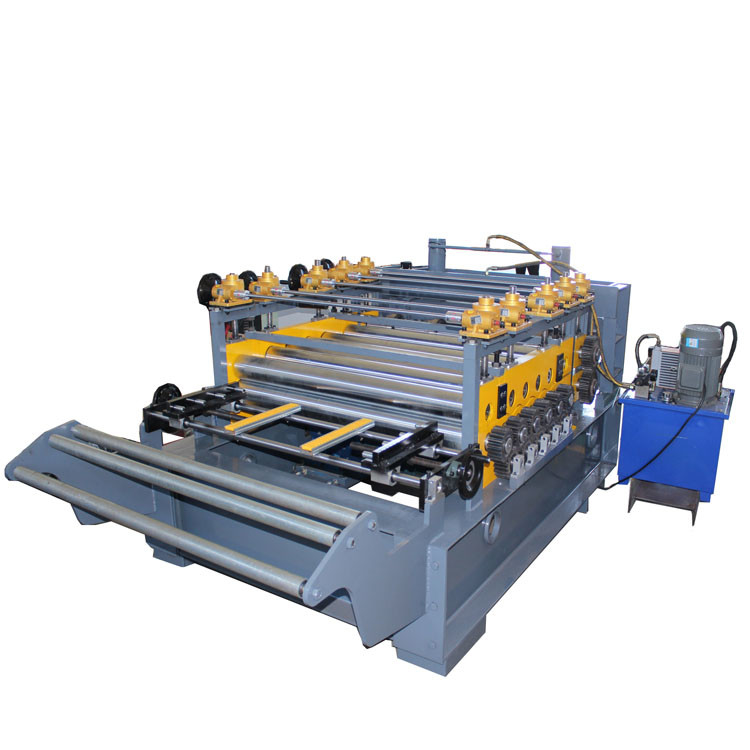

High Efficiency Metal Color Steel Cut To Length And Slitting Machine Line
|
Material Thickness
|
0.5-2.0 mm
|
|
Working Speed
|
0-50m/min
|
|

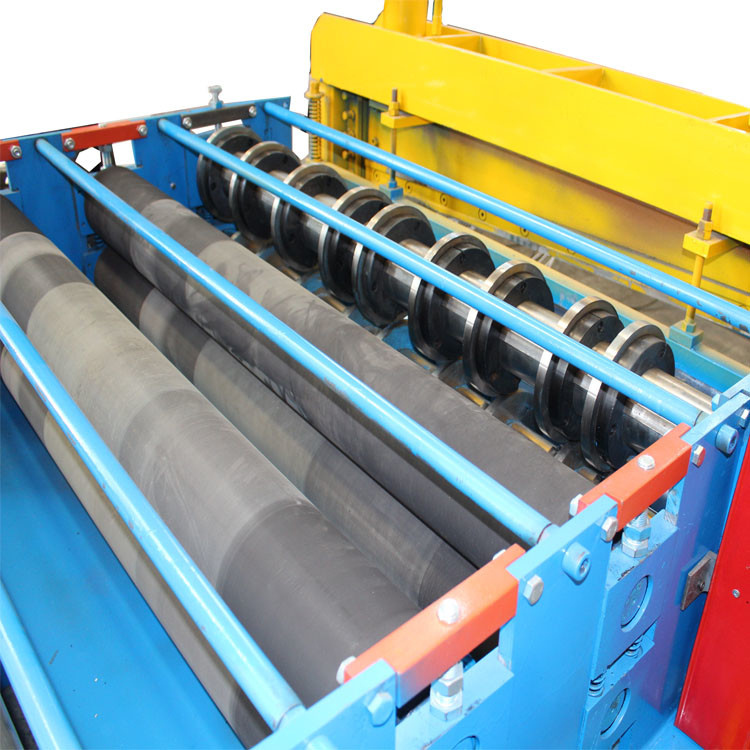

Roller Stations
|
12 stations
|
|
Material of Roller
|
45# steel quenching process and chrome coated
|
|
Material of Main Shaft
|
45 steel forged
|
|
Main Motor Power
|
18.5 KW
|
|
Electrical Hydraulic Station Power
|
7.5 KW
|
|
Hydraulic Station Pressure
|
12.0 Mpa
|
|
Material of Cutter
|
Cr12 Mov HRC 58-62
|
|
Driving Mode
|
Single chain 1 inch
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
