| Product Name: | Color Steel Slitting Cutting Machine Line 0.2 - 3.0mm With Working Speed 20-30m/Min | Cutting Material: | Galvalume,Galvanized |
|---|---|---|---|
| Material Thickness: | 0.2 Mm -3 Mm | Working Speed: | 8m/min - 30 M/min (can Be Customized) |
| Coil Weight: | Can Be Customized | Slitting Pcs: | 2 - 30pcs |
| Machine Weight: | 13000 KG | Cutting Width Precision: | ± 0.01 - ± 0.05 Mm |
| High Light: | 20m/min sheet coil slitting machine,30m/min sheet coil slitting machine,3.0mm thickness slitting cutter machine |
||
Color Steel Slitting Cutting Machine Line 0.2 - 3.0mm With Working Speed 20-30m/Min

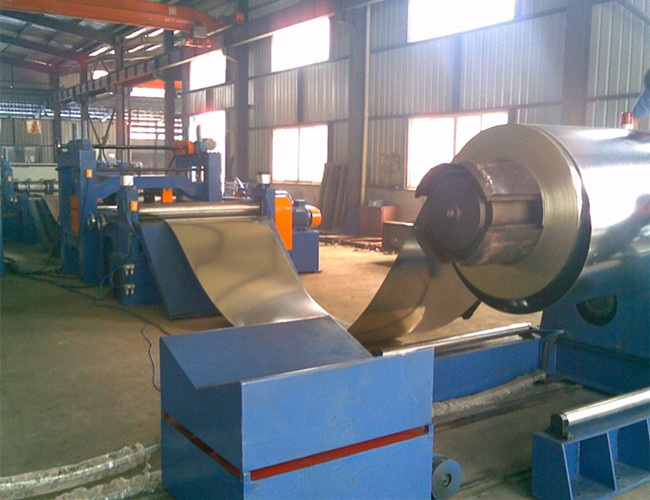

A slitting production line consists of three main components: a decoiler, a slitter, and a recoiler. Material is re-wound in the recoiler's slit covering as it passes through the nip between the two circular cutting wheels (one above and one below). To determine the proper components, shank size, tool kit, horsepower, and tension for the material to be cut, equipment suppliers and end users must collaborate.
Specifications
| No. | Item | Description |
| 1 Main Specification | 1 Raw Material | Galvanized, Aluminum,Color steel, Handness 235MPa |
| 2 Raw Material Thickness | 0.2 mm - 3.0 mm | |
| 3 Raw Material Width | 600 mm - 1600 mm | |
| 4 Tape Inner Diameter | φ 480 mm - φ 550 mm | |
| 5 TapeOuter Diameter | φ 1600 mm | |
| 6 Coil Weight | 5 tons 7 tons 10 tons | |
| 7 /Slitting No. | Max 30 pcs | |
| 8 The Highest Slitting LineSpeed | 8 m/min - 35 m/min | |
| 9 Minimum Cutting Line Width | 30 mm | |
| 10 Cutting Width Precision | ± 0.01 - ± 0.05 mm | |
| 11. Rated Operational Voltage | 380 V, 3 Phase, 60 Hz as per requested | |
| 12. Total Weight | 14000 KG | |
| 12. Working Space(L*W) | 20000 mm*6000 mm | |

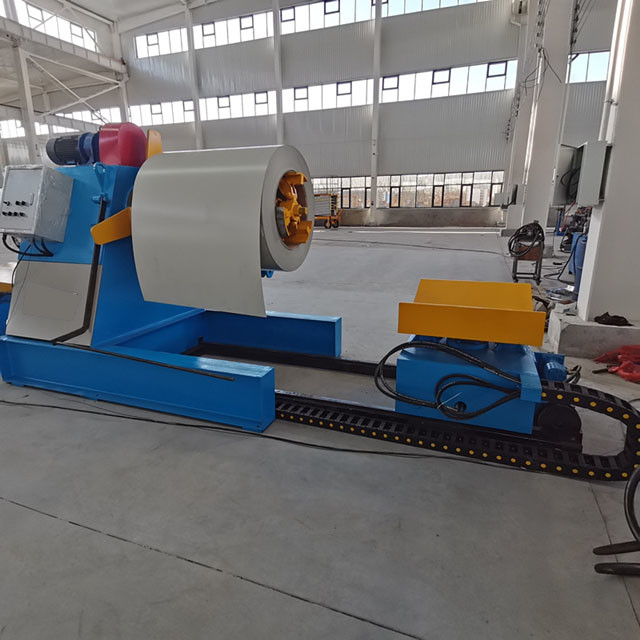

| 2 Decoiler Machine Specification | 1 Tape Outer Diameter | Max φ 1600 mm |
| 2 Tape Width | 600 mm - 1600 mm | |
| 3 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 4 Coil Weight | 5 /7/10 tons | |
| 5 Max Working Speed | 8 m/min - 30 m/min | |
| 6 Tape Tight Range | φ 480 mm - φ 530 mm | |
| 7 Shaft Diameter | φ180 mm | |
| 8 Roller Effective Length | 1600 mm | |
| 9 Drive Moter Power | 5 KW | |
| 10. Loading Car Diameter | φ 700 mm - φ 1500 mm | |
| 11 Loading Car Weight | 5 /7/ 10 tons | |
| 12 Car Speed | About 4 m/min | |

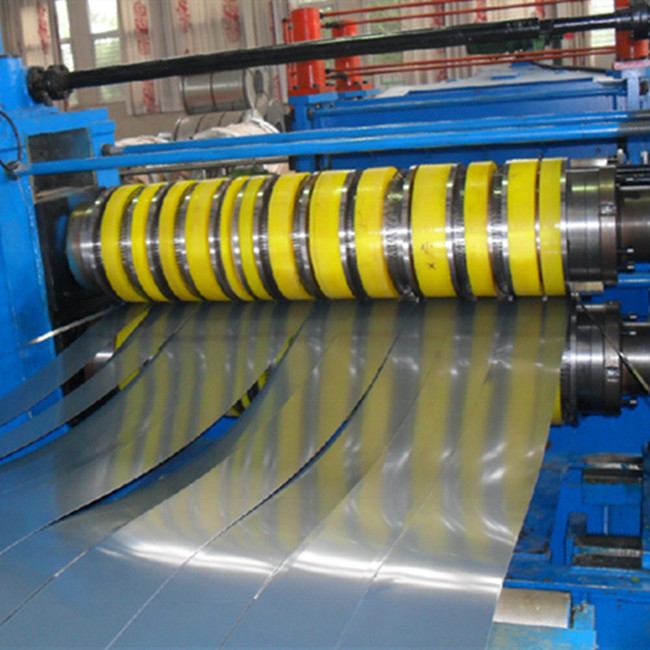

| 4 Slitting Machine Specification | 1 Cutting Width | Max φ 1600 mm |
| 2 Cutting Thickness | 0.2 mm - 2.0 mm | |
| 3 Cutter Shaft Diameter | φ180 mm | |
| 4 Cutter Shaft Material | Cr 40 | |
| 5.Cutter Size | 200 mm*300 mm*15 mm | |
| 6 Cutter Material | Cr12MoV | |
| 7 Cutter Spacer Size | 180 mm*240 mm*15 mm | |
| 8 Drive Moter | 15 kw | |
| 9 Cutting No. | 2-30 pcs | |
| 10 Cutter No. | Max 32 pcs | |
| 5 Planing Machine | 1 Shaft Diameter | φ 130 mm |
| 2 Shaft No. | Up 2 rows, down 3 rows | |
| 3 Mid Plate Thickness | 40 mm | |
| 4 Mulch Applicator Diameter | φ 130 mm | |
| 5 Film Width | 1600 mm | |
| 6 Tension Table | 1 Segregation Shaft | 3 pcs, 1 pcs pressure shaft |
| 2 Air Cylinder | 3 pcs | |
| 7 Recoiler Specification | 1 Tape Outer Diameter | Max φ 1600 mm |
| 2 Tape Width | 600 mm - 1600 mm | |
| 3 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 4 Coil Weight | 5 - 10 tons | |
| 5 Max Working Speed | 8 m/min - 30 m/min | |
| 6 Tape Tight Range | φ 485 mm - φ 530 mm | |
| 7 Shaft Diameter | φ 180 mm | |
| 8 Roller Effective Length | 1750 mm | |
| 9 Drive Moter Power | 30 kw | |
| 8 Recoiler Specification | 10 Loading Car Diameter | φ 1000 mm - φ 1750 mm |
| 11 Loading Car Weight | Max 10 tons | |
| 12 Car Speed | About 4 m/min | |
| 9 Electrical Control System | 2 sets. Computer Control System is Siemens PLC. | |
| 10 Edge Collecting Machine | 1 Drive Moter | 3 kw |
| 2 Collecting Material Width | Max 20 mm | |
| 3 Double Edge Width | 400 mm | |
Advantage
The slitting lines maintain high accuracy while allowing instant changes. Our large coilers and full control of machinery allow us to deliver production lines on time and within budget with the latest technology for quality control and automation.
