Name: Octagonal Tube Stud And Track Roll Forming Machine Galvanized Steel
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Octagona
Price: 40,500.00 USD
Availability: InStock

Home > products > Stud And Track Roll Forming Machine >

Octagonal Tube Stud And Track Roll Forming Machine Galvanized Steel

octagonal tube stud roll forming machine

galvanized steel stud and track machine

20m/min stud and track machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU FMS

Certification:

ISO CE

Model Number:

Octagona

Request A Quote

Product Details

Product Name:

Galvanized Steel Octagonal Tube Stud And Track Roll Forming Machine

Voltage:

380V 50Hz 3phases

Production Capacity:

15-20 M/min

Feeding Width:

As Per Requested

Dimension(L*W*H):

5000*600*900

Weight:

3500 Kg

Core Components:

Motor, PLC

Roller Material:

Gcr15 Steel Chrome Plated

Highlight:

octagonal tube stud roll forming machine

galvanized steel stud and track machine

20m/min stud and track machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

20' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control

Get Best Price

Video

Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness

Get Best Price

Video

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Get Best Price

Video

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness

Get Best Price

86-317-2016816

Contact Now

Product Description

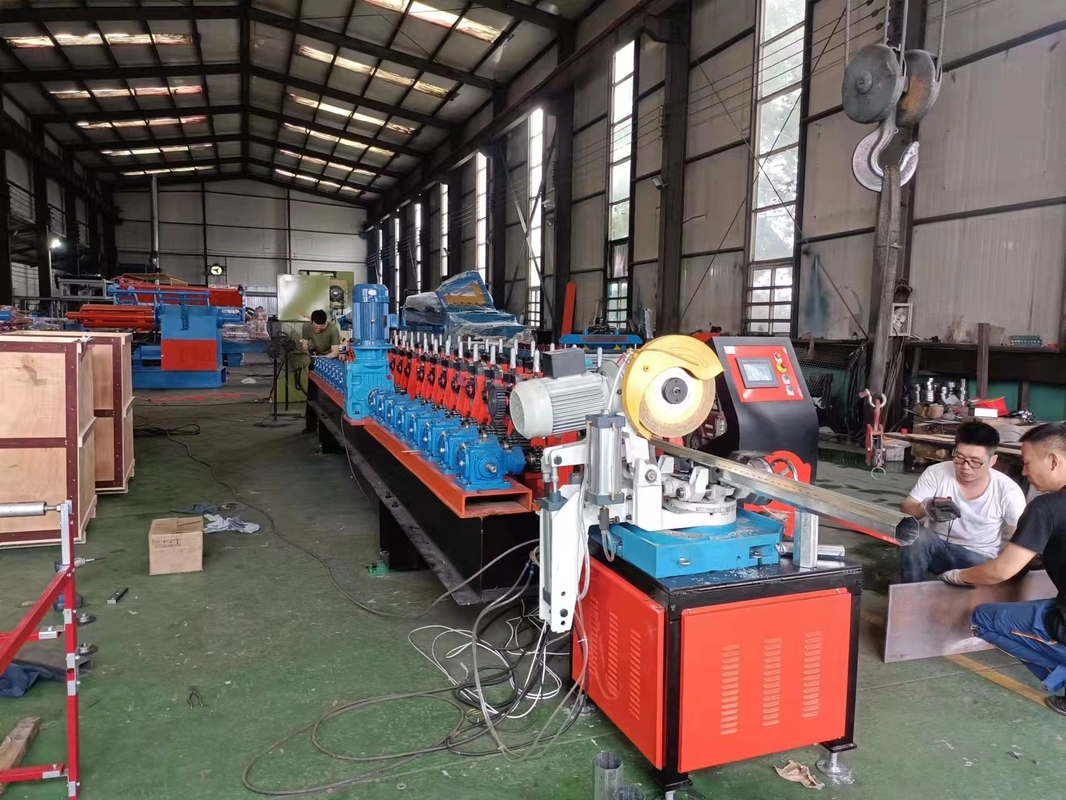

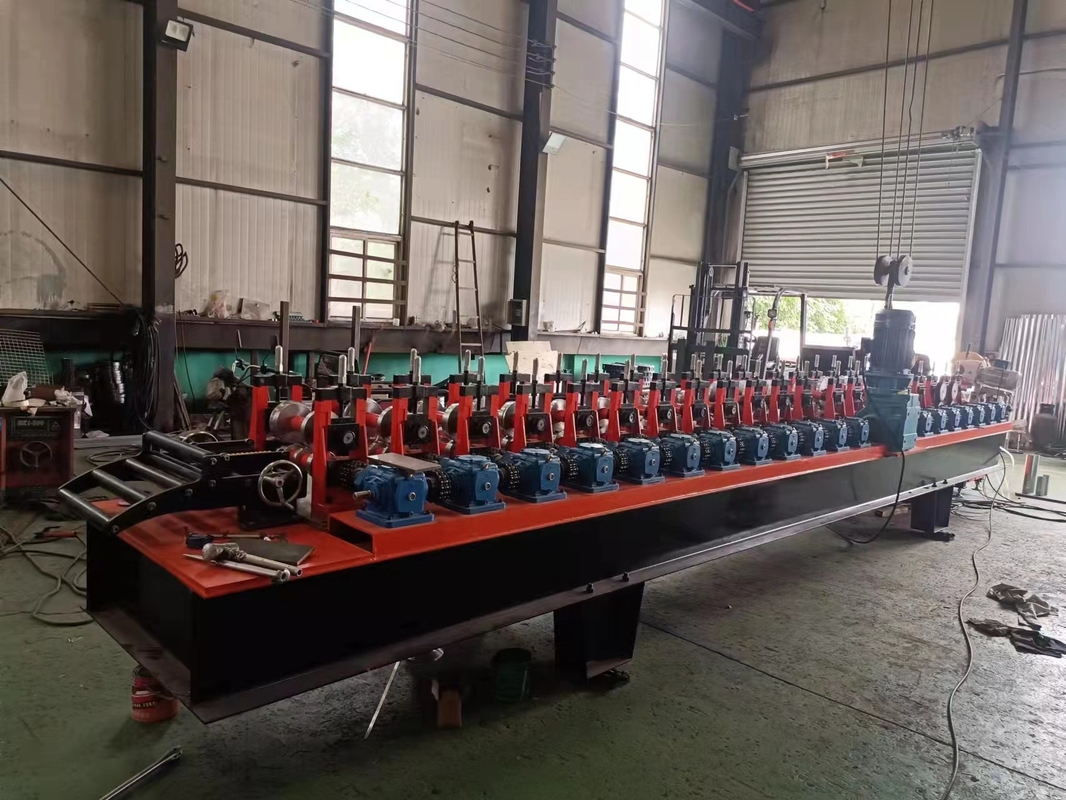

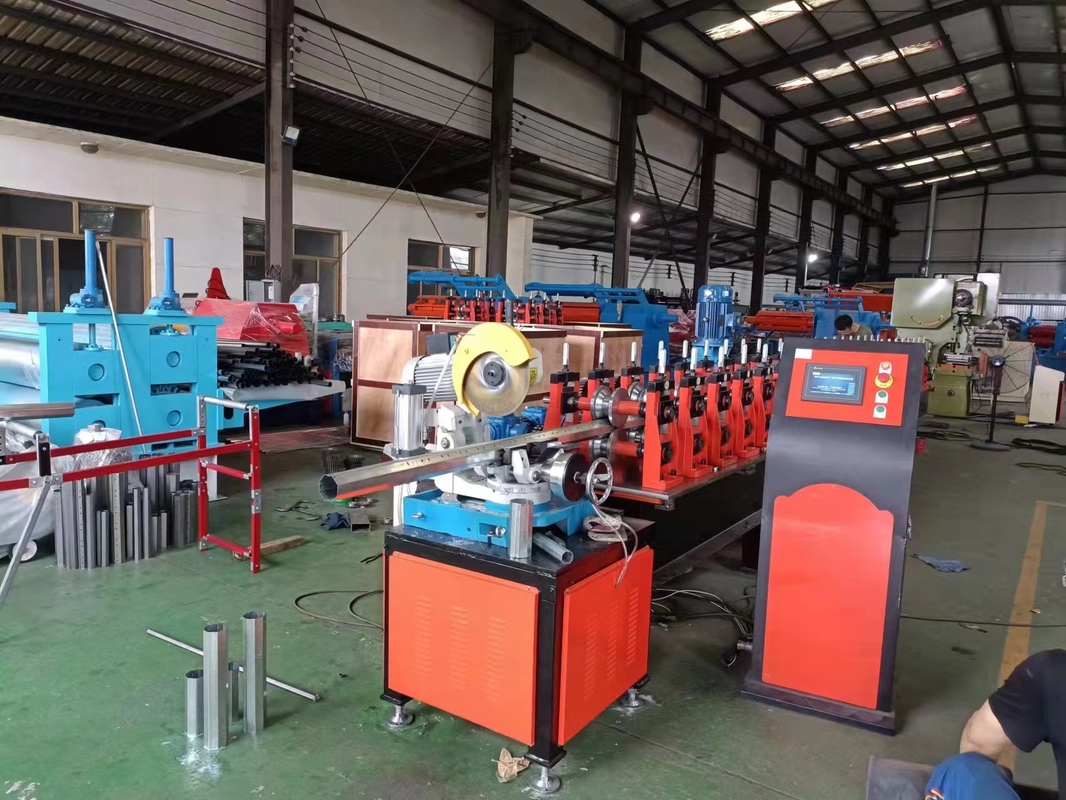

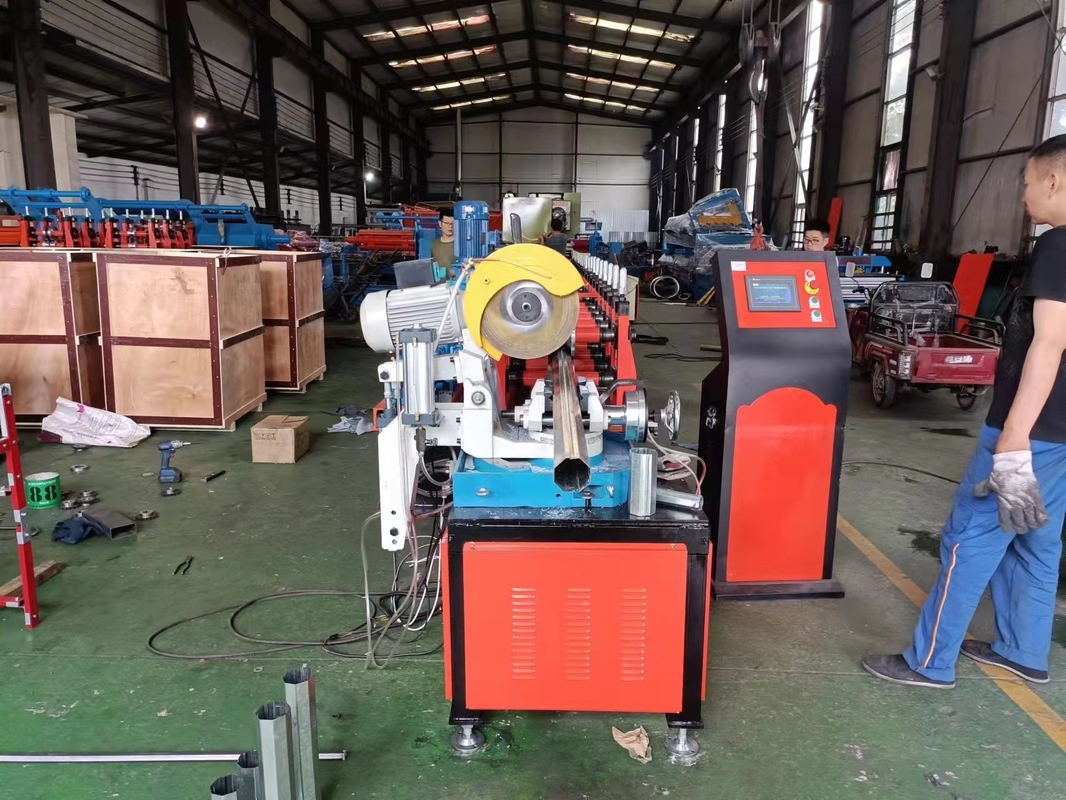

Galvanized Steel Octagonal Tube Stud And Track Roll Forming Machine

The octagonal pipe production line is one of the components of rolling door equipment. It is used to collect the "octagonal tube" scroll of rolling door leaves and rolling door panels. It should be used in supermarkets, shops, private residential garages, warehouses, factory buildings and other rolling door.

Specification

Galvanized Steel Octagonal Tube Stud And Track Roll Forming Machine
Metal material thickness	0.3 - 0.6mm
Metal material width	235mm or as client require
Roller Stage	22 forming rows
Roller Material	Gcr15 steel with chromium plate
Diameter of shaft	Φ70mm
Material of cutting blade	Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine	350H Steel
Side Panel of Machine	25mm
Cutting Type	No Stop Sawing Cutting
Motor power	5.5 kw
Hydraulic power	4 kw
Productivity	15-20 meters per minute
Plc control system	Delta or as customer require

Guarantee

In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB or CNF
The Delivery Time: 30-40 days after the down payment is received.

Octagonal Tube Stud And Track Roll Forming Machine Galvanized Steel 0
