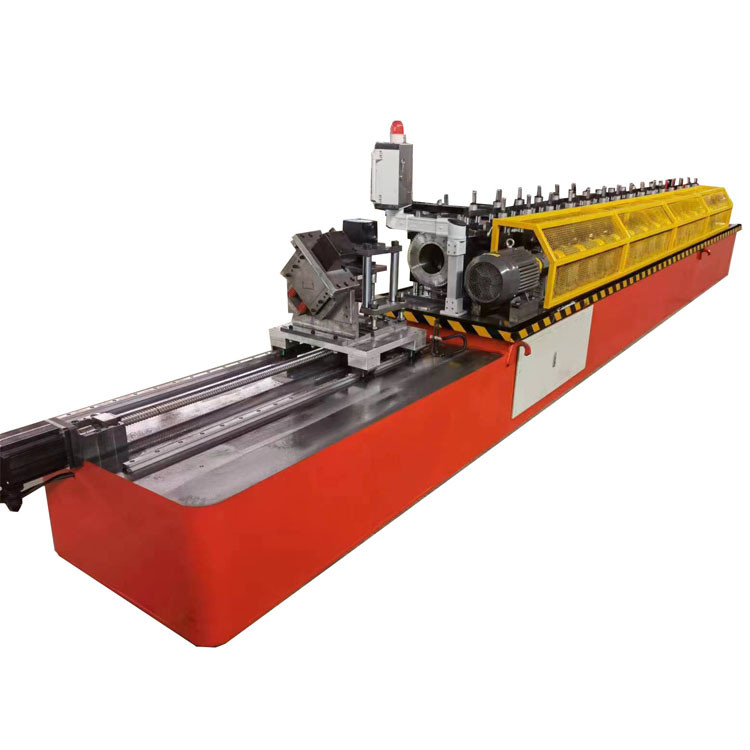

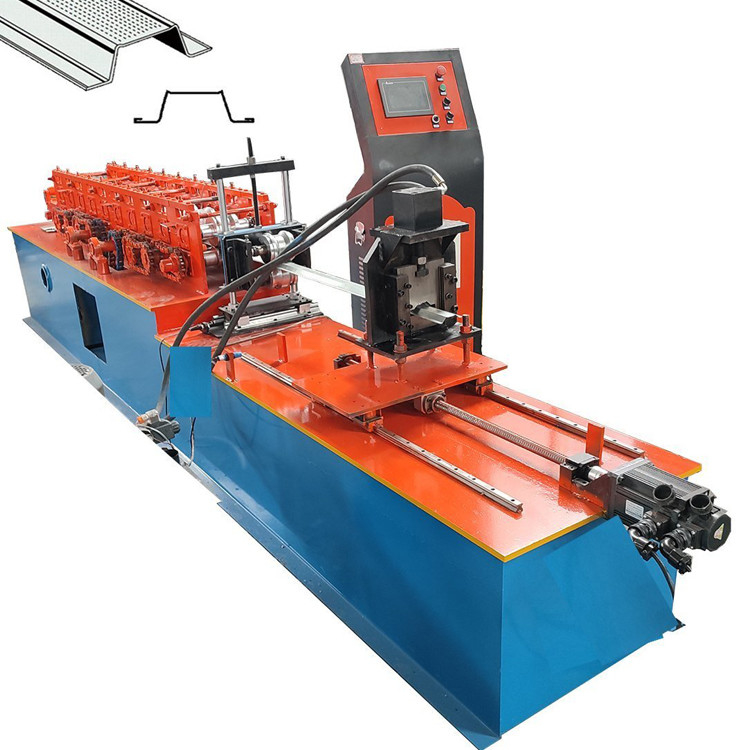

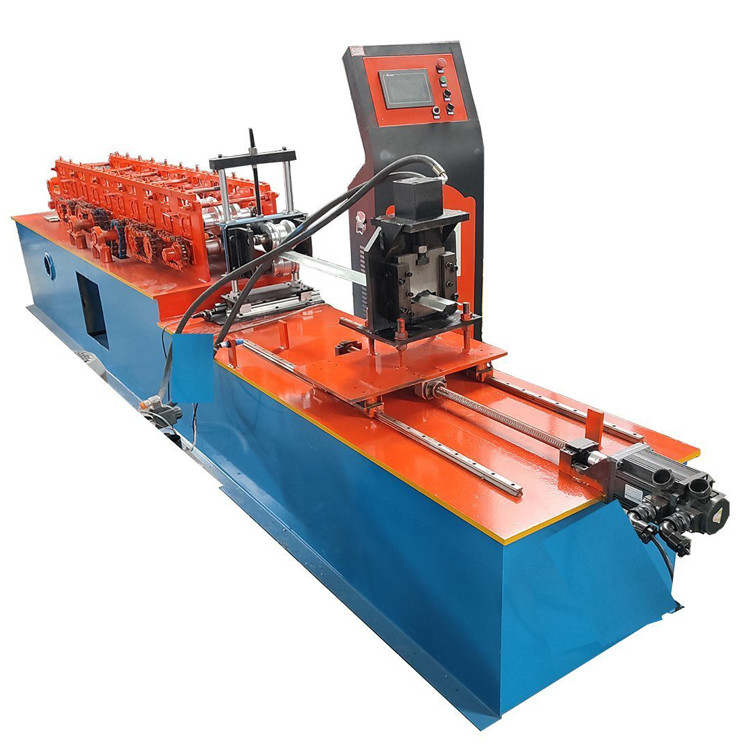

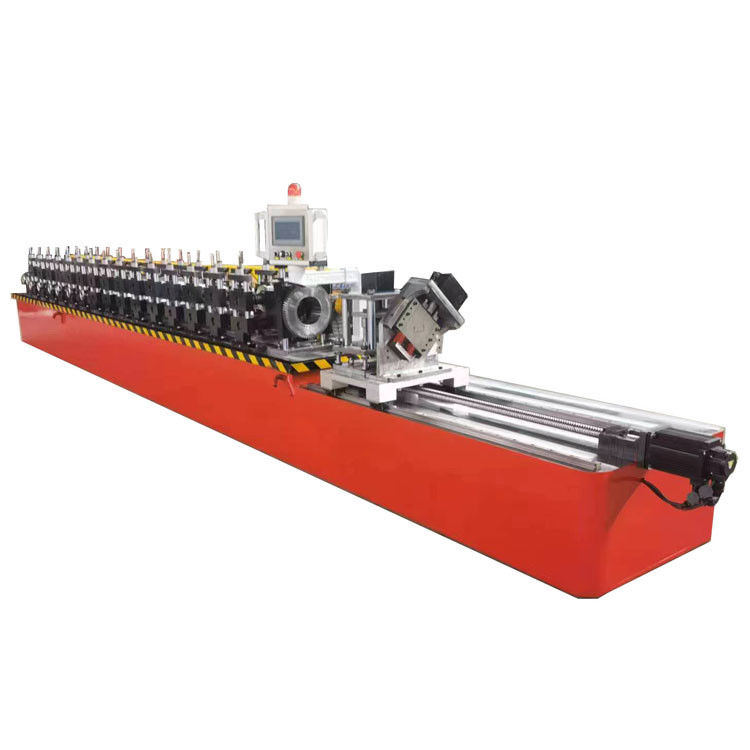

Drywall Omega Profile Light Gauge Steel Roll Forming Machine For Galvanized Plate

Drywall Omega Profile Light Gauge Steel Roll Forming Machine For Galvanized Plate
Drywall Omega Profile Light Gauge Steel Roll Forming Machine For Galvanized Plate

Large Image :  Drywall Omega Profile Light Gauge Steel Roll Forming Machine For Galvanized Plate

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Stud and Track
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Use For Drywall Omega Profile Light Gauge Steel Roll Forming Machine Dimension(L*W*H): 6500*1300*1100
Tile Type: Galvanised Steel Use: Drywall Celling
Production Capacity: 8-12m/min Weight: 3000KG
Voltage: 380V 50Hz 3 Phases Control System: PCL
High Light:

drywall light gauge steel roll forming machine

,

galvanized light gauge steel roll forming machine

,

drywall omega profile roll forming machine

Use for Drywall Omega Profile Light Gauge Steel roll Forming Machine



  Omega profile roll forming machine popular sell in many countries. Product thickness common between 0.3-1.2 mm, we had export  lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc. As a result of the stable operation of the machine, the customers are well satisfied with the production speed



Specification




1
Plate Material
Galvanized plate
Thickness
0.3-1.2mm
Wall thickness of the main forming machine
25mm steel plate

2
Reducer
3kw which works stably and no noise.
Rollers
11 steps



3
Diameter of active shaft
48mm, 45# steel
Hydraulic pump power
3KW
Woking Speed
8-12m/min
Material of shaft
45# steel with chrome 0.05mm

4
Operate
Automatic Hydraulic / Electric type
Blade material
Cr12MOV


5
Pump motor for cutter
4KW
Main Motor
5.5KW
Voltage
380V 50Hz 3 Phase

6
Electric Box
PLC control system , Inverter
Language
English / Chinese



Application
To form rigid suspended ceiling framework, Omega channel clips are used with U-channel, hanger wire, and Omega channel clips on masonry walls and ceiling assemblies.

Advantage

The material of the light steel keel itself is relatively light. The gravity of the product made by this material is relatively light, so it is more suitable for it on the ceiling, and its fire resistance is also very high. Fire resistance is high.
The construction efficiency of light steel keel is also relatively high. The construction method it uses is relatively simple, so the efficiency is very high, so its construction time is relatively short, and its structure is very safe, that is, it is its structure, that is, it is its structure, that is, it is its structure. The solidity is very high, so it is relatively high in terms of safety
