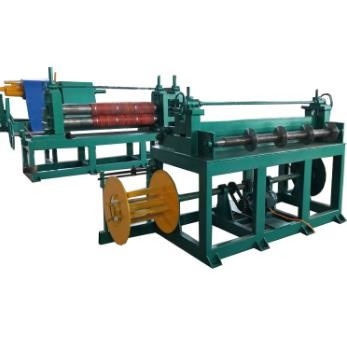

Q235 Carbon Steel Color Steel Simple Slitting Cutting Machine Line 0.2 - 3.0mm

Q235 Carbon Steel Color Steel Simple Slitting Cutting Machine Line  0.2 - 3.0mm
Q235 Carbon Steel Color Steel Simple Slitting Cutting Machine Line  0.2 - 3.0mm

Large Image :  Q235 Carbon Steel Color Steel Simple Slitting Cutting Machine Line 0.2 - 3.0mm

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO, CE
Model Number: Slitting
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Production Line
Price: Negotiable
Packaging Details: 2 Pcs 40' FLC
Delivery Time: 60 Working Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 Sets Per 60 Days
Detailed Product Description
Product Name: Q235 Carbon Steel Color Steel Simple Slitting Cutting Machine Line 0.2 - 2.0mm Cutting Material: Galvalume,Galvanized
Material Thickness: 0.2 Mm -3 Mm Working Speed: 8m/min - 30 M/min (can Be Customized)
Coil Weight: Can Be Customized Slitting Pcs: 2 - 30pcs
Machine Weight: 13000 KG Cutting Width Precision: ± 0.01 - ± 0.05 Mm
High Light:

q235 slitting cutting machine

,

color steel slitting cutting machine

,

0.2mm slitting cutter machine

Q235 Carbon Steel Color Steel Simple Slitting Cutting Machine Line 0.2 - 3.0mm



The slitting production line consists of three main parts: a decoiler, a slitter, and a rewinder. As the material is fed through the nip between the two circular cutting wheels (one at the top and the other below), it is re-wound in the slit covering on the recoiler. Equipment suppliers and end users must work together to determine the appropriate components, shank size, tool kit, horsepower, and tension for the material being cut.



Specifications



No. Item Description
1 Main Specification 1 Raw Material Galvanized, Aluminum,Color steel, Handness 235MPa
2 Raw Material Thickness 0.2 mm - 3.0 mm
3 Raw Material Width 600 mm - 1600 mm
4 Tape Inner Diameter φ 480 mm - φ 550 mm
5 TapeOuter Diameter φ 1600 mm
6 Coil Weight 5 tons 7 tons 10 tons
7 /Slitting No. Max 30 pcs
8 The Highest Slitting LineSpeed 8 m/min - 35 m/min
9 Minimum Cutting Line Width 30 mm
10 Cutting Width Precision ± 0.01 - ± 0.05 mm
11. Rated Operational Voltage 380 V, 3 Phase, 60 Hz as per requested
12. Total Weight 14000 KG
12. Working Space(L*W)  20000 mm*6000 mm

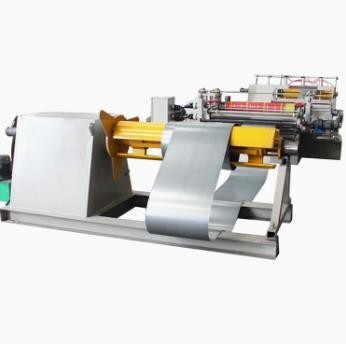

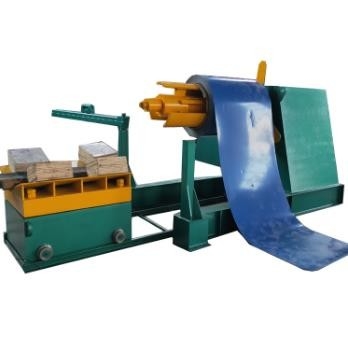

2 Decoiler Machine Specification 1 Tape Outer Diameter Max φ 1600 mm
2 Tape Width 600 mm - 1600 mm
3 Tape Inner Diameter φ 480 mm - φ 530 mm
4 Coil Weight 5 /7/10 tons
5 Max Working Speed 8 m/min - 30 m/min
6 Tape Tight Range φ 480 mm - φ 530 mm
7 Shaft Diameter φ180 mm
  8 Roller Effective Length 1600 mm
9 Drive Moter Power 5 KW
10. Loading Car Diameter φ 700 mm - φ 1500 mm
11  Loading Car Weight 5 /7/ 10 tons
12 Car Speed About 4 m/min

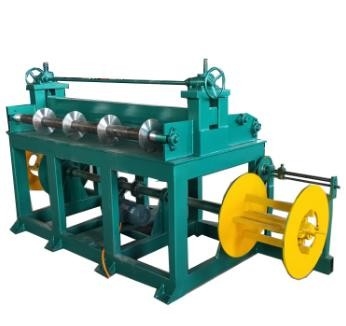

4 Slitting Machine Specification 1 Cutting Width Max φ 1600 mm
2 Cutting Thickness 0.2 mm - 2.0 mm
3 Cutter Shaft Diameter φ180 mm
4 Cutter Shaft Material Cr 40
5.Cutter Size 200 mm*300 mm*15 mm
6 Cutter Material Cr12MoV
7 Cutter Spacer Size 180 mm*240 mm*15 mm
8 Drive Moter 15 kw
9 Cutting No. 2-30 pcs
10 Cutter No. Max 32 pcs
5 Planing Machine 1 Shaft Diameter φ 130 mm
2 Shaft No. Up 2 rows, down 3 rows
3 Mid Plate Thickness 40 mm
4 Mulch Applicator Diameter φ 130 mm
5 Film Width 1600 mm
6 Tension Table 1 Segregation Shaft 3 pcs, 1 pcs pressure shaft
2 Air Cylinder 3 pcs
7 Recoiler Specification 1 Tape Outer Diameter Max φ 1600 mm
2 Tape Width 600 mm - 1600 mm
3 Tape Inner Diameter φ 480 mm - φ 530 mm
4 Coil Weight 5 - 10 tons
5 Max Working Speed 8 m/min - 30 m/min
6 Tape Tight Range φ 485 mm - φ 530 mm
7 Shaft Diameter φ 180 mm
8 Roller Effective Length 1750 mm
9 Drive Moter Power 30 kw
8 Recoiler Specification 10 Loading Car Diameter φ 1000 mm - φ 1750 mm
11  Loading Car Weight Max 10 tons
12 Car Speed About 4 m/min
9 Electrical Control System 2 sets. Computer Control System is Siemens PLC.
10 Edge Collecting Machine 1 Drive Moter 3 kw
2 Collecting Material Width Max 20 mm
3 Double Edge Width 400 mm







Advantage



Slitting lines maintain high accuracy while allowing instant changes. With large coilers and full control of machinery, using the latest technology for quality control and automation, we deliver production lines on time and on budget!
