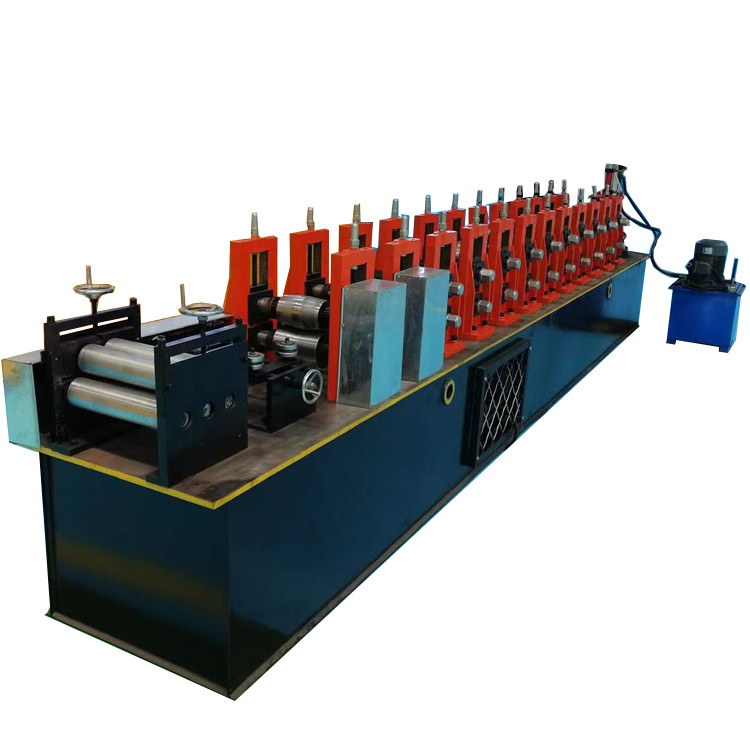

Cu Drywall Stud And Track Channel Roll Forming Machine High Speed

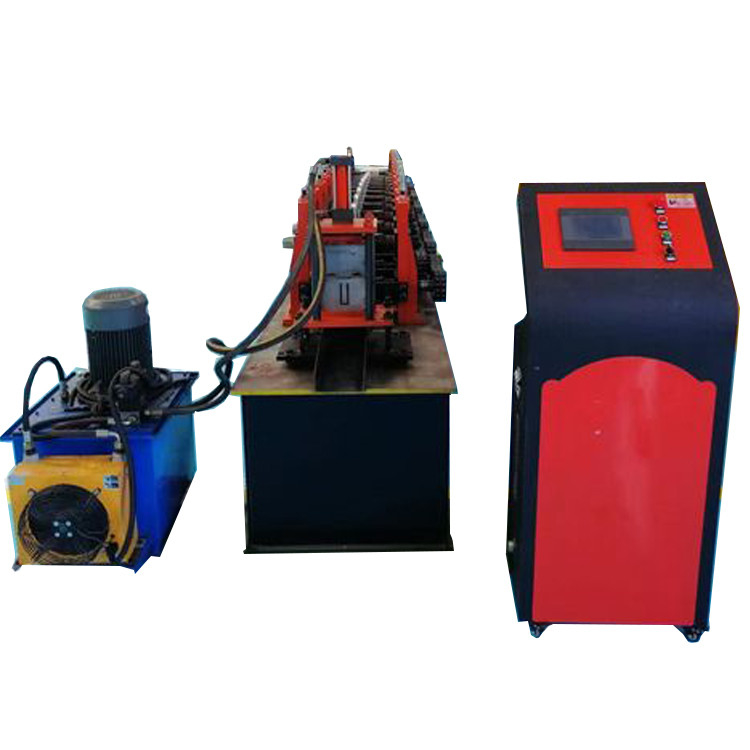

Cu Drywall Stud And Track Channel Roll Forming Machine High Speed

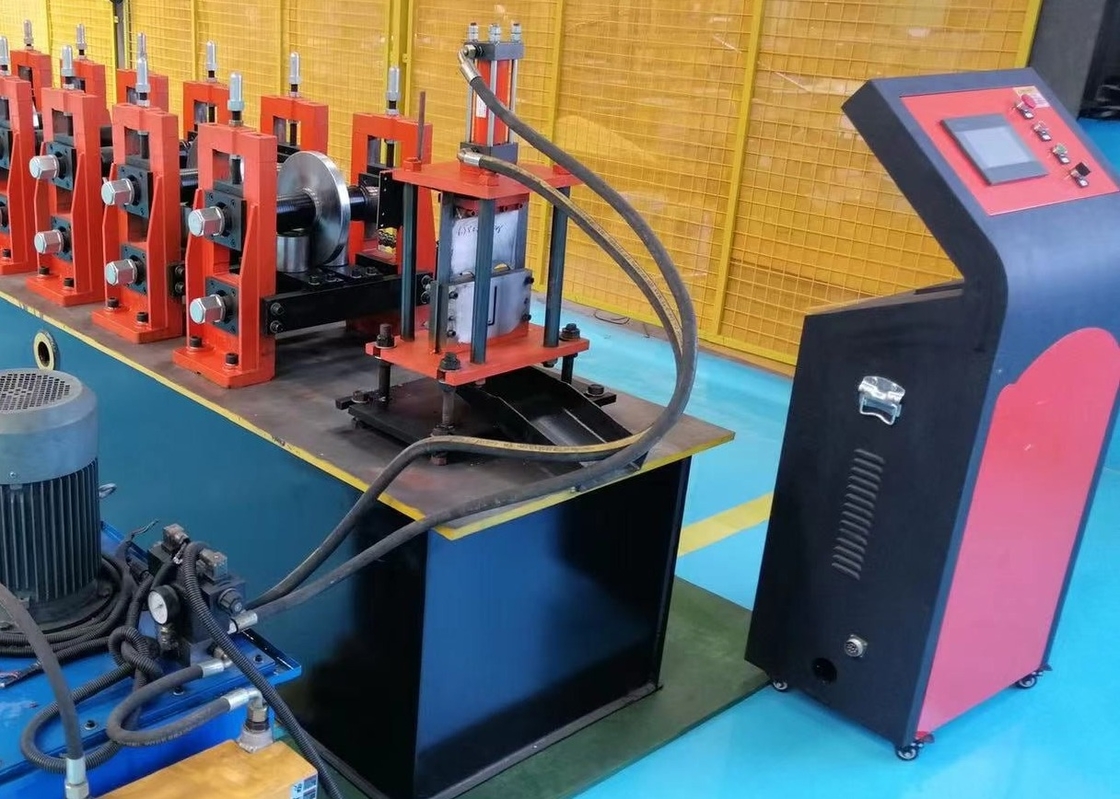

Cu Drywall Stud And Track Channel Roll Forming Machine High Speed

Large Image :  Cu Drywall Stud And Track Channel Roll Forming Machine High Speed

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: CU Drywall Stud And Track Channel Roll Forming Machine High Speed Voltage: 380V 50Hz 3phases
Production Capacity: 30m/min Cutting Type: Hydraulic Cutting
Cutting Blade Material: Cr 12 High Grade Steel Dimension(L*W*H): 10500*1400*1500mm
Rolling Thinckness: 0.3-0.8mm Control System: PLC(Delta Brand)
Roller Material: 45# Steel Cutting Type: Hydraulic Guide Pillar Cutting
High Light:

cu channel roll forming machine

,

drywall channel roll forming machine

,

hydraulic high speed roll forming machine

CU Drywall Stud And Track Channel Roll Forming Machine High Speed



   CU Drywall Stud And Track Channel Roll Forming Machine High Speed,usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables. , can make stud and track , omega , angle , ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .



Specification



Main motor power
5.5kw
Hydraulic motor power
4kw
Hydraulic Pressure
10-12MPa
Voltage
380V/50HZ/3Phase
Control System
PLC (Delta brand)
Feeding Material
Galvanized steel
Feeding Thickness
0.3-0.8mm
Speed
30-50m/min
Roller station
14 rows
Shaft diameter
60mm
Shaft material
45# steel
Roller material
45# steel
Cutter material
Cr12 quenched
Dimension
10500*1400*1500mm
Weight
about 5500 kg







Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
