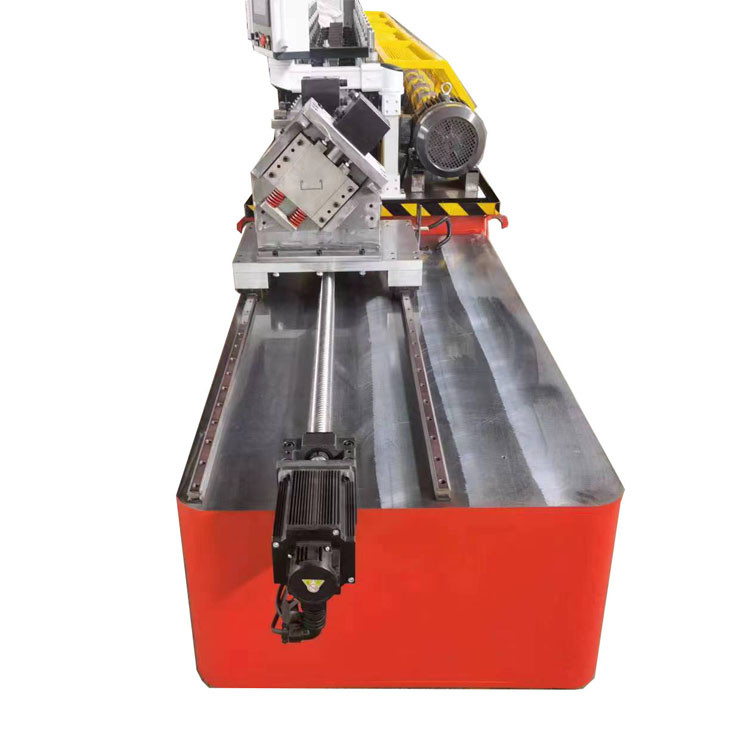

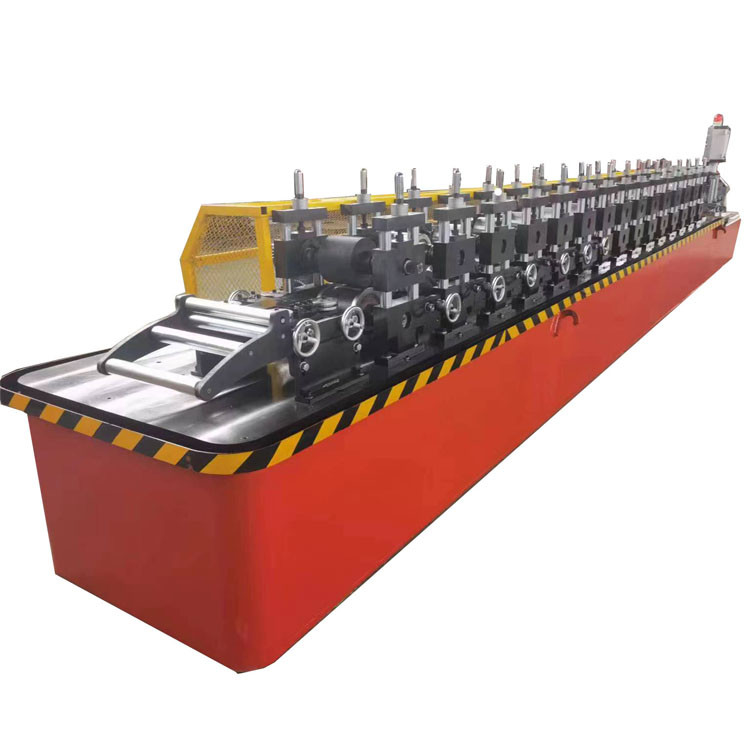

High Speed Stud And Track Roll Forming Machine Automatic C U Profiles Drywall

High Speed Stud And Track Roll Forming Machine Automatic C U Profiles Drywall
High Speed Stud And Track Roll Forming Machine Automatic C U Profiles Drywall

Large Image :  High Speed Stud And Track Roll Forming Machine Automatic C U Profiles Drywall

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: High Speed Stud And Track Roll Forming Machine Automatic C U Profiles Drywall Type: Nonstop Cutting Roll Forming Machine
Tile Type: Galvanised Steel Use: Drywall
Production Capacity: 45m/min Weight: 3500KG
Main Motor: 4kw Control System: PCL
High Light:

galvanised stud and track roll forming machine

,

4kw stud and track roll forming machine

,

nonstop cutting drywall roll forming machine

Metal Stud And Track Forming Machine For Light Construction Use



 Decoiler ( Selectable configuration ):
Optional configuration ): Hydraulic decoiler; Loading Lecel: 5tons(common), 8tons, 10tons, 15tons or as requirement;
Loading Width: Max. 1250mm or 1450mm (common);
Loading Inner Diameter: φ450-550mm;
Loading Outer Diameter: Max. φ1500mm



Forming station :

With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm ;
Tie rod:ф22 Galvanized
Rollers manufactured from Gcr15/Cr12 steel,CNC lathes,Heat Treatment,hard Chrome Coated
with thickness 0.04mm,surface with mirror treatment
The warranty for the rollers is 2 years
Shafts Diameter=ф60 mm,precision machined
Gear/Sprocket driving,about 10-step to form
Main Motor=18.5KW , Frequency speed control
Speed redcucer motor:K series;
Size changing motor:6pcs, Automatically controlled by PLC Programing.
Sliding block:150*150mm;
All the screw bolts with grade 8.8
Real forming speed 20m/min (depending on the number of punching holes)With squareness roller setup


Post Hydraulic Cutting Device ,Fly- Cutting,pieces type of cutting blade design, no blanking
Hydraulic motor:5.5 KW ;
Cutting tool material: Cr12MoV
The cutting power is provided by the main engine hydraulic station



Specification

Roll
forming
machine
Feeding device Platform, the width is adjustable
Roller stations 16 stages
The distance between 2 stages is 443mm
Roller shaft Shaft material: 45# steel
Shaft diameter: φ70 mm
Roller Roller material: 45# steel
Roller spacer Anti rusty treatment
Work speed 60m/min
Main structure Middle plate weld with structure
Motor power 5.5KW
Transmission 1.0INCH CHAINS
Machine basic frame 400# H steel welded with diagonal bracing inside
Bearing Chinese famous brand






Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
