Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm

octagonal tube galvanized roll forming machine

915mm galvanized roll forming machine

octagonal tube metal roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU FMS

Certification:

ISO CE

Request A Quote

Product Details

Product Name:

Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm

Voltage:

380V 50Hz 3phases

Production Capacity:

15-20 M/min

Feeding Width:

915mm

Dimension(L*W*H):

5000*600*900

Weight:

3500 Kg

Core Components:

Motor, PLC

Roller Material:

Gcr15 Steel Chrome Plated

Highlight:

octagonal tube galvanized roll forming machine

915mm galvanized roll forming machine

octagonal tube metal roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

20' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control

Get Best Price

Video

Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness

Get Best Price

Video

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Get Best Price

Video

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness

Get Best Price

86-317-2016816

Contact Now

Product Description

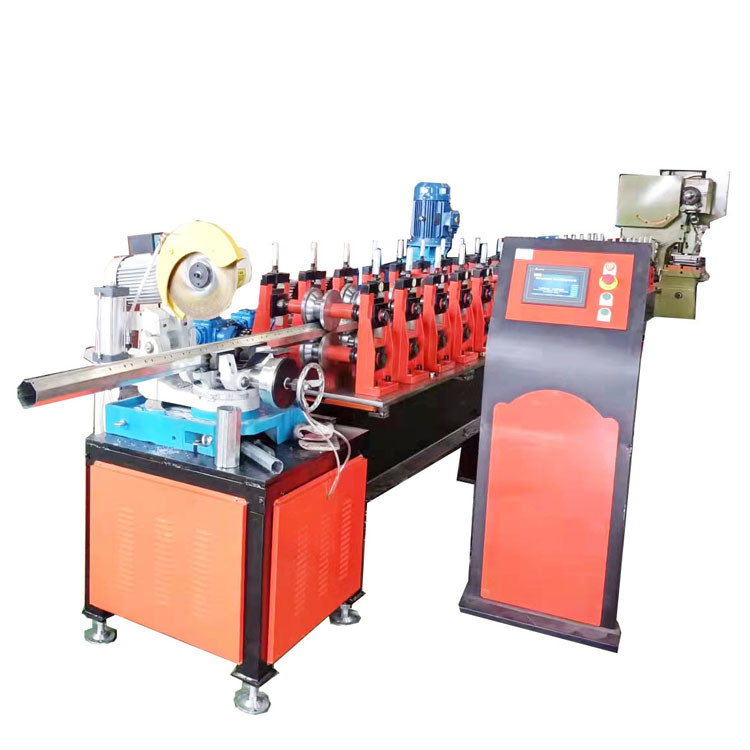

Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm

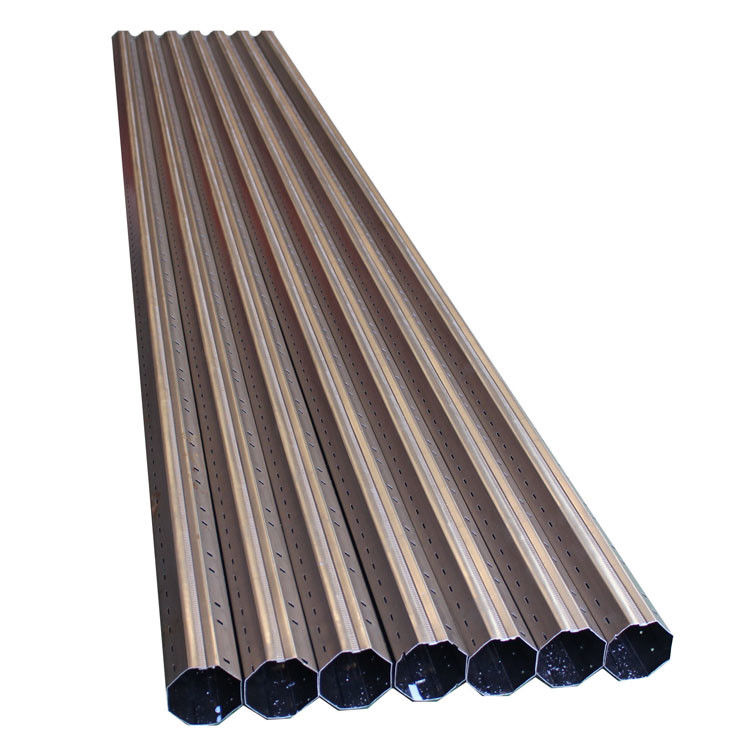

Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm,The shutter door octagon pipe roll forming machine is used to produce octagon pipe for PU shutter door . The octagon pipe is used to install on the top part of shutter door , with it's help , the shutter door can open and close ( up and down ) smoothly . In this way, it can make sure the door give customers a safe and warmly environment.

Specification

Metal Octagonal Tube Roll Forming Machine Galvanized 60mm 70mm
Metal material thickness	0.3 - 0.6mm
Metal material width	235mm or as client require
Roller Stage	20 forming rows
Roller Material	Gcr15 steel with chromium plate
Diameter of shaft	Φ60mm
Material of cutting blade	Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine	350H Steel
Side Panel of Machine	25mm
Cutting Type	No Stop Sawing Cutting
Motor power	5.5 kw
Hydraulic power	3 kw
Productivity	15-20 meters per minute
Plc control system	Delta or as customer require

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
