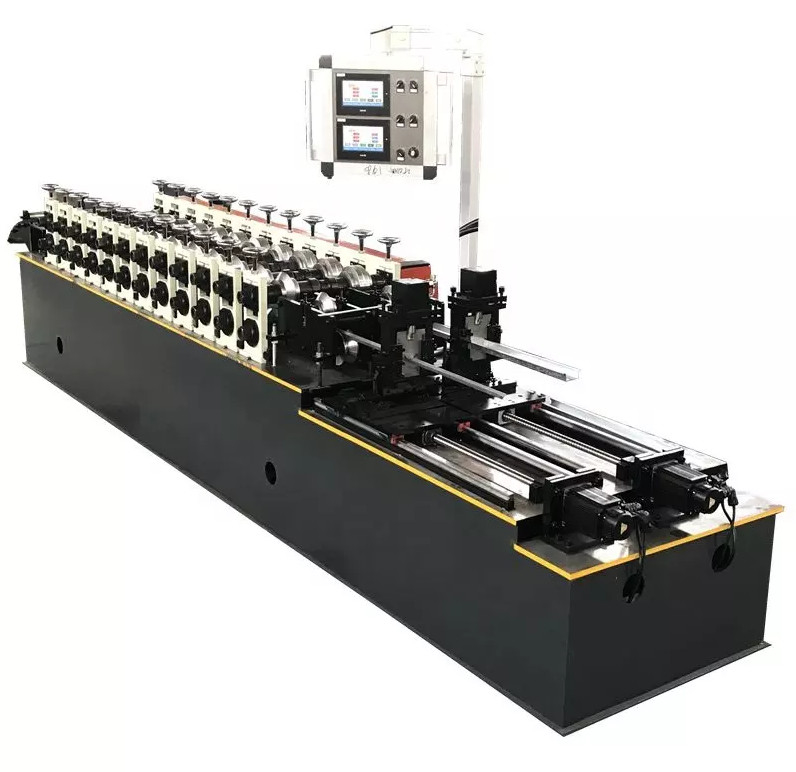

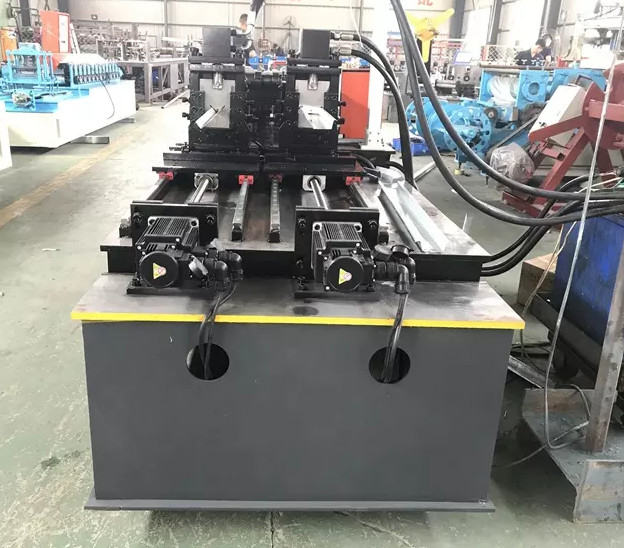

Omega Profile Roll Forming Machine C U Channel Truss Furring Cold Forming Machine

Omega Profile Roll Forming Machine C U Channel Truss Furring Cold Forming Machine
Omega Profile Roll Forming Machine C U Channel Truss Furring Cold Forming Machine

Large Image :  Omega Profile Roll Forming Machine C U Channel Truss Furring Cold Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Omega Profile Roll Forming Machine C U Channel Truss Furring Cold Forming Machine Voltage: 380V 50Hz 3phases
Production Capacity: 45m/min Cutting Type: Hydraulic Cutting
Cutting Blade Material: Cr 12 High Grade Steel Dimension(L*W*H): 4800mm*1.55mm*1.3mm
Rolling Thinckness: 0.3-0.8mm Control System: PLC(Delta Brand)
High Light:

cu omega profile roll forming machine

,

cold omega profile roll forming machine

,

truss furring cold forming machine

Omega Profile Roll Forming Machine C U Channel Truss Furring Cold Forming Machine



   This is Perforated galvanized steel metal fence panel sheet roll forming machine , can make stud and track , omega , angle , ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .



Specification





1

Raw Material
Type
GI&PPGI
Thickness
0.3-0.8mm
Yield Strength
235Mpa to 350Mpa

2

Decoiler
Operation
Manual/ Hydraulic for option
Weight Capacity
5Tons



3



Main Body
Roller Station
12 rows
Diameter of Shaft
50-60mm
Material of Rollers
Cr12
Material of shaft
45# steel with chrome 0.05mm
Transmission
Gear

4

Cutter
Operate
Automatic Hydraulic / Electric type
Blade material
Cr12MOV


5


Power
Pump motor for cutter
4KW
Main Motor
5.5KW
Voltage
380V 50Hz 3 Phase

6

Control system
Electric Box
PLC control system , Inverter
Language
English / Chinese
7
Speed
30-50M/min






Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
