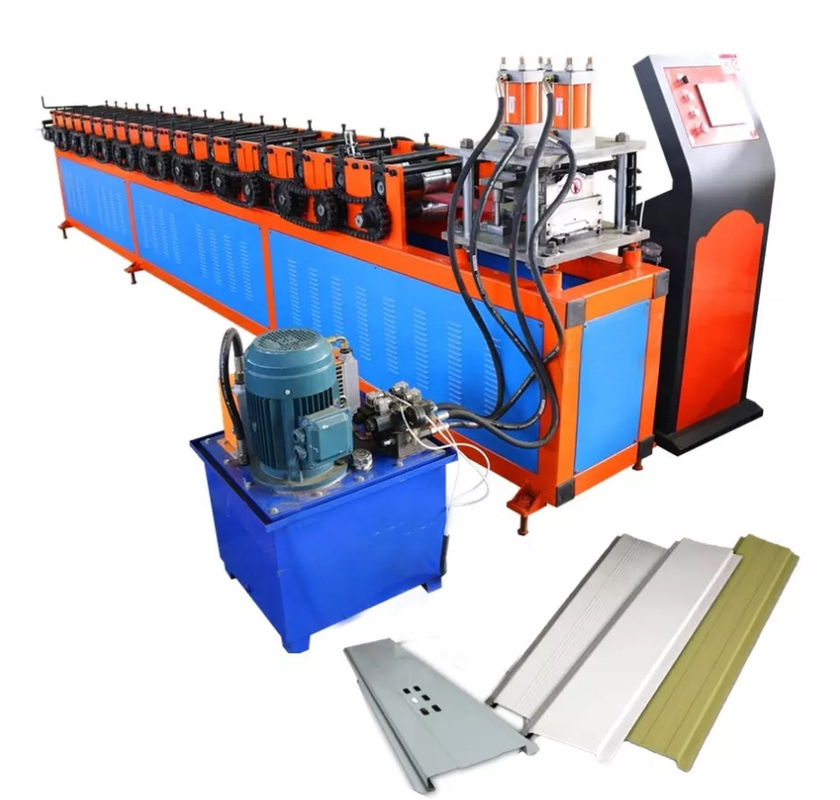

Metal Spandrel 4" 6" Stud Forming Machine ISO CE

Metal Spandrel 4" 6" Stud Forming Machine ISO CE
Metal Spandrel 4" 6" Stud Forming Machine ISO CE Metal Spandrel 4" 6" Stud Forming Machine ISO CE

Large Image :  Metal Spandrel 4" 6" Stud Forming Machine ISO CE

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Metal Spandrel 4" 6" Forming Machine In The Philippines Type: Nonstop Cutting Roll Forming Machine
Dimension(L*W*H): 7500*1300*1550mm Rolling Thinckness: 0.3-0.8mm
Cutting Blade Material: Cr 12 High Grade Steel Weight: 3000KG
Main Frame: 400H Steel Control System: PLC(imported Brand)
High Light:

metal spandrel stud forming machine

,

4" stud forming machine

,

6" stud roll former

Metal Spandrel 4" 6" Forming Machine In The Philippines

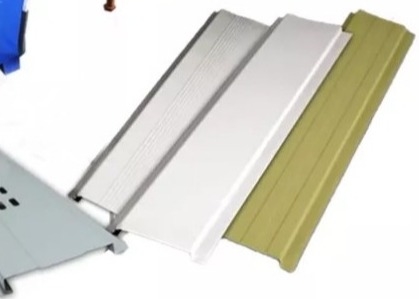

    Metal Spandrel 4" 6" Forming Machine In The Philippines.Metal Spandrel 4" 6" forming machine has different types and widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product .The finished goods Spandrel roof is made from pre painted metal sheet or pvc materials.Spandrel has a functional beauty for a perfect finish on eaves, ceilings & overhangs.


   This PLAIN SPANDREL roof is made from premium Superlume, a steel substrate coated on both sides with an Aluminum-Zinc alloy. This is manufactured using state-of-the-art Non-Oxidizing Furnace technology. The composition of the coating alloy is: 55% Aluminum 43.4% Zinc 1.6 % Silicon
   This unique coating will translate to significant cost savings for any user of products made from Superlume because the coating alloy will protect the steel against corrosive environments for years. The excellent corrosion resistance of Superlume is a result of combined protection of the barrier effect of Aluminum and the sacrificial or galvanic protection of Zinc on the surface of the steel.

The advantage of decorative clip roof panel roll forming machine with the new flush wall / soffit / underdeck profile
   1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
   2.The surface of the final product is very smooth and beautiful without any scratch on the surface.
   3.It has advantage of pretty appearance, durable using and so on.

Specification



No.
Metal Spandrel 4" 6" Forming Machine In The Philippines
1
Suitable to process
Color alu-zinc steel coil/Aluminium Coil
2
Roller
16Rows
3
Dimensions
7.0*1.3*1.55m
4
Motor Power
7.5Kw
5
Pump Station Motor
5.5Kw.Lichao Brand
6
Thickness of the plate
0.6-1.2mm
7
Productivity
10-15m/min
8
Material of the cutting blade
Cr12,Quenched treatment 58℃-60℃
9
Diameter of the roller
Φ80mm
10
Weight
About 4800kgs
11
Main structure of the machine
400H beams
12
Processing precision
Within 1.0mm
13
Side panel of machine
18mm
14
Chain Wheel and Cycle Chain
1 Inch
15
Voltage
380V 50Hz 3phases or as customer's need
16
Control system
PLC control (Delta)
17
Frequency system
Delta
18
Drive mode
Motor driver
19
Touch screen
Delta
20
Rolling materials
45# forging steel with chromium plate
21
Length Tolerance
±2mm





Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
