Drywall Profile Light Gauge Steel Machine Hydraulic Cutting

Drywall Profile Light Gauge Steel Machine Hydraulic Cutting
Drywall Profile Light Gauge Steel Machine Hydraulic Cutting

Large Image :  Drywall Profile Light Gauge Steel Machine Hydraulic Cutting

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Drywall Profile Stud Track Roll Forming Machines Light Gauge Steel Machine Shaft Material: 45# Steel
Motor: 4kw Cutting Type: Hydraulic Cutting
Specification: 8*1.5*1.3m Speed: 0-25m/Min
Roller Material: Cr12
High Light:

drywall profile light gauge steel machine

,

hydraulic cutting light gauge steel machine

,

hydraulic cutting drywall roll forming machine

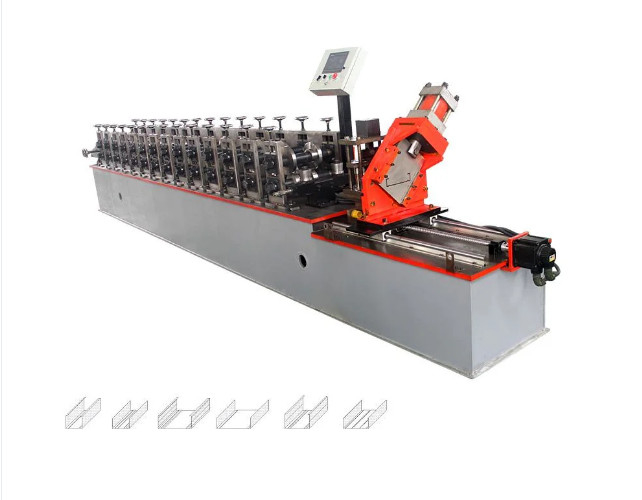

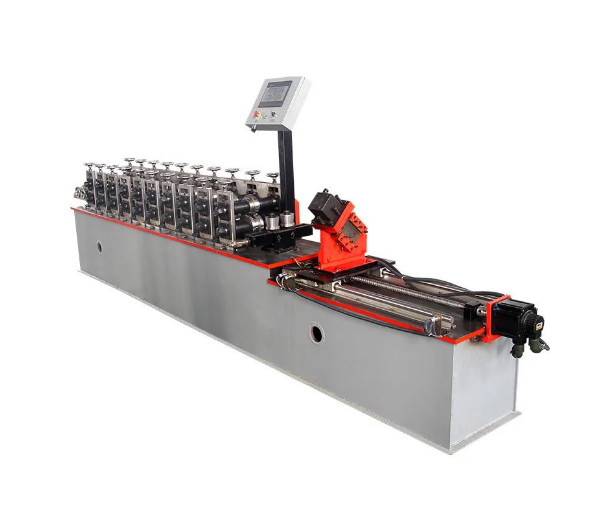

Drywall Profile Stud Track Roll Forming Machines Light Gauge Steel Machine

    Drywall Profile Stud Track Roll Forming Machines Light Gauge Steel Machine.This machine has 12 forming steps,and the roller's material is CR12 with quenching,the shaft material is 45# Steel,and the diameter is 40mm.
The transmission of this machine is gear transmission and it will control by PLC.

   The cutting system is hydraulic tracking cutting system,it is non-stop cutting,so that it can save the cutting time,and improve the production speed.
The cutter material is CR12 MOV,the hardness of this material is higher and it is suitable for use as the cutter mold.
   There is one oil pump connect the cutter,it will provide the power for the cutter.

This machine control by PLC,it can automatically measure the length of the product and the quantity of production, the operation is simple, workers only need to input the length and quantity of production, the machine can work automatically.





Specification



Main Forming machine Forming steps 12steps
Shaft diameter 40mm
Machine stand Individual Arch Plate
Machine frame steel plate welded
roller material Cr12
shaft material 45# steel with quenching and tempering
Work speed 0-25m/min
Transport By gear
Power of main machine 4kw
Voltage 380V-50HZ-3P(as required)
Machine dimension 20*1.5*1.2m
Machine weight About 3.5T
Machine color Yellow and blue(as required)
Usage: In order to keep the product shape and precision, adopts welded sheet structure,
motor reducer drive, chain transmission,roller was chromed which can keep the
molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.






Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
