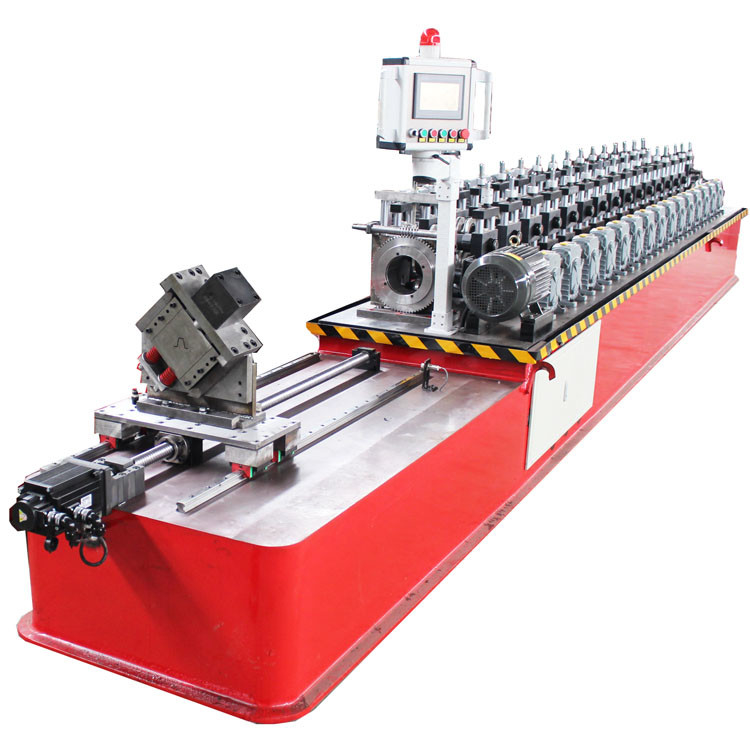

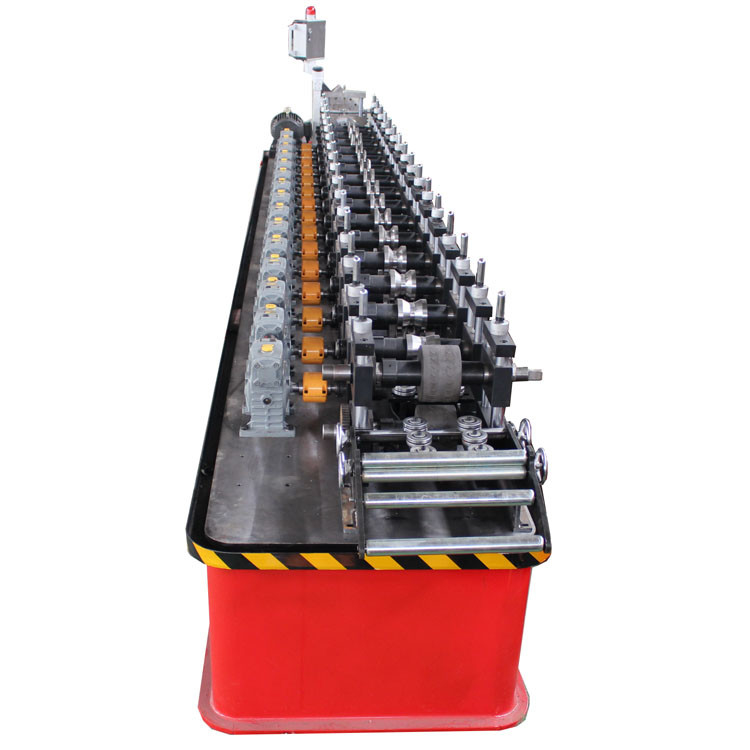

High Speed Metal Stud Omega Roll Forming Machine Ppgi

High Speed Metal Stud Omega Roll Forming Machine Ppgi
High Speed Metal Stud Omega Roll Forming Machine Ppgi

Large Image :  High Speed Metal Stud Omega Roll Forming Machine Ppgi

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Omega
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Omega Roll Forming Machine High Speed Metal Stud Roll Forming Machine Raw Material: PL,GL,PPGL,PPGI
Voltage: 380V/50HZ3Phase(as Customer’s Request) Roller Fixer: Guide Column
Frame: Middle Plate Welded Frame Thickness: 25mm
Drive Mode: Gear Material Of Rollers: GCr12MoV
High Light:

ppgi omega roll forming machine

,

plc omega roll forming machine

,

high speed plc roll forming machine

Omega Roll Forming Machine High Speed Metal Stud Roll Forming Machine



   Omega Roll Forming Machine High Speed Metal Stud Roll Forming Machine, in ceiling and drywall making. Omega channel is the weight bearing channel, so normally we will design with dotting. This device uses a high level of color steel automatic control software, production information management. The entire unit automation control system uses a highly integrated network, automation systems and better performance.Omega roll forming machine cutter portion is driven by a hydraulic cylinder to move up and down the tool, you can put steel cut off. Corrugated steel sheet Roll forming machine production process is as follows: steel roller into the molded part after molding to-pressure part, pressed into an equidistant one, the cutter is responsible for cutting to length.





Specification



No. Item Description
1 Core Components Motor, Engine, PLC
2 Shaft material 45#steel hardening and tempering
3 Cutting Mode Hydraulic Cutting
4 Material of shafts 40Cr steel with tempering
5

Cutting length tolerance

±1mm
6 Diameter of shafts φ40mm
7

Number of rollers for omega

11 rollers

8

Main power

3kw
9

Power Supply

380V, 50HZ, 3 PHASES

10

Cutting Accuracy

±2 mm

11

Driving Mode

Single Chain 1 inch





Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
