Place of Origin:
CHINA MAINLAND
Brand Name:
CANGZHOU FMS
Certification:
ISO CE

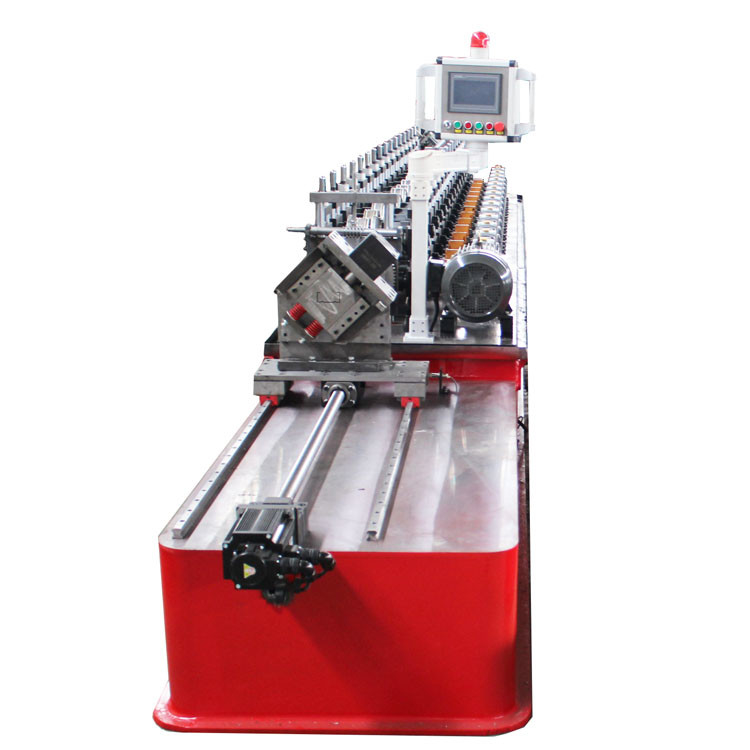

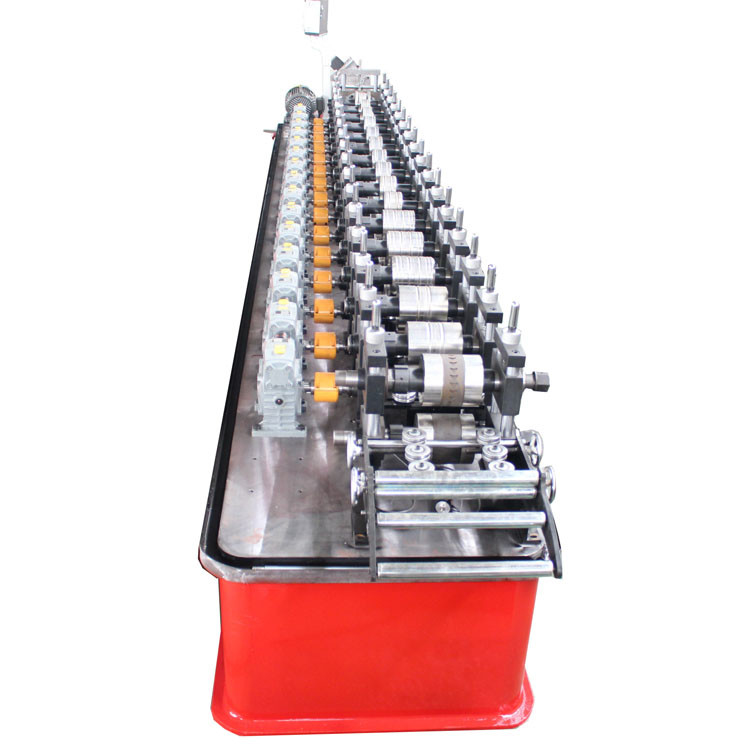

Metal Stud And Track Forming Machine For Light Construction Use
Metal Stud and Track Forming Machine for Light construction use. Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction work.This is Automatic Portable Steel Stud And Track Roll Forming Machine , can make stud and track , omega , angle , ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .
Specification
|
1
|
Raw Material
|
Type
|
Galvanised Steel
|
|
Thickness
|
0.3-0.6mm
|
||
|
Yield Strength
|
235Mpa to 350Mpa
|
||
|
2
|
Decoiler
|
Operation
|
Manual/ Hydraulic for option
|
|
Weight Capacity
|
5Tons
|
||
|
3
|
Main Body
|
Roller Station
|
12 rows
|
|
Diameter of Shaft
|
50-60mm
|
||
|
Material of Rollers
|
Cr12
|
||
|
Material of shaft
|
45# steel with chrome 0.05mm
|
||
|
Transmission
|
Gear
|
||
|
4
|
Cutter
|
Operate
|
Automatic Hydraulic / Electric type
|
|
Blade material
|
Cr12MOV
|
||
|
5
|
Power
|
Pump motor for cutter
|
4KW
|
|
Main Motor
|
5.5KW
|
||
|
Voltage
|
380V 50Hz 3 Phase
|
||
|
6
|
|
Electric Box
|
PLC control system , Inverter
|
|
Language
|
English / Chinese
|
||
|
7
|
Speed
|
30-50M/min
|
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
