Place of Origin:
CHINA MAINLAND
Brand Name:
CANGZHOU FMS
Certification:
ISO, CE
Model Number:
Cut To Length Line

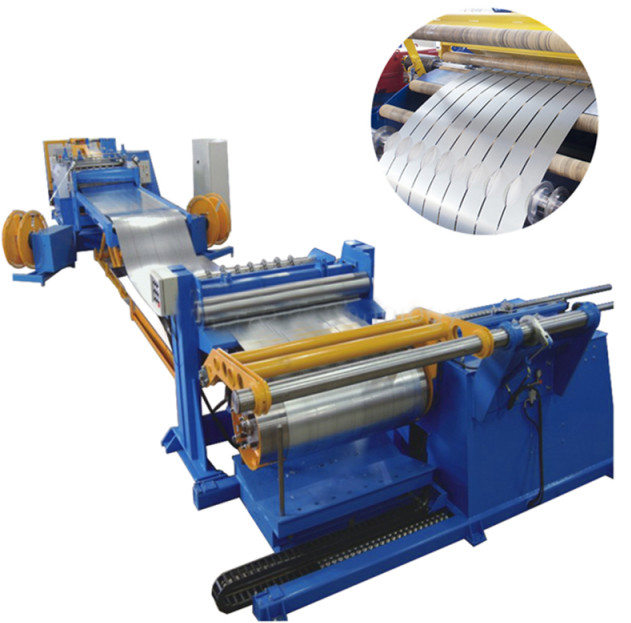

0.3-2X1250mm Metal Plate Slitting Line Machine Fully Automatic
Simple slitting line is a length ways cutting production line, for cutting metal sheet stirp.

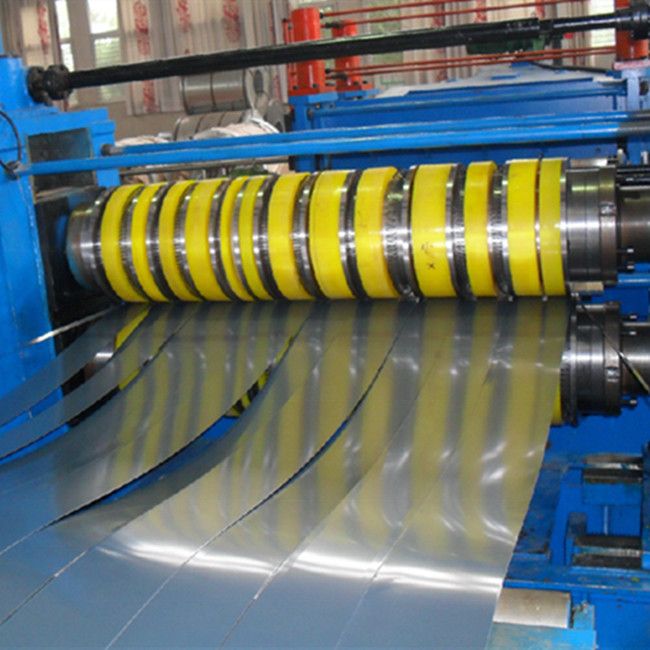

Slitting line can uncoil metal sheet strip coil, then slit(cut) the metal sheet strip longitudinal, then rewind the stilted metal sheet strips, for getting narrow metal sheet strip coils.Slitting line are for metal sheet strip coil cutting service center, press machine stamping & punching, metal sheet strip processing,etc.
| No. | Item | Description |
| 1 |
Material of processible coiled plate |
cold-rolled steel |
| 2 |
Thickness of coiled plate |
0.3-2.0mm |
| 3 |
Width of coiled plate |
400-1250mm |
| 4 |
Slitting speed |
0-30m/min |
| 5 |
Knife pivot diameter of slitting |
120mm |
| 6 | Coil Weight | 5 tons - 10 tons |
| 7 | Thickness |
1-5mm |
| 8 | Core Components | PLC, Motor |
| 9 |
Power |
380V three-phase electricity: 50Hz |
Application
It is suitable for longitudinal shearing of metal strips and rewinding the slitted narrow strips into rolls. It is widely used in transformers, motors, home appliances, automobiles, building materials, packaging industries, etc.
Advantage
It is composed of uncoiling (unwinding), leading positioning, slitting and slitting, coiling (rewinding), etc. It has the characteristics of convenient operation, high cutting quality, high material utilization, and stepless speed regulation of cutting speed.
