Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Highspeed Furring Omega Channel Making Forming Machine PCL Control | Raw Material: | PL,GL,PPGL,PPGI |
|---|---|---|---|
| Machine Body Fram: | Archway | Roller Material: | Cr12 |
| Number Of Forming Steps: | 12 Steps With 2 Leveling Shafts | Shaft Diameter: | 40mm |
| Main Motor: | 4kw | Speed: | 25m/min |
| High Light: | plc control automatic forming machine,furring omega channel automatic forming machine,plc light keel roll forming machine |
||

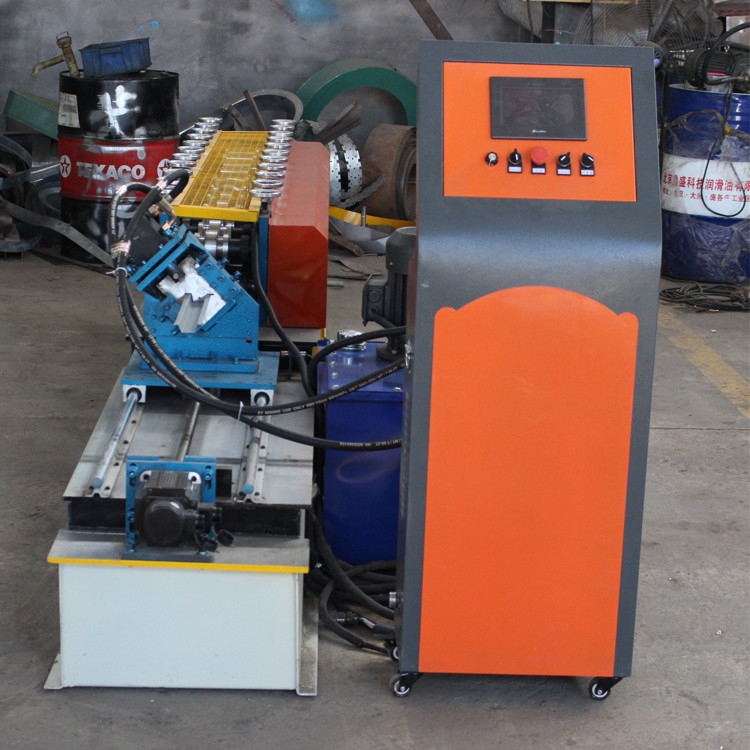

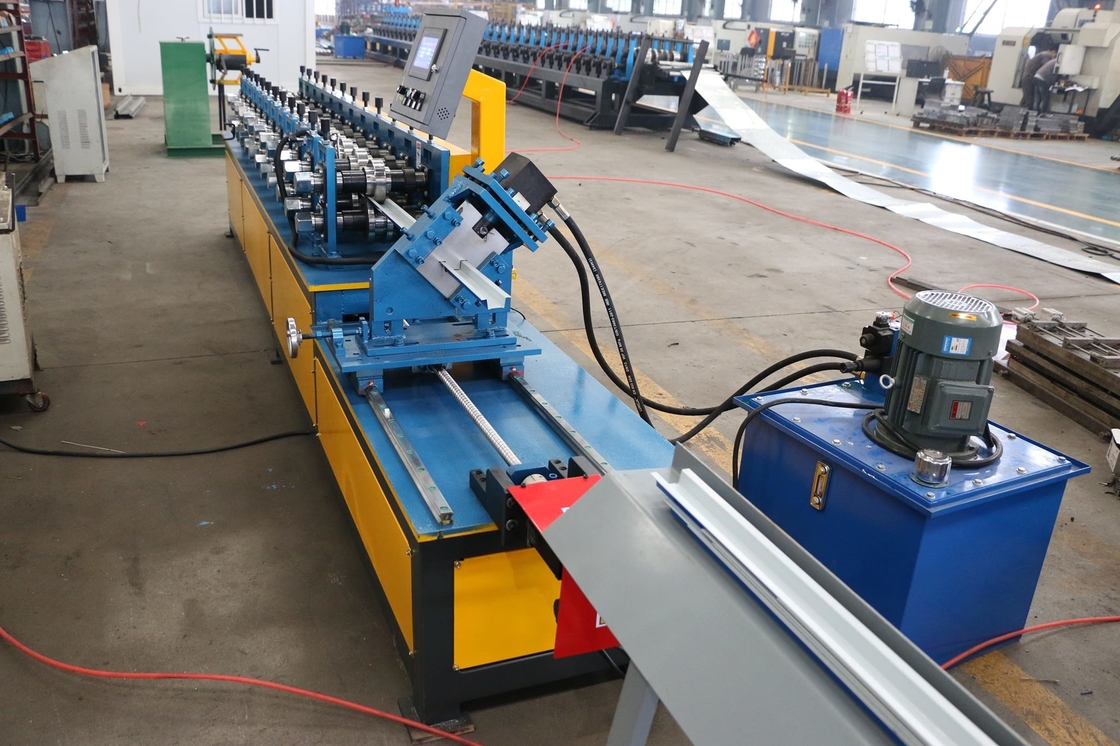

Automatic Highspeed Furring Omega Channel Making Forming Machine PCL Control
Omega in one roll forming machine, It can work separately because it has an independent control system.Two lines working at the same time can effectively use the machine to improve production efficiency.
Omega steel structures have beautiful appearance and strong structure, and they are also widely used nowadays. waterproof structure, moisture resistance and corrosion resistance , Fire resistance, robustness and stability, random intervals, multiple disassembly and assembly and other high-quality functions to meet the opposite needs of customers, so Omega shaped steel is widely used in real life.
Specification
| No. | Item | Description |
| 1 | Core Components | Motor, Engine, PLC |
| 2 | Shaft material | 45#steel hardening and tempering |
| 3 | Cutting Mode | Hydraulic Cutting |
| 4 | Cutter Material | Cr12 |
| 5 |
Cutting length tolerance |
±1mm |
| 6 | Production Capacity | 0-50m/min |
| 7 |
Dimension(L*W*H) |
11000*800*1600Mm |
| 8 |
Drive Motor Power |
7.5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 50HZ, 3 PHASES |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
