Product Details:
Payment & Shipping Terms:
|
| Product Name: | Coil Decoiling And Slitting Machine Line Metal Coil Processing Production Line | Core Components: | Pump, Gearbox, Gear, Chain, Blade, Motor |
|---|---|---|---|
| Capacity: | 25Ton | Material: | Galvanized Plate |
| Application: | Raw Material Processing | Weight (KG): | 10000 |
| Rolling Speed: | 0-60 M/min | Warranty Of Core Components: | 1 Year |
| High Light: | decoiling steel coil slitting machine line,gearbox steel coil slitting machine line,gearbox steel coil slitting line machine |
||

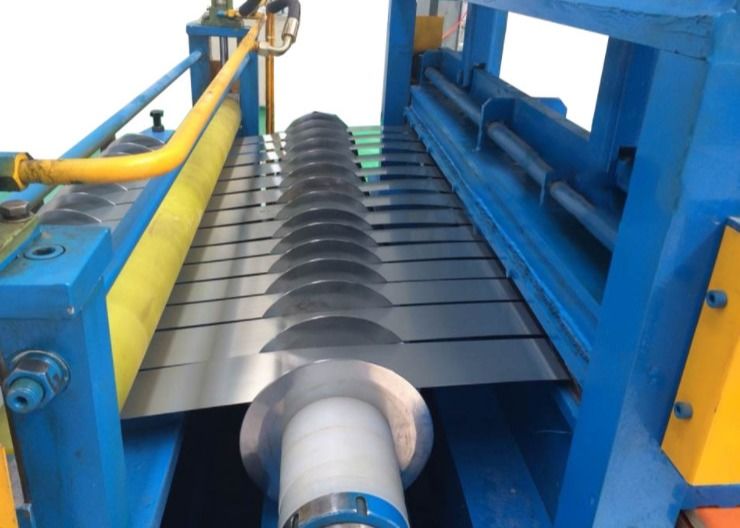

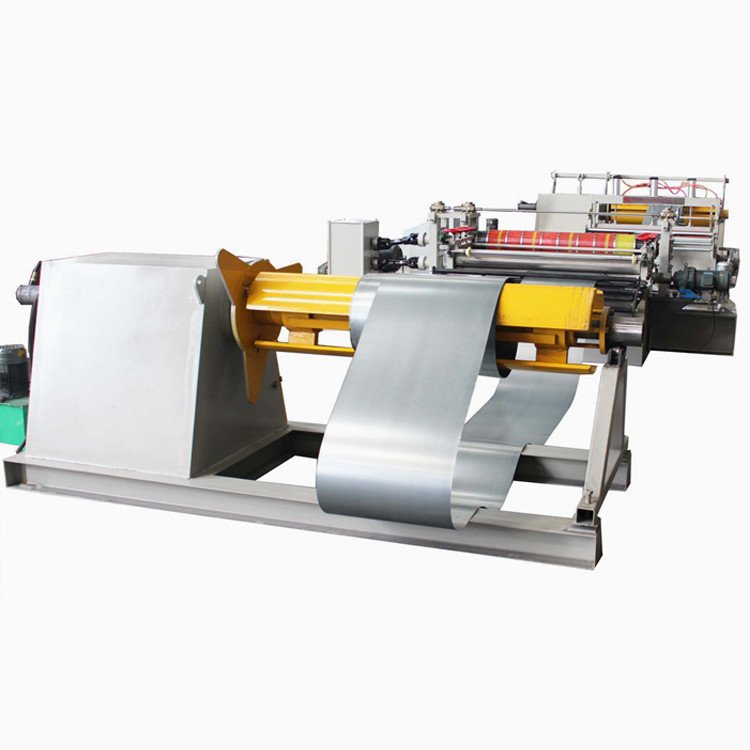

Coil Decoiling And Slitting Machine Line Metal Coil Processing Production Line
The coil slitting line is reasonable in layout, easy operation, high level of automation, high productivity which could process coil,silicon coil, stainless coil, colored coil,aluminum coil,galvanize coil or painted coil.The line is broadly applying in metal plate processing industry,like car,container, household application, packing,construction material,etc. this line is composed of coil car,uncoiler,slitting machine, scrap recoiler, tension unit,recoiler and unloading coil car, hydraulic system,ec. This line can be adjusted to do recoiling or dividing work to meet customer's demand.
specifications
|
item
|
value
|
|
Type
|
simple slitting line
|
|
Condition
|
New
|
|
Material
|
PPGI, GI, Aluminum, Carbon steel, Hot Rolled, Cold Rolled, Stainless steel
|
|
Processing Thickness
|
0.2-1.5mm
|
|
Processing Width
|
1250mm
|
|
Slitting Accuracy
|
±0.05 mm
|
|
Slitting Speed
|
0-60m/min
|
|
capacity
|
25Ton
|
|
Coil Inner Diameter
|
480-520mm
|
|
Coil Outer Diameter
|
≤1400 mm
|
|
Max. Slitting Numbers
|
5-10pcs
|
|
Slitting Coil Width
|
≥20 mm
|
|
Voltage
|
380V 50Hz 3Phases
|
.
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
