Slotted Corner Bead Angle Roll Forming Machine Plc

Slotted Corner Bead Angle Roll Forming Machine Plc
Slotted Corner Bead Angle Roll Forming Machine Plc

Large Image :  Slotted Corner Bead Angle Roll Forming Machine Plc

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Slotted Angle Corner Bead Roll Forming Machine PLC Voltage: 380V 50Hz 3phases
Key Selling Points: Long Service Life Speed: 18-20m Per Min
Control System: PLC Cutter: Gcr12
Hydraulic Oil: 46# Shaft Material: 40Cr Steel
Material Thickness: 0.3-0.8mm
High Light:

slotted angle roll forming machine

,

angle roll forming machine plc

,

corner bead angle forming machine

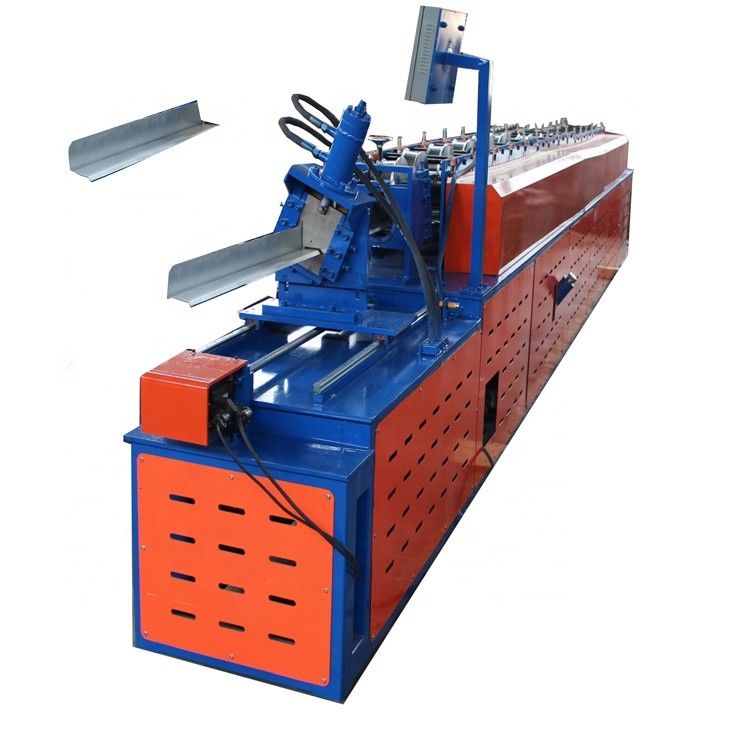

Slotted Angle Corner Bead Roll Forming Machine PLC

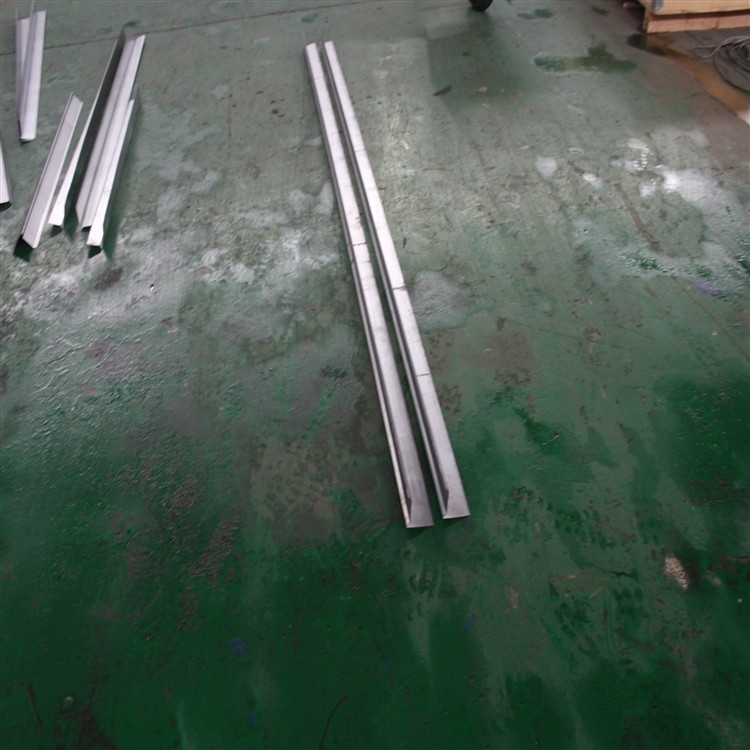

Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 30*30 mm, 40*40 mm,. Product thickness common between 1-3 mm


 Specification


Raw material Galvanized steel
Thickness 0.3-0.8mm
Inner Diameter 450-550mm
Max Coil width 300mm
Capacity 1.5T
Forming steps 10 rollers
Shaft diameter 40mm
Design type Memorial arch
roller material GCr12MoV steel
shaft material 45# steel
Work speed 0-25m/min
Transport By gear
Power of main machine 3kw
Type of cutting Hydraulic
Cutting tolerance ±1mm
Cutter Gcr12
Hydraulic oil 46#
Hydraulic power 3kw
PLC Brand Delta(as your requirement)

Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
