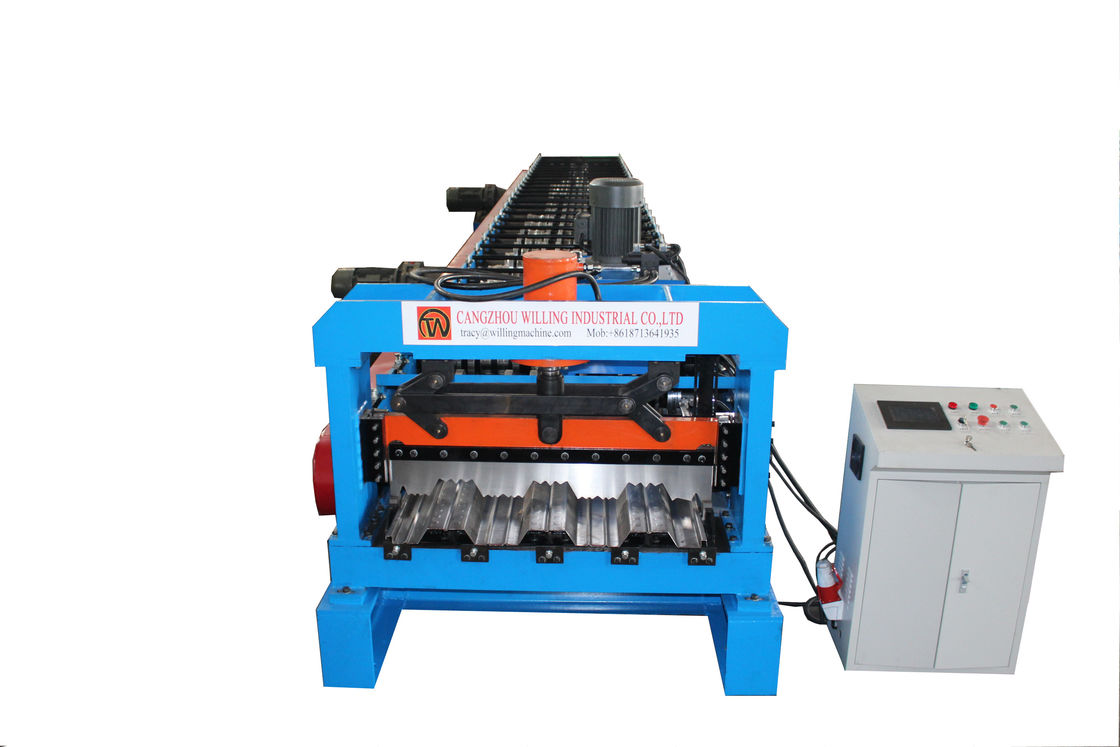

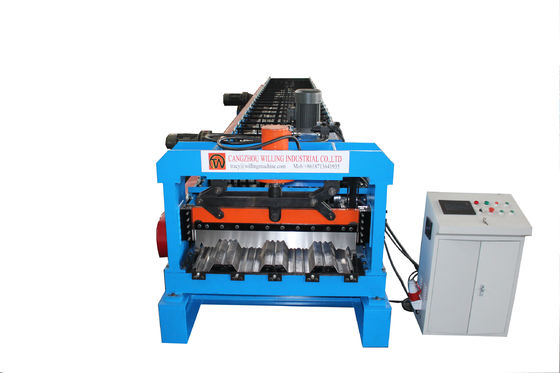

Multi Story 24stations Floor Deck Roll Forming Machine Steel Plate Tile Making

Multi Story 24stations Floor Deck Roll Forming Machine Steel Plate Tile Making
Multi Story 24stations Floor Deck Roll Forming Machine Steel Plate Tile Making

Large Image :  Multi Story 24stations Floor Deck Roll Forming Machine Steel Plate Tile Making

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Steel Plate Deck Floor Tile Making Machine For European Market Roller Stations: 45#steel Hard Chrome Coated
Dimension(l*w*h): 7500*1700*1600Mm As Per Customer Reqeust Warranty: 1 Year
Cutting Type: Hydraulic Cutting Control System: PLC
Working Speed: 5-12m/min Material Thickness: 0.8-1.5mm
Marketing Type: Ordinary Product Total Power(KW): 7.7kw
High Light:

multistory floor deck roll forming machine

,

24stations floor deck roll forming machine

,

multi story floor deck forming machine

Steel Plate Deck Floor Tile Making Machine For European Market

It is widely used in multi-story and high-rise steel structures, and is the most widely used floor method in domestic multi-story and high-rise steel structures (profiled steel plate-concrete composite structure). It adopts hot-dip galvanized steel sheet to be formed by rolling and cold bending. Its characteristics are construction, convenience and short construction period, saving steel bars, double as steel formwork, low cost and so on.
Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time,and can be used to lay the profiled steel plate on multiple floors, and the flow water construction of the layered concrete slab.


Specification


name decking floor making machine
Roller steps 24 stations
Dimension 12000*1600*1550mm
Weight 11t
Forming thickness 0.8-1.2mm
Large frame 450mm H-Beam
Diameter of roller Φ90mm
Middle plate 20mm
transport chain
Voltage 380V 60HZ 3 PH or customized by your request
Motor power 11kw+11kw
Pump station power 3kw/(5.5kw hydraulic motor)
Transducer power 11.5kw
Cutting system Hydraulic cutting by pillar type
Material of cutting Cr12
Control system PLC brand :Delta / Panasonic
Length error : ±1mm
work speed 8-12m/min


Application

The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete.

Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity,

it economized steel and cuts down investment accordingly.

We can also supply the customized machines.
