Durable Composite Roof Sheet Rolling Machine Deck Floor Roll Forming Machine

Durable Composite Roof Sheet Rolling Machine Deck Floor Roll Forming Machine
Durable Composite Roof Sheet Rolling Machine Deck Floor Roll Forming Machine

Large Image :  Durable Composite Roof Sheet Rolling Machine Deck Floor Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: CE,ISO
Model Number: 46/225
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 50 days
Payment Terms: T/T, Western Union
Supply Ability: 10 sets per month
Detailed Product Description
Product Name: Composite Flooring Profile 46 MM Depth Decking Sheet Floor Deck Roll Forming Machine Raw Material: Galvanized
Raw Material Thickness: 0.8-2.0MM After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Field Installation,commissioning And Training
Condition: New Weight: About 13 Tons
High Light:

metal roof roll forming machine

,

steel sheet making machine

Composite Flooring Profile 46 MM Depth Decking Sheet Floor Deck Roll Forming Machine


This deck floor with 46 rib was a composite flooring profile, introduced in the early years and is still popular today for its primary characteristics of being nestable, easily transported, simple and efficient.



Profile

Durable Composite Roof Sheet Rolling Machine Deck Floor Roll Forming Machine 0

Equipment Detailed Parameters:



No. Item Description
1 Coil Galvanized
2 Raw Material Thickness 0.8 mm-2.0 mm
3 Working Speed 8-15 m/min ( not including the cutting time)
4 Roller Station 22 Raws
5 Dimension (L*W*H) 13000 mm*1500 mm*1500 mm
6 Machine Weight 9500 KG
7 Electrical Control System Panasonic PLC (can be customized)
8 Drive Motor Power 7.5 KW
9 Hydraulic Station Power 5 KW
10 Power Supply 380V, 60HZ, 3 PHASES(can be customized)
11 Cutting Accuracy ±2 mm
12 Driving Mode Single Chain 2 inch
13 Material of Shaft 80 mm 45#steel forged
14 Material of Roller 45# Steel Finish Machining, Plated Hard


Components and Technical Specification
Manual Uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 8 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.

Feeding Table

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

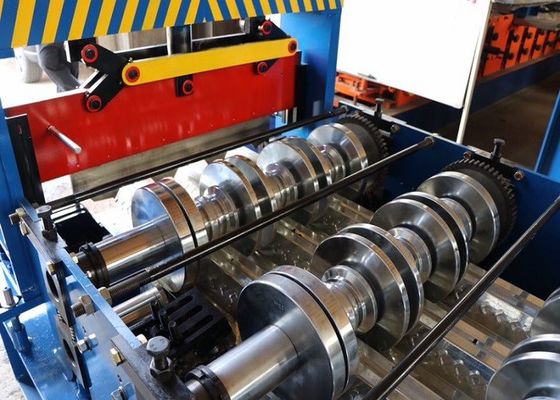

Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC:Delta


Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.Material of blades: Cr12,quenching treatment.

Output Table
It adopts welded & screw steel and supported roller to transmit the products,which is used to collect the finished products.

Machine loading
All machines need one 40ft container to hold.
