PLC Sheet Coil Cutting Machine Slitting Line Metal 0.5 - 2 Mm

PLC Sheet Coil Cutting Machine Slitting Line Metal 0.5 - 2 Mm
PLC Sheet Coil Cutting Machine Slitting Line Metal 0.5 - 2 Mm

Large Image :  PLC Sheet Coil Cutting Machine Slitting Line Metal 0.5 - 2 Mm

Product Details:
Place of Origin: China
Brand Name: FMS
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 50days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Warranty Of Core Components: 1 Year Cutting Speed(m/min): 10 - 100 Mm
Voltage: 380v/50hz/3ph Thickness: 0.5-2MM
Slitting Speed: 20-30m/min Coil Width: 1600mm
Key Selling Points: High-accuracy Control System: PLC
High Light:

sheet coil cutting machine plc

,

2mm sheet coil cutting machine

,

0.5mm sheet metal coil cutting machine

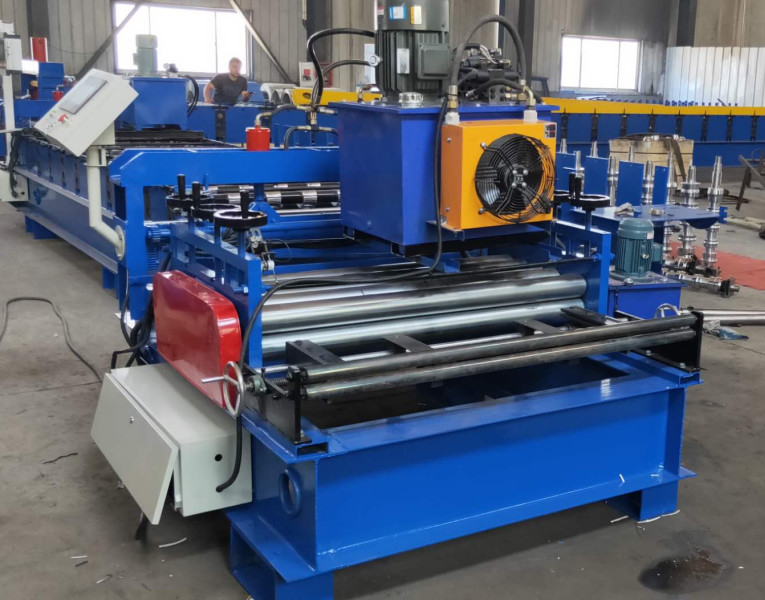

Sheet Coil Cutting Machine Slitting Line Metal 0.5 - 2 Mm


Coil machine cutting line is a lengthway cutting line for devide the metal coil into several strips.

First,slitting line will uncoil the coil with a decoiler, then cut the metal sheet longitudinal.Next, the tension stand can separating the steel coil to adapt the recoiler.That can make the steel coil has back pull power.In the end, the strips can be recoil into the recoiler system.

About our metal sheet coil cutting machine slitting line

1. It is restricted to cutting relatively thin metal materials and then to narrow strips for easy using.

2. It can involve both ferrous and nonferrous metals.

3. Generally requires a high quality production tool to assure consistent quality in controlling metal width.

4. Slitting blades are designed depending on the job required. By the spacer adjustment, and cutting balde adjustment, you can make small thin coil.

Technical parameter

Material thickness

Raw material GI/ carbon steel
Material thickness 0.25-2 mm(as your request)
Coil weight ≤ 10 Tons
Coil width 500-1500 mm
Cutter shaft diameter Φ 150 mm
Cutter shaft materia 40 Cr with tempering treatment
Cutter material 9CrSi




PLC Sheet Coil Cutting Machine Slitting Line Metal 0.5 - 2 Mm 0
