Product Details:
Payment & Shipping Terms:
|
| Product Name: | Structural Steel Framing Roll Forming Line Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation |
|---|---|---|---|
| Raw Material: | PL，GL，PPGI，PPGL | Voltage: | 380/50Hz/3PH |
| Control System: | PLC | Speed: | 10-15m/min |
| Thickness: | 0.3mm-0.8mm | Main Power: | 5.5Kw |
| Pump Power: | 4KW | Roller Diamerte: | 42mm |
| High Light: | ppgl roll forming line machine,0.3mm roll forming line machine,ppgl roll forming lines |
||
Structural Steel Framing Roll Forming Line Automatic

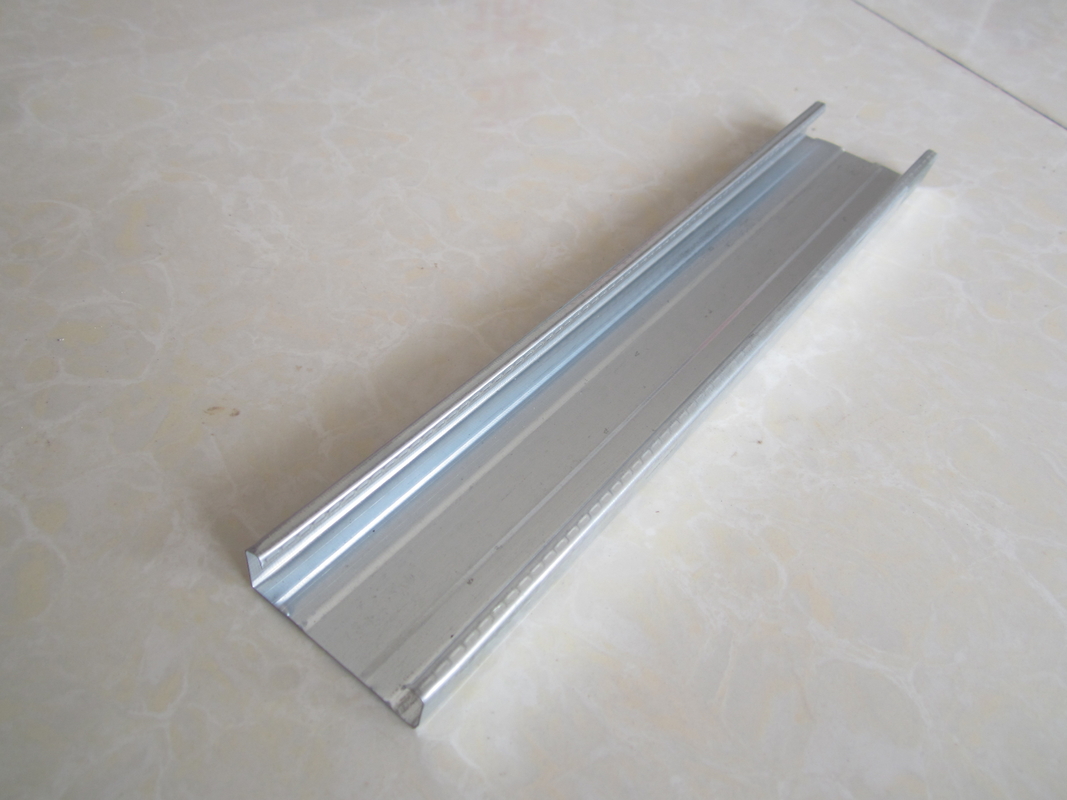

light gauge Stud and Track Roll Forming Lines produce precision studs and tracks for the booming residential and commercial construction market. The Stud and Track Roll Former employs a precision cut shear to produce precision parts on various widths and gauges of materials.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3mm-0.8mm |
| 3 | Working Speed | 10-15/min |
| 4 | Roller Station | 12 Raws |
| 5 |
Cr-Plating Size |
0.05mm |
| 6 | Cutter Standard | Cr12 |
| 7 |
Electrical Control System |
PLC |
| 8 |
Main Power |
5.5KW |
| 9 |
Power Supply |
380V/50HZ/3 PH |
| 10 |
Cutting Accuracy |
±2 mm |
| 11 |
Driving Mode |
Single Chain 1 inch |
| 12 |
Main Frame |
350mm H-Beam |
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
