Product Details:
Payment & Shipping Terms:
|
| Product Name: | Metal Stud And Track Roll Forming Machine Automatic | Raw Material: | PL,GL,PPGL,PPGI |
|---|---|---|---|
| Voltage: | 380V 50HZ 3Phase | Production Capacity: | 10-15m/min |
| Roller Material: | 45#steel Chrome Plated | Thickness: | 0.3-0.8mm |
| Shaft Material: | 45# Steel Outer Diameter: 50mm | Delivery: | 30 Working Days |
| High Light: | 0.8mm metal stud and track roll forming machine,ppgl metal stud and track roll forming machine,ppgl stud roll former |
||

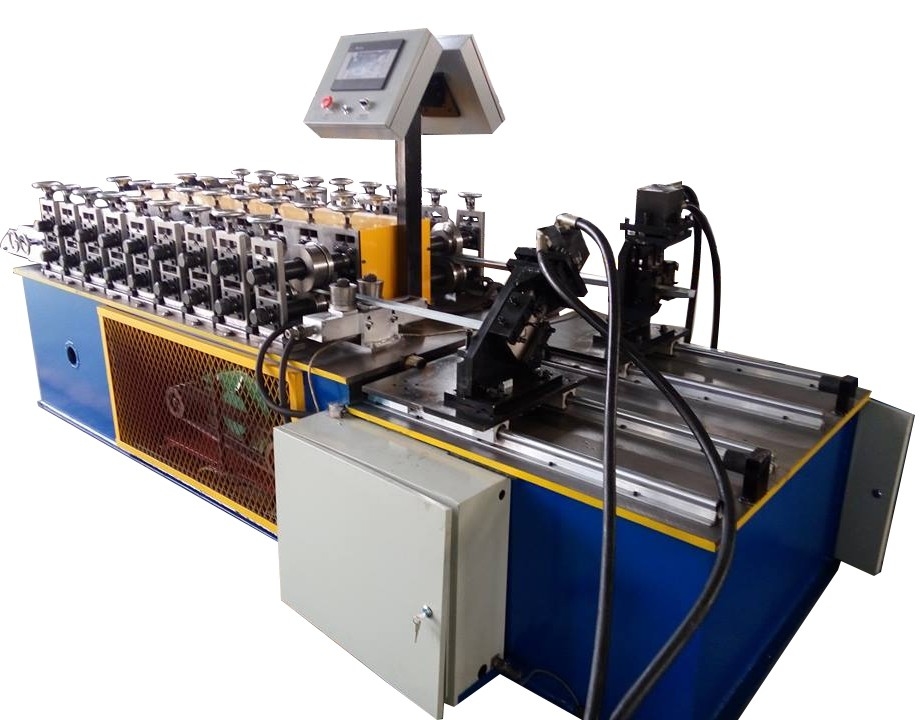

Metal Stud And Track Roll Forming Machine Automatic
Specification
|
1
|
Main structure of the machine
|
Square steel frame
|
|
2
|
Processing precision
|
Within 1.0mm
|
|
3
|
Side panel of machine
|
16mm
|
|
4
|
Voltage
|
380V 50Hz 3phases or as customer's need
|
|
5
|
Control system
|
PLC control (Delta)
|
|
6
|
Motor Power |
3Kw
|
|
7
|
Drive mode
|
Gear driver
|
|
8
|
Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
|
9
|
Rolling materials
|
45# forging steel with chromium plate
|
|
10
|
Length Tolerance
|
±2mm
|
