Product Details:
Payment & Shipping Terms:
|
| Core Components: | Motor, Bearing, Gear, Pump, Engine, PLC | Product Name: | Light Keel Steel Profile Roll Forming Machine Stud And Track Steel |
|---|---|---|---|
| Forming Speed: | 3-4m/min | Material Width: | 1200mm |
| Tile Type: | Colored Glaze Steel, Steel, Roll Forming Machine/building Material Machinery, Colored | Control System: | PLC (Delta) |
| Tile Type: | Steel | Voltage: | 380V |
| High Light: | 0.6mm profile roll forming machine,delta profile roll forming machine,0.6mm steel roll forming machine |
||

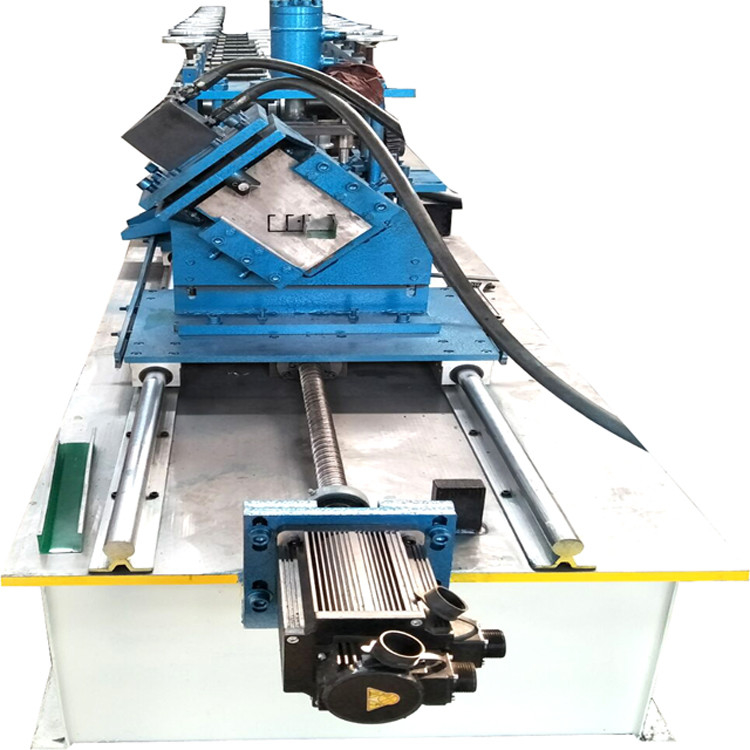

Light Keel Steel Profile Roll Forming Machine Stud And Track Steel
Light gauge roll forming machine, the light steel keel is made of high-quality continuous hot-dip galvanized sheet and strip as raw materials, and is rolled into a metal frame for construction through a cold bending process.
It is suitable for the decoration of the roof of various buildings, the inner and outer walls of the building and the scaffold The base material of the suspended ceiling. The light steel keel includes ceiling keel and partition keel according to the purpose, and V-shaped, C-shaped, T-shaped, L-shaped and U-shaped keels according to the cross-sectional form.
Equipment Detailed Parameters
|
No
|
||
|
1
|
Control system | HMI & PLC control panel |
|
2
|
|
45#steel Hard Chrome Coated |
| 3 | Rows of rollers | 18rows |
| 4 | Blade Material | CR12 with heat treatment HRC60-62 |
| 5 |
Motor Power
|
5.5 kw forming system |
| 6 | Thickness of raw material | 0.5-0.6mm |
|
7 |
Material of main shaft |
45# steel finishing machining and then slack |
| 8 | Diameter of shaft | ￠70mm |
|
9
|
Voltage | 380V 50Hz 3phases |
| 10 | Roller material | C45 steel |
| 11 | Power | 4KW |
