Wall And Ceiling Triangle Frame PLC 0.3mm Steel Stud Roll Forming Machine

Wall And Ceiling Triangle Frame PLC 0.3mm Steel Stud Roll Forming Machine

0.3mm steel stud roll forming machine

plc steel stud roll forming machine

0.3mm steel roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

Triangle Frame

Contact Us
Request A Quote
Wall And Ceiling Triangle Frame PLC 0.3mm Steel Stud Roll Forming Machine
Wall And Ceiling Triangle Frame PLC 0.3mm Steel Stud Roll Forming Machine Wall And Ceiling Triangle Frame PLC 0.3mm Steel Stud Roll Forming Machine Wall And Ceiling Triangle Frame PLC 0.3mm Steel Stud Roll Forming Machine Wall And Ceiling Triangle Frame PLC 0.3mm Steel Stud Roll Forming Machine
Product Details
Product Name:
Steel Wall And Ceiling Triangle Frame Stud And Track Roll Forming Machine
Use:
Roofs And Walls Panel
Thickness:
0.3-0.8mm
Voltage:
380V 50Hz 3phases
Speed:
18-20m Per Min
Control System:
PLC
Weight:
4T
Powder:
3.5KW
Highlight:

0.3mm steel stud roll forming machine

,

plc steel stud roll forming machine

,

0.3mm steel roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control online Video

High Efficiency Stud And Track Roll Forming Machine 50 M / Min PLC Control

Get Best Price
Good price Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness online Video

Metal Decorative Stud And Track Roll Forming Machine 0.3mm - 0.8mm Thickness

Get Best Price
Good price Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ online Video

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Get Best Price
Good price Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness online Video

Commercial Acoustic Stud And Track Roll Forming Machine 20-30 GA Thickness

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

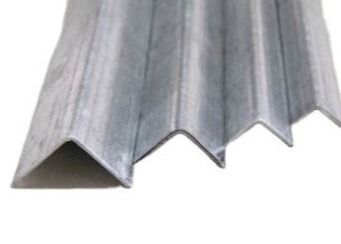

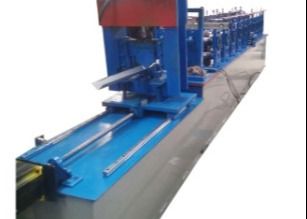

Steel Wall And Ceiling Triangle Frame Stud And Track Roll Forming Machine



Triangle keel machine uses strip steel as raw material and is formed by continuous cold rolling to produce complex cross-section profiles products include: light steel keel, paint keel, cassette keel, various building profiles, steel structures, steel-lined door frame profiles etc.


 Specification


No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.8mm
3 Working Speed 18-20 m/min
4 Roller Station 16 Raws
5

Dimension (L*W*H)

 6500 mm*1300 mm*1100 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC
8

Drive Motor Power

 4 KW
9

Hydraulic Station Power

 4 KW
10

Power Supply

240V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



The light steel keels are widely used in hotels, stations, playgrounds, shopping malls, factories, terminals, train stations,office buildings, old building renovation, interior decoration, ceilings and other places.



Advantage


The light steel keel ceiling has the advantages of light weight, high strength, adaptability to waterproof. It also has the advantages of short construction period and simple construction.


Wall And Ceiling Triangle Frame PLC 0.3mm Steel Stud Roll Forming Machine 0
