Product Details:
Payment & Shipping Terms:
|
| Product Name: | Multi-Function Metal Coil Leveling Slitting And Cut To Length | Cutting Material: | Galvalume,Galvanized, PPGI, Aluminum |
|---|---|---|---|
| Material Thickness: | 0.2mm -1.5mm | Working Speed: | 8m/min - 30 M/min |
| Coil Weight: | 5 Tons / 7 Tons / 10 Tons | Slitting Pcs: | 2 - 30pcs |
| Machine Weight: | 13000 KG | Cutting Width Precision: | ± 0.01 - ± 0.05 Mm |
| High Light: | 1.5mm cut to length and slitting line,1.5mm automatic steel coil slitting line,PPGI cut to length and slitting line |
||

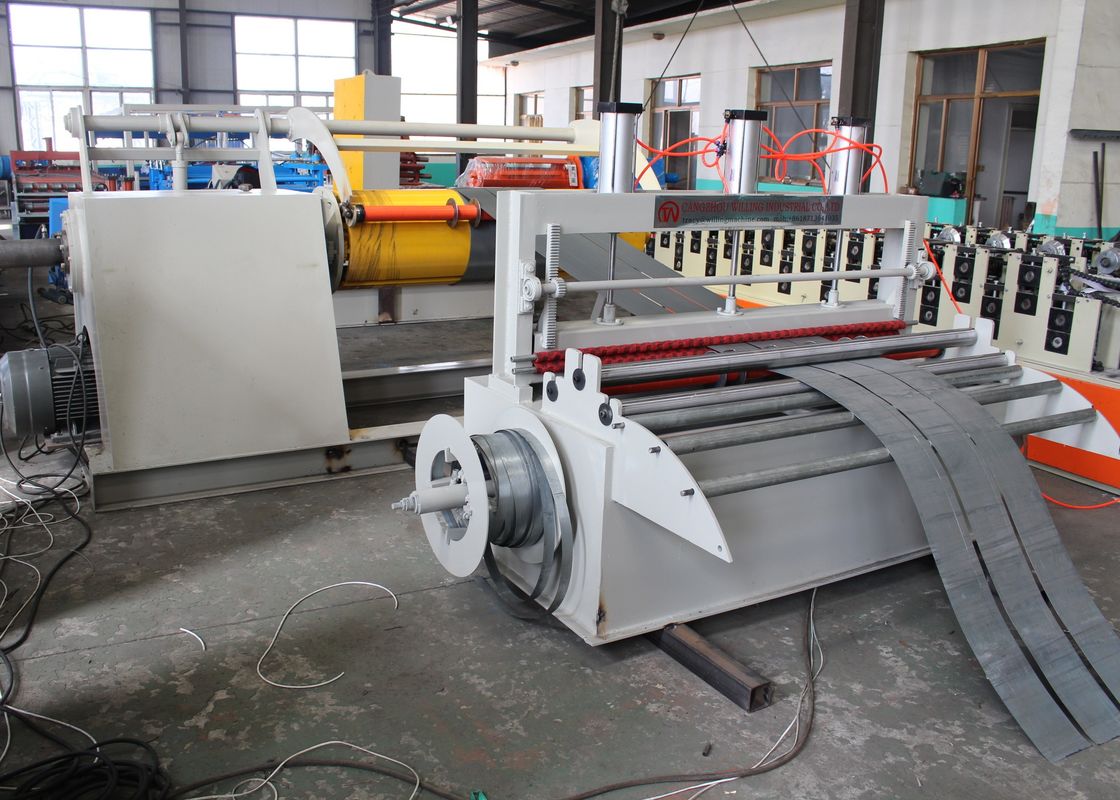

Multi-Function Metal Coil Leveling Slitting And Cut To Length
The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well .
Specifications
| No. | Item | Description |
| 1 Main Specification | 1 Raw Material | Galvanized, Aluminum,Color steel, Handness 235MPa - 485MPa |
| 2 Raw Material Thickness | 0.2 mm - 3.0 mm | |
| 3 Raw Material Width | 600 mm - 1600 mm | |
| 4 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 5 TapeOuter Diameter | φ 1600 mm | |
| 6 Coil Weight | 5 tons - 10 tons | |
| 7 /Slitting No. | Max 30 pcs | |
| 8 The Highest Slitting LineSpeed | 8 m/min - 30 m/min | |
| 9 Minimum Cutting Line Width | 35 mm | |
| 10 Cutting Width Precision | ± 0.01 - ± 0.05 mm | |
| 11. Rated Operational Voltage | 380 V, 3 Phase, 60 Hz | |
| 12. Total Weight | 14000 KG | |
| 12. Working Space(L*W) | 20000 mm*6000 mm | |
| 2 Decoiler Machine Specification | 1 Tape Outer Diameter | Max φ 1600 mm |
| 2 Tape Width | 600 mm - 1600 mm | |
| 3 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 4 Coil Weight | 5 /7/10 tons | |
| 5 Max Working Speed | 8 m/min - 30 m/min | |
| 6 Tape Tight Range | φ 480 mm - φ 530 mm | |
| 7 Shaft Diameter | φ180 mm | |
| 3 Decoiler Machine Specification | 8 Roller Effective Length | 1600 mm |
| 9 Drive Moter Power | 5 KW | |
| 10. Loading Car Diameter | φ 700 mm - φ 1500 mm | |
| 11 Loading Car Weight | 5 /7/ 10 tons | |
| 12 Car Speed | About 4 m/min | |
| 4 Slitting Machine Specification | 1 Cutting Width | Max φ 1600 mm |
| 2 Cutting Thickness | 0.2 mm - 2.0 mm | |
| 3 Cutter Shaft Diameter | φ180 mm | |
| 4 Cutter Shaft Material | Cr 40 | |
| 5.Cutter Size | 200 mm*300 mm*15 mm | |
| 6 Cutter Material | Cr12MoV | |
| 7 Cutter Spacer Size | 180 mm*240 mm*15 mm | |
| 8 Drive Moter | 15 kw | |
| 9 Cutting No. | 2-30 pcs | |
| 10 Cutter No. | Max 32 pcs | |
| 5 Planing Machine | 1 Shaft Diameter | φ 130 mm |
| 2 Shaft No. | Up 2 rows, down 3 rows | |
| 3 Mid Plate Thickness | 40 mm | |
| 4 Mulch Applicator Diameter | φ 130 mm | |
| 5 Film Width | 1600 mm | |
| 6 Tension Table | 1 Segregation Shaft | 3 pcs, 1 pcs pressure shaft |
| 2 Air Cylinder | 3 pcs | |
| 7 Recoiler Specification | 1 Tape Outer Diameter | Max φ 1600 mm |
| 2 Tape Width | 600 mm - 1600 mm | |
| 3 Tape Inner Diameter | φ 480 mm - φ 530 mm | |
| 4 Coil Weight | 5 - 10 tons | |
| 5 Max Working Speed | 8 m/min - 30 m/min | |
| 6 Tape Tight Range | φ 485 mm - φ 530 mm | |
| 7 Shaft Diameter | φ 180 mm | |
| 8 Roller Effective Length | 1750 mm | |
| 9 Drive Moter Power | 30 kw | |
| 8 Recoiler Specification | 10 Loading Car Diameter | φ 1000 mm - φ 1750 mm |
| 11 Loading Car Weight | Max 10 tons | |
| 12 Car Speed | About 4 m/min | |
| 9 Electrical Control System | 2 sets. Computer Control System is Siemens PLC. | |
| 10 Edge Collecting Machine | 1 Drive Moter | 3 kw |
| 2 Collecting Material Width | Max 20 mm | |
| 3 Double Edge Width | 400 mm | |
Application

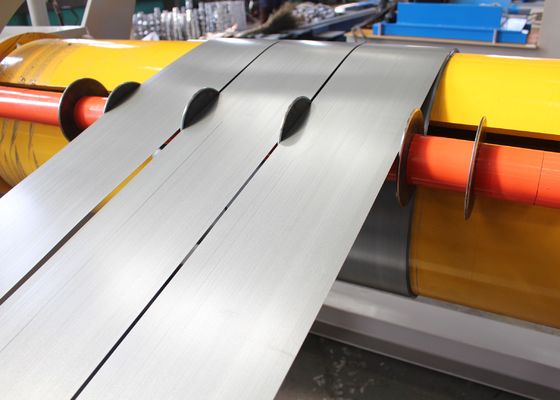

The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries.
Advantage
Our split line is to maintain high accuracy while allowing instant changes. Large-capacity coilers and full control of machinery, using the most advanced technology to supervise quality control and automation, we provide production lines on time and on budget!
