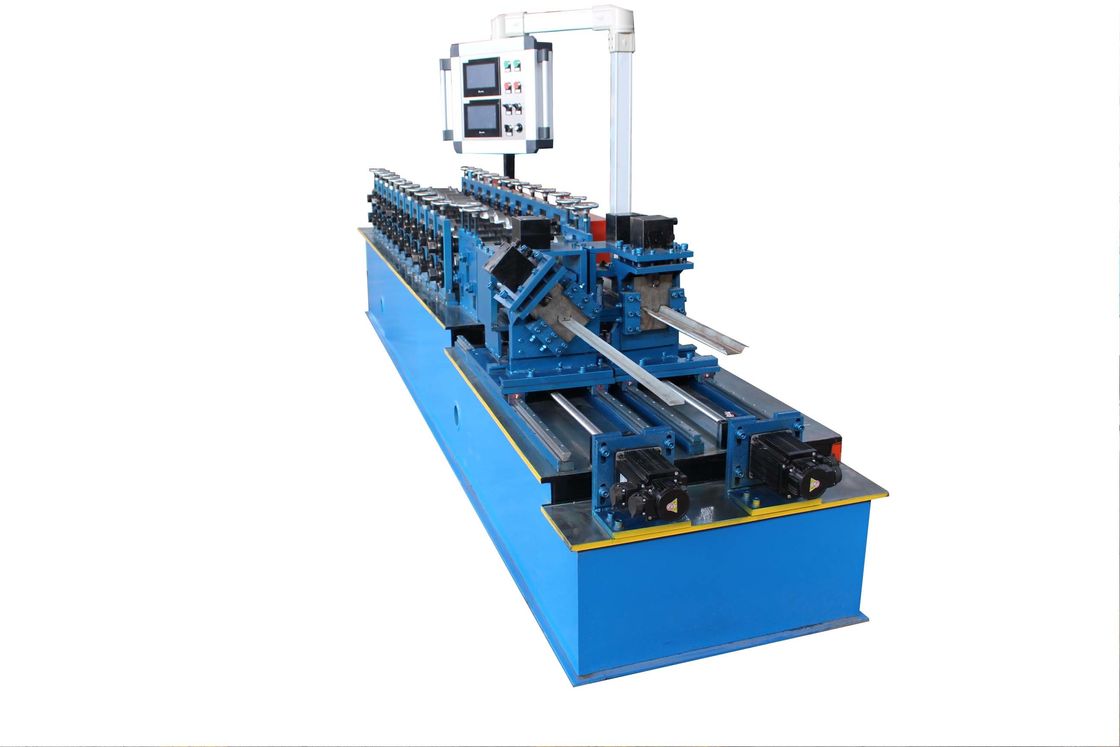

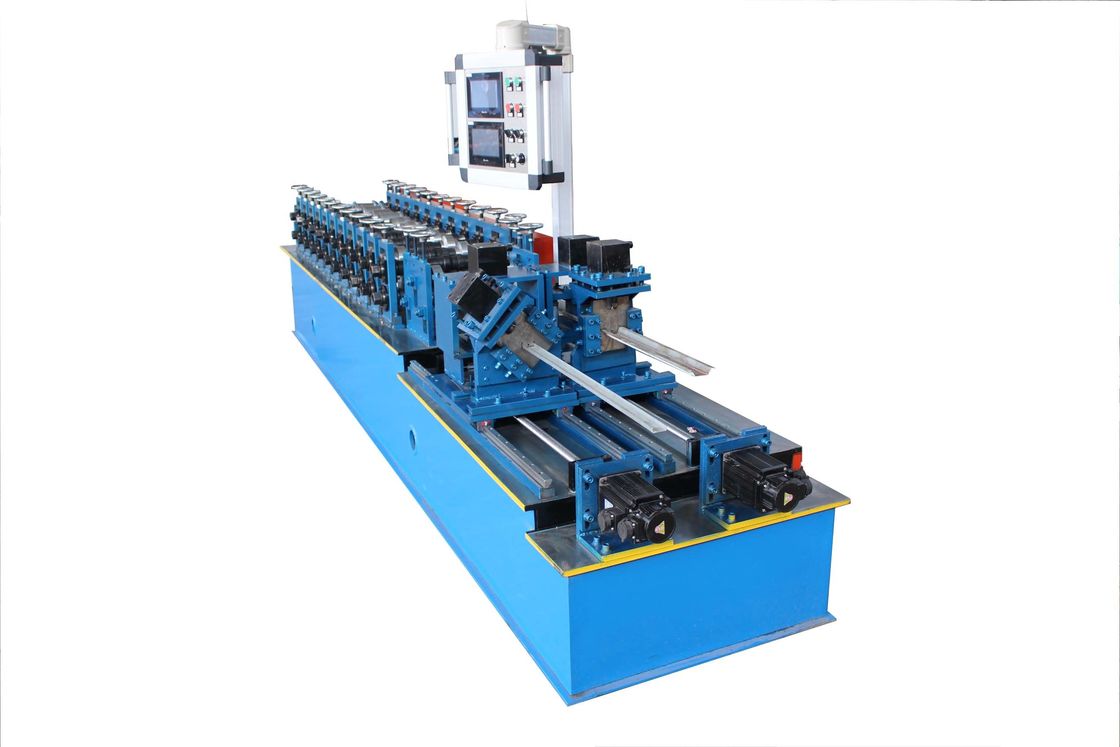

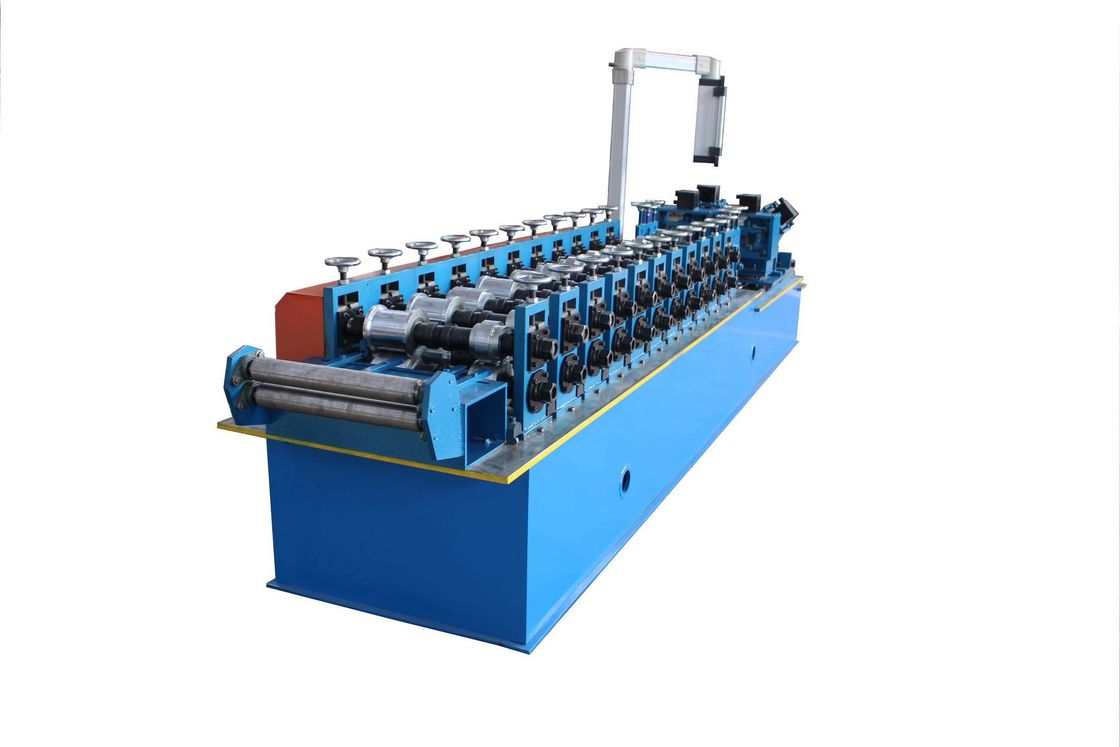

0.3mm Two Line In One U And Omega Roll Forming Machine

0.3mm Two Line In One U And Omega Roll Forming Machine
0.3mm Two Line In One U And Omega Roll Forming Machine 0.3mm Two Line In One U And Omega Roll Forming Machine 0.3mm Two Line In One U And Omega Roll Forming Machine 0.3mm Two Line In One U And Omega Roll Forming Machine

Large Image :  0.3mm Two Line In One U And Omega Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: U And Omega
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Two Line In One U And Omega Stud And Track Roll Forming Machine Raw Material: PL,GL,PPGL,PPGI
Working Speed: 15-20m /min Material Thickness: 0.3mm - 1.5 Mm
Weight: 6 Tons Delivery: 30 Working Days
High Light:

omega roll forming machine

,

u and omega roll forming machine

,

0.3mm omega roll forming machine

Two Line In One U And Omega Stud And Track Roll Forming Machine





C and Omega in one roll forming machine, which is combined with the C chanel roll forming machine and the Omega roll forming machine. It can work separately  because it has an independent control system.Two lines working at the same time can effectively use the machine to improve production efficiency





Specification



No. Item Description
1 Coil PL,GL,PPGL,PPGI
2 Raw Material Thickness 0.3-1.5mm
3 Working Speed 15-20m/min
4 Roller Station 14 Raws
5

Dimension (L*W*H)

6000 mm*1500 mm*1500 mm
6 Machine Weight 4500 KG
7

Electrical Control System

Panasonic PLC (can be customized)

8

Drive Motor Power

7.5 KW
9

Hydraulic Station Power

5 KW
10

Power Supply

380V, 60HZ, 3 PHASES

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

60 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



C and Omega steel structures have beautiful appearance and strong structure, and they are also widely used nowadays. Good lighting, quick disassembly and assembly, time-saving and laborious, light weight, long service life, good stability, cumbersome construction, convenient transportation, and ability to disassemble and assemble many times; the house has features such as meticulous sealing, sound insulation, waterproof structure, moisture resistance and corrosion resistance , Fire resistance, robustness and stability, random intervals, multiple disassembly and assembly and other high-quality functions to meet the opposite needs of customers, so C-shaped steel is widely used in real life.



Advantage



Cangzhou willing has a long history in producing purlin lines. Their technology experience was solidified decades ago with a flexible hydraulic punching system called the soft punch. Since then cangzhou willing has produced several systems to accommodate the changing industry needs.We have a team of professionals with years of experience and proven track record in bringing to you something advanced and innovative that is energy efficient too.
