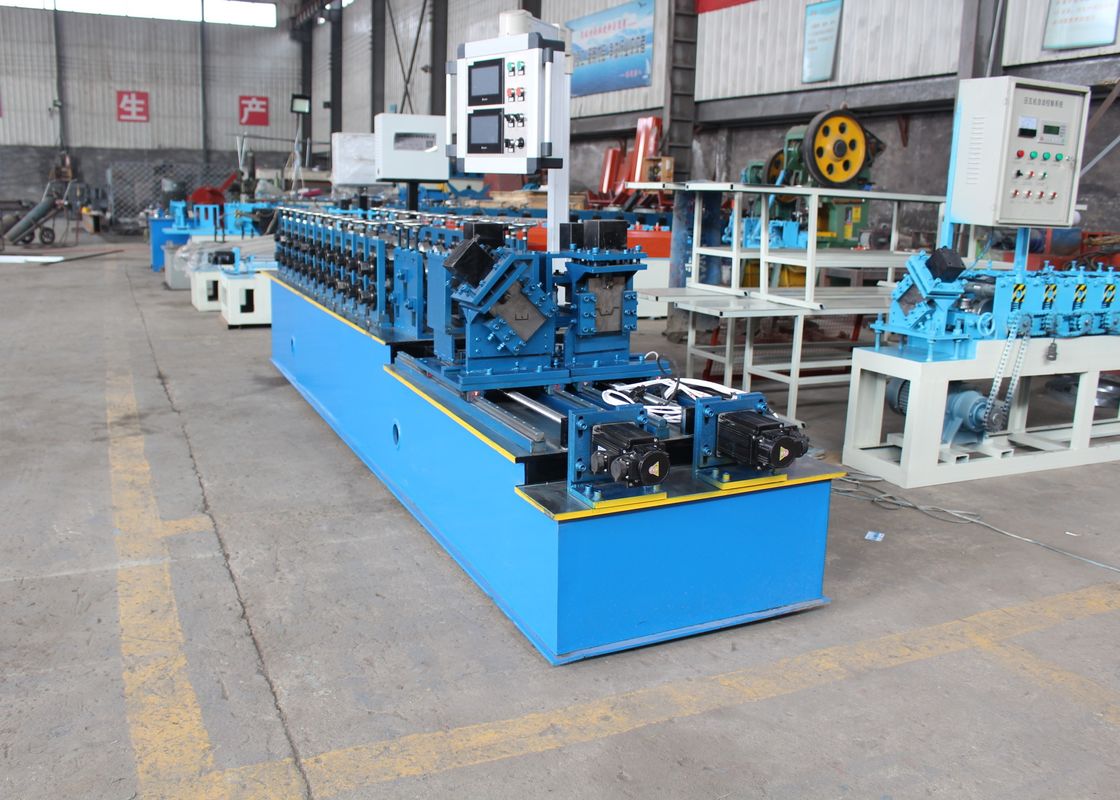

Light Steel 0.4-0.6mm Thickness Stud And Track Roll Forming Machine

Light Steel 0.4-0.6mm Thickness Stud And Track Roll Forming Machine
Light Steel 0.4-0.6mm Thickness Stud And Track Roll Forming Machine

Large Image :  Light Steel 0.4-0.6mm Thickness Stud And Track Roll Forming Machine

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Stud and Track
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Light Steel Stud And Track Roll Forming Machine 0.4-0.6mm Thickness Dimension(L*W*H): 6600 Mm*1500 Mm*1500 Mm
Raw Material: Galvalume, Galvanized Working Speed: 30 M/min - 60 M/min
Color: Customzied Delivery: 30 Working Days
Motor Power: 4KW Container Load: 20 Feet
Pow Supply: 380V, 60Hz, 3Ph Profile: C And U
High Light:

0.4mm stud and track roll forming machine

,

0.6mm stud and track roll forming machine

,

Galvalume stud roll forming machine

Light Steel Stud And Track Roll Forming Machine 0.4-0.6mm Thickness



Noise is actually vibration. A normal stud conducts the vibration across its web, and sound is transmitted via anything that reacts to it by vibrating. The QUIET STUD is overall bigger in surface area than a standard wall stud. Therefore, the sound (vibration) has further to travel and tends to weaken in intensity across the wall, resulting in a more acoustic efficient wall system.



Its unique design, combined with appropriate lining board systems, forms an effective buffer against unwanted noise to provide a cost-effective solution to acoustic control provisions.



Profile

Light Steel 0.4-0.6mm Thickness Stud And Track Roll Forming Machine 0

Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.4-0.6mm
3 Working Speed 30-60 m/min
4 Roller Station 12 Raws
5

Dimension (L*W*H)

5800 mm*1500 mm*1500 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Delta PLC (can be customized)

8

Drive Motor Power

4 KW
9

Hydraulic Station Power

4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

60 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.



Light Steel 0.4-0.6mm Thickness Stud And Track Roll Forming Machine 1
