Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ
Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Large Image :  Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Stud and Track
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Steel Stud And Track Drywall Framing Machine Stud And Track Roll Forming Machine Dimension(L*W*H): 6500 Mm*1500 Mm*1500 Mm
Raw Material: Galvalume, Galvanized Working Speed: 30 M/min - 50 M/min
Color: Customzied Delivery: 30 Working Days
High Light:

ridge cap roll forming machine

,

roof tile roll forming machine

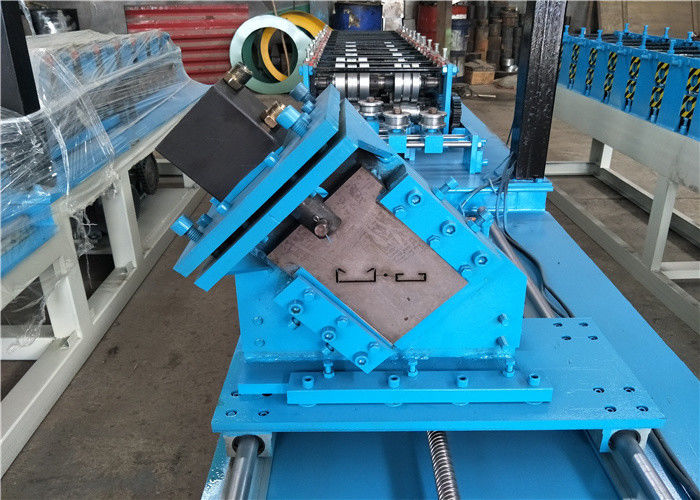

Steel Stud And Track Drywall Framing Machine Stud and Track Roll Forming Machine



The Steel Stud Drywall Framing machine can produce a durable, practical and lightweight structure for internal plasterboard walls and for specific external walls. The availability of various sizes, complimentary components such as nogging tracks, curved tracks and special cleats ensure Stud and Track wal machines are available to suit almost all situations.


Profile

Low Noise Metal Roof Panel Machine Steel Stud Roll Forming Machine 240V 60HZ 0

Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 20-30 GA
3 Working Speed 30-50 m/min
4 Roller Station 14 Raws
5

Dimension (L*W*H)

6000 mm*1500 mm*1500 mm
6 Machine Weight 4500 KG
7

Electrical Control System

Panasonic PLC (can be customized)

8

Drive Motor Power

7.5 KW
9

Hydraulic Station Power

5 KW
10

Power Supply

240V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

60 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining, Plated Hard



Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
