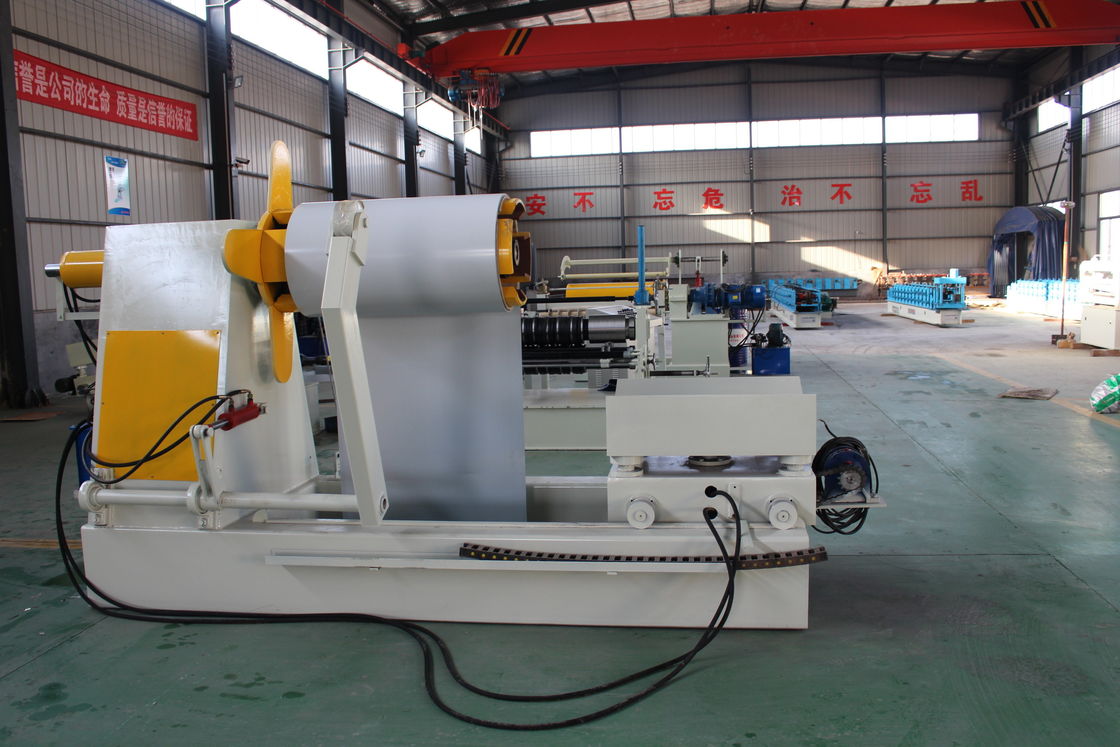

Simple Cut To Length And Slitting Line Low Speed Metal Roofing Roll Former

Simple Cut To Length And Slitting Line Low Speed Metal Roofing Roll Former
Simple Cut To Length And Slitting Line Low Speed Metal Roofing Roll Former

Large Image :  Simple Cut To Length And Slitting Line Low Speed Metal Roofing Roll Former

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU WILLING
Certification: ISO, CE
Model Number: Simple Automatic Slitting Line
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Production Line
Price: Negotiable
Packaging Details: 2 Pcs 40' FLC
Delivery Time: 60 Working Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 Sets Per 60 Days
Detailed Product Description
Product Name: Simple Low Speed Slitting Line With Hydraulic Uncoiler And Recoiler Cutting Material: Galvalume,Galvanized, PPGI, Aluminum
Material Thickness: 0.3 Mm -3 Mm Working Speed: 8 M /min - 30 M/min (can Be Customized)
Coil Weight: 5 Tons / 7 Tons / 10 Tons (can Be Customized) Slitting Pcs: 2 - 30 Pcs
Machine Weight: 13000 KG Cutting Width Precision: ± 0.01 - ± 0.05 Mm
High Light:

cut to length line machine

,

coil cut to length line

Simple Low Speed Slitting Line With Hydraulic Uncoiler And Recoiler



A slitting line will create multiple widths or “mults” from a wider master coil. The mults are made from predetermined widths. The slitter consists of three main parts: an uncoiler, slitter, and recoiler. The material is fed from the uncoiler, through the nip between the two circular cutting wheels (one on top and another underneath), and then re-wound in slit mults on the recoiler. The slitting process has been referred to as part art and part science. It is important that the equipment supplier and end user work in concert so the proper components, arbor size, tooling package, horsepower and tensions are suitable for the material to be slit.



We build our slitting lines are to maintain high precision while allowing for changes to be made on the fly. High capacity coilers and total control over the machinery with state of the art technology to oversee quality control and automation, we offer our lines on time and on budget!

Main Technical Specifications



No. Item Description
1 Main Specification 1 Raw Material Galvanized, Aluminum,Color steel, Handness 235MPa - 485MPa
2 Raw Material Thickness 0.3 mm - 3.0 mm
3 Raw Material Width 600 mm - 1600 mm
4 Tape Inner Diameter φ 480 mm - φ 530 mm
5 TapeOuter Diameter φ 1600 mm
6 Coil Weight 5 tons - 10 tons
7 /Slitting No. Max 30 pcs
8 The Highest Slitting LineSpeed 8 m/min - 30 m/min
9 Minimum Cutting Line Width 35 mm
10 Cutting Width Precision ± 0.01 - ± 0.05 mm
11. Rated Operational Voltage 240 V, 3 Phase, 60 Hz
12. Total Weight 13000 KG
12. Working Space(L*W)  20000 mm*6000 mm
2 Decoiler Machine Specification 1 Tape Outer Diameter Max φ 1600 mm
2 Tape Width 600 mm - 1600 mm
3 Tape Inner Diameter φ 480 mm - φ 530 mm
4 Coil Weight 5 tons - 10 tons
5 Max Working Speed 8 m/min - 30 m/min
6 Tape Tight Range φ 480 mm - φ 530 mm
7 Shaft Diameter φ180 mm
Decoiler Machine Specification 8 Roller Effective Length 1600 mm
9 Drive Moter Power 5.5 KW
10. Loading Car Diameter φ 700 mm - φ 1500 mm
11  Loading Car Weight 5 tons - 10 tons
12 Car Speed About 4 m/min
4 Slitting Machine Specification 1 Cutting Width Max φ 1600 mm
2 Cutting Thickness 0.3 mm - 2.0 mm
3 Cutter Shaft Diameter φ180 mm
4 Cutter Shaft Material Cr 40
5.Cutter Size 200 mm*300 mm*15 mm
6 Cutter Material Cr12MoV
7 Cutter Spacer Size 180 mm*240 mm*15 mm
8 Drive Moter 15 kw
9 Cutting No. 2-30 pcs
10 Cutter No. Max 32 pcs
5 Planing Machine 1 Shaft Diameter φ 130 mm
2 Shaft No. Up 2 rows, down 3 rows
3 Mid Plate Thickness 40 mm
4 Mulch Applicator Diameter φ 130 mm
5 Film Width 1600 mm
6 Tension Table 1 Segregation Shaft 3 pcs, 1 pcs pressure shaft
2 Air Cylinder 3 pcs
7 Recoiler Specification 1 Tape Outer Diameter Max φ 1600 mm
2 Tape Width 600 mm - 1600 mm
3 Tape Inner Diameter φ 480 mm - φ 530 mm
4 Coil Weight 5 - 10 tons
5 Max Working Speed 8 m/min - 30 m/min
6 Tape Tight Range φ 485 mm - φ 530 mm
7 Shaft Diameter φ 180 mm
8 Roller Effective Length 1750 mm
9 Drive Moter Power 30 kw
8 Recoiler Specification 10 Loading Car Diameter φ 1000 mm - φ 1750 mm
11  Loading Car Weight Max 10 tons
12 Car Speed About 4 m/min
9 Electrical Control System 2 sets. Computer Control System is Siemens PLC.
10 Edge Collecting Machine 1 Drive Moter 3 kw
2 Collecting Material Width Max 20 mm
3 Double Edge Width 400 mm



Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
