Hollow Type Cast Iron Surface Plate High Precision Marking Out Repeated Use

Hollow Type Cast Iron Surface Plate High Precision Marking Out Repeated Use

inspection surface plates

surface table calibration

Place of Origin:

China

Brand Name:

OEM

Certification:

CO, FORM-E

Contact Us
Request A Quote
Hollow Type Cast Iron Surface Plate High Precision Marking Out Repeated Use
Product Details
Material:
HT250
Name:
Cast Iron Mounting Plate
Type:
Hollow Type
Flatness:
1 Grade
Size:
As Clients Request
Surface Finish:
Hand Scrap
Highlight:

inspection surface plates

,

surface table calibration

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden
Delivery Time
20days
Payment Terms
Western Union, T/T
Supply Ability
10/monthd
RELATED PRODUCTS
Good price Tee Slotted Bed Plates 3.05 X 2.54 Meters High precision Marking Out online

Tee Slotted Bed Plates 3.05 X 2.54 Meters High precision Marking Out

Get Best Price
Good price Durable Cast Iron Cube Box 12''L X 10''W X 9''H T Slotted Stable Performance online

Durable Cast Iron Cube Box 12''L X 10''W X 9''H T Slotted Stable Performance

Get Best Price
Good price Rust Proof Surface Plate Calibration 20mm Slots Good Grinding Resistance online

Rust Proof Surface Plate Calibration 20mm Slots Good Grinding Resistance

Get Best Price
Good price Grey Iron Surface Plate Calibration 2 Grade Flatness Inspection Surface Plates online

Grey Iron Surface Plate Calibration 2 Grade Flatness Inspection Surface Plates

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

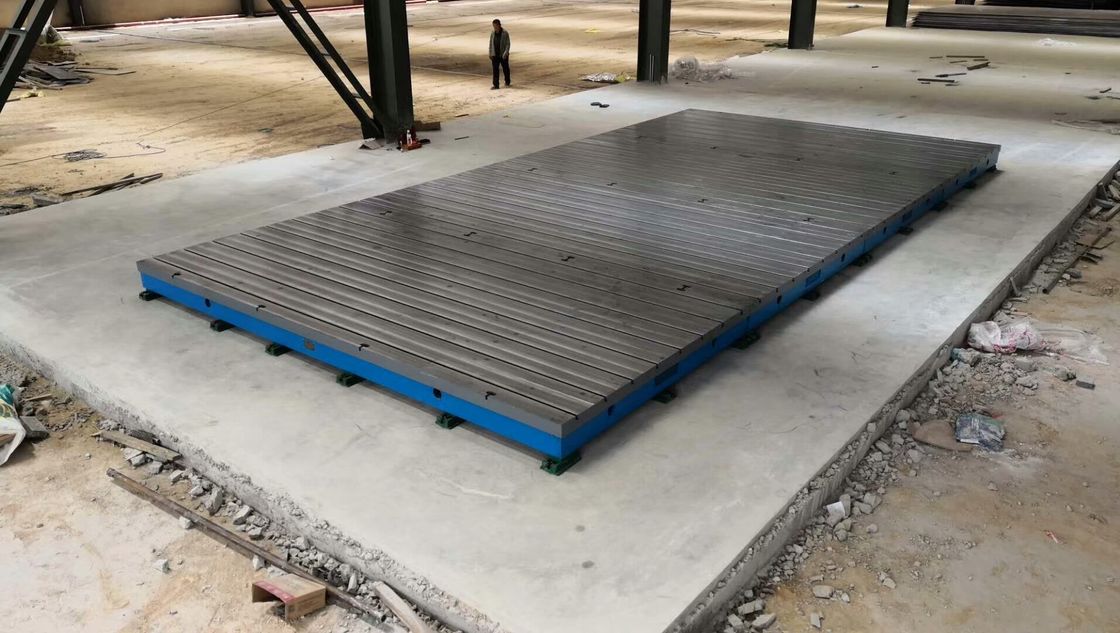

Cast Surface Plate Marking Out Table



Cast iron Surface Plates and Tables serve as a precision reference base for inspection, tool making, gauging, spotting marking and layout operations. Granite or Cast Iron Surface Plates are supported on suitable stand called Surface Tables Stands enable proper levelling of plate and also provide the top surface at a convenient working height of approx. 850 to 900 mm from the floor.

Salient Features

  • Made generally as per IS: 2285.
  • Made from close grained plain cast iron conforming to Grade FG:220 of IS: 210 (equivalent to GG20/ FT20 / 30-A). Higher grades also offered on request.
  • Castings stress relieved to relieve internal stresses.
  • Sizes upto 2000 x 1000 mm offered in four Grades of flatness accuracies viz Grades 0, 1, 2 & 3 as stated in table.
  • Hand scraped surface finish for Grades 0, 1 and 2 flatness accuracies & smooth machined / rough ground / scraped surface finish for Grade 3 flatness accuracies.
  • Rigidity requirements as per IS: 2285 ensured in case of Surface Plates of Grades 0, 1 and 2 only.
  • Flatness determination done by grid method as per clause 4.3.1 of IS: 12937 Indian standards on Engineering Metrology "Methods of Testing Straightness, Flatness and Perpendicularity".
  • Flatness accuracy checked by Electronic level. Computer print out of the contour of top working surface is furnished.
  • Plates up to 630 x 630 mm provided with handles for lifting. Larger plates provided with cored holes in peripheral ribbing for lifting by mechanical means.
  • Column type C. I. Floor stands or M.S. Fabricated stands with leveling screws supplied at extra charge, if required.
  • Special features like grid slots for location, tapped holes and T-slots can be provided on working surface, if required.
  •
  • Specification
    Length*width*thickness(mm)
    weight(kgs)
    precision Grade(µm)
    000
    00
    0
    1
    200*200*50
    17
    1.5
    3
    6
    12
    300*300*50
    19
    1.5
    3
    6
    12
    400*300*70
    25
    1.5
    3
    6
    12
    400*400*70
    48
    2
    3.5
    6.5
    13
    630*400*100
    76
    2
    3.5
    7
    14
    630*630*100
    155
    2
    4
    8
    16
    800*500*130
    156
    2
    4
    8
    16
    1000*630*130
    284
    2.5
    4.5
    9
    18
    1000*750*150
    338
    2.5
    5
    9
    18
    1000*1000*150
    450
    2.5
    5
    10
    20
    1000*1000*200
    963
    3
    6
    12
    24
    2000*1000*100
    1200
    3.5
    6.5
    13
    26
    1600*1600*300
    2312
    3.5
    6.5
    13
    26
    2000*1600*300
    2890
    3.5
    7
    14
    28
    2500*1600*300
    3612
    4
    8
    16
    32
    3000*2000*500
    9030
    4.5
    9
    28
    36
    4000*2000*500
    10240
    5.5
    11
    22
    44
    6000*2000*700
    25284
    7.5
    15
    30
    60

             Hollow Type Cast Iron Surface Plate High Precision Marking Out Repeated Use 0
