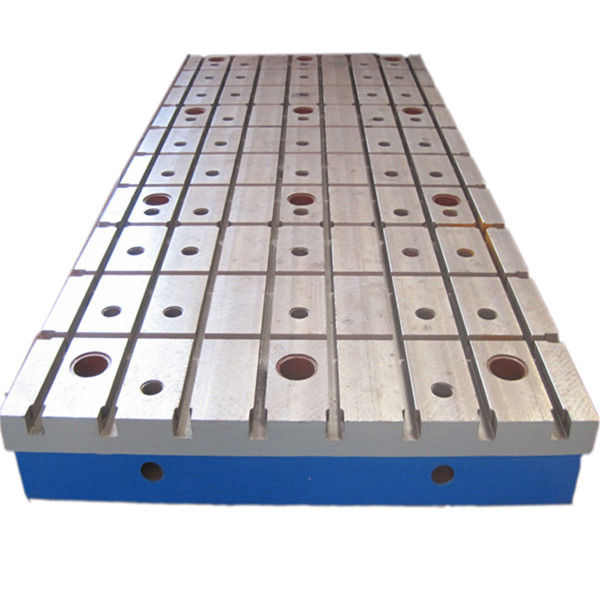

Welding Use Cast Iron Surface Plate With Hole 3000 X 2000 MM HT200-300

Welding Use Cast Iron Surface Plate With Hole 3000 X 2000 MM HT200-300
Welding Use Cast Iron Surface Plate With Hole 3000 X 2000 MM HT200-300 Welding Use Cast Iron Surface Plate With Hole 3000 X 2000 MM HT200-300

Large Image :  Welding Use Cast Iron Surface Plate With Hole 3000 X 2000 MM HT200-300

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CO, FORM-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden
Delivery Time: 20days
Payment Terms: Western Union, T/T
Supply Ability: 10/monthd
Detailed Product Description
Material: HT250 Name: 3000 X 6000 Mm Cast Iron T Slot Base Plate With Water Channel
Type: Hollow Type Flatness: 1 Grade
Size: As Clients Request Surface Finish: Hand Scrap
High Light:

precision surface plate

,

surface table calibration

3000 x 6000 mm Cast Iron T Slot Base Plate With Water Channel



Machine t slot cast iron surface bed table plate

The cast iron surface plates are manufactured according to GB4986-85 standard to ensure the high quality. Cast iron inspection surface plate with T-slot:

Material
HT200-300
Standard
GB/T22095-2008
Specification
100x200-3000x8000mm or customized
Surface
flat (accessories are available according to your requirement, like V, T, straight-shaped slots and tapped holes, long holes, grid lines, etc)
Hardness of the working surface
HB160-240
Surface treatment
hand-scraped, finish-milling or ground finish
Foundry process
sand casting or centrifugal casting
Molding type
resin sand molding
Painting
primer and face paint
Surface coating
pickling oil and plastic-lined or covered with anticorrosion paint
Surface flatness
Master, Working, Reference
Precision grade
1-3
Working temperature
(20±5)℃
Packaging
wooden box



Notice for use

1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.

Welding Use Cast Iron Surface Plate With Hole 3000 X 2000 MM HT200-300 0
