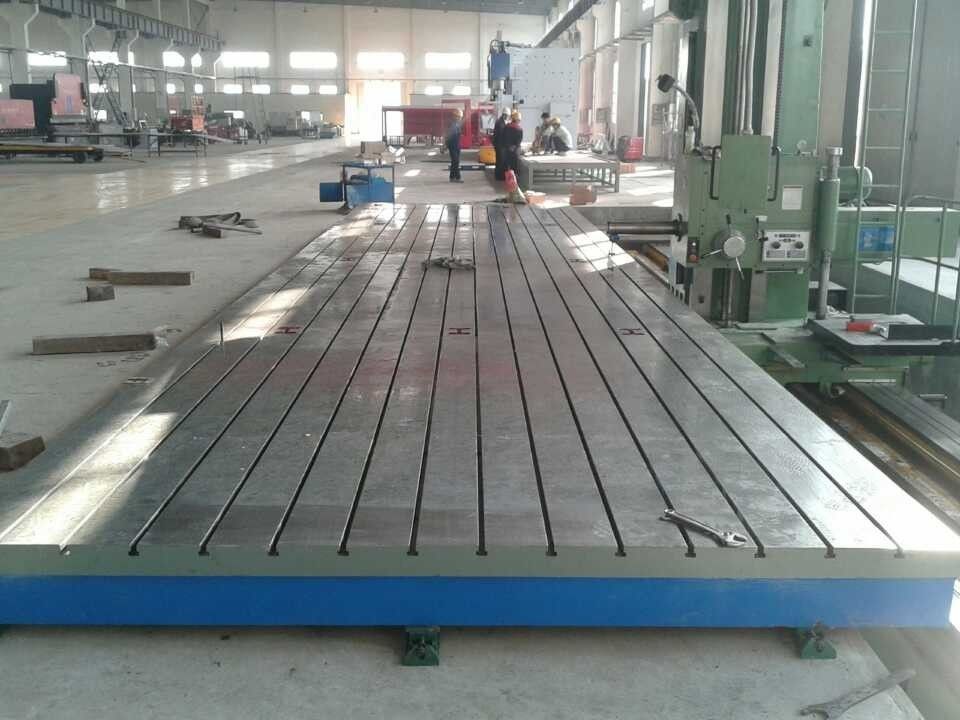

Professional Flat Inspection Surface Plates Customized Iron Surface Plate

Professional Flat Inspection Surface Plates Customized  Iron Surface Plate
Professional Flat Inspection Surface Plates Customized  Iron Surface Plate Professional Flat Inspection Surface Plates Customized  Iron Surface Plate

Large Image :  Professional Flat Inspection Surface Plates Customized Iron Surface Plate

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CO, FORM-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden
Delivery Time: 20days
Payment Terms: Western Union, T/T
Supply Ability: 10/monthd
Detailed Product Description
Material: HT250 Name: T-Slotted Floor Plate, Leveling Screws
Type: Hollow Type Flatness: 1 Grade
Size: As Clients Request Surface Finish: Hand Scrap
High Light:

inspection surface plates

,

precision surface plate

T-Slotted Floor Plate, Leveling Screws



Cast iron surface plates are also known as cast iron platform, the cast iron surface plates are manufactured according to GB4986-85 standard to ensure the high quality. The products are always made into ribbed plate or box-type; our company uses the scraping process to improve the precision of the products. Since the products are customized, so the customers can customize the size according to the actual needs. Plurality of cast iron surface plate can be spliced, once abrasion after use, the plate can be re-repair scratch to resume its accuracy.



usage

(1) Suitable for various inspections and benchmark planes for accuracy measurement.
(2) Used widely as the measurement benchmark for machine tool inspection and to inspect thedimension accuracy or running difference with the function of performing precise lineation.
(3) It is an essential measuring tool in machine manufacturing.







Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm) Flatness tolerance (um)
  Grade1 Grade2 Grade 3 Finihs plane
400x400 12 24
600x400 14 28
800x500 16 32 80
900x600 16 32 80
1000x750 18 36 90
1000x1000 20 39 96
1500x1000 25 48 120
2000x1000 26 52 129
2000x1500   56 140
2000x2000   60 152 230
2500x1500   68 168 248
3000x1000     174 248
3000x2000     184 275
3000x3000     210 300
4000x1000     210 300
4000x2000     219 310
4000x3000     240 360
5000x2000     255 375
5000x3000     287 420
6000x2000     293 430
6000x3000     308 460
8000x2000     370 520
8000x3000     382 570
