High Strength Surface Plate Calibration In Machinery Electronics Industry

High Strength  Surface Plate Calibration In Machinery Electronics Industry
High Strength  Surface Plate Calibration In Machinery Electronics Industry High Strength  Surface Plate Calibration In Machinery Electronics Industry

Large Image :  High Strength Surface Plate Calibration In Machinery Electronics Industry

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CO, FORM-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden
Delivery Time: 20days
Payment Terms: Western Union, T/T
Supply Ability: 10/monthd
Detailed Product Description
Material: HT250 Name: Stolle Bed Plates
Type: Hollow Type Flatness: 1 Grade
Size: As Clients Request Surface Finish: Hand Scrap
High Light:

inspection surface plates

,

precision surface plate

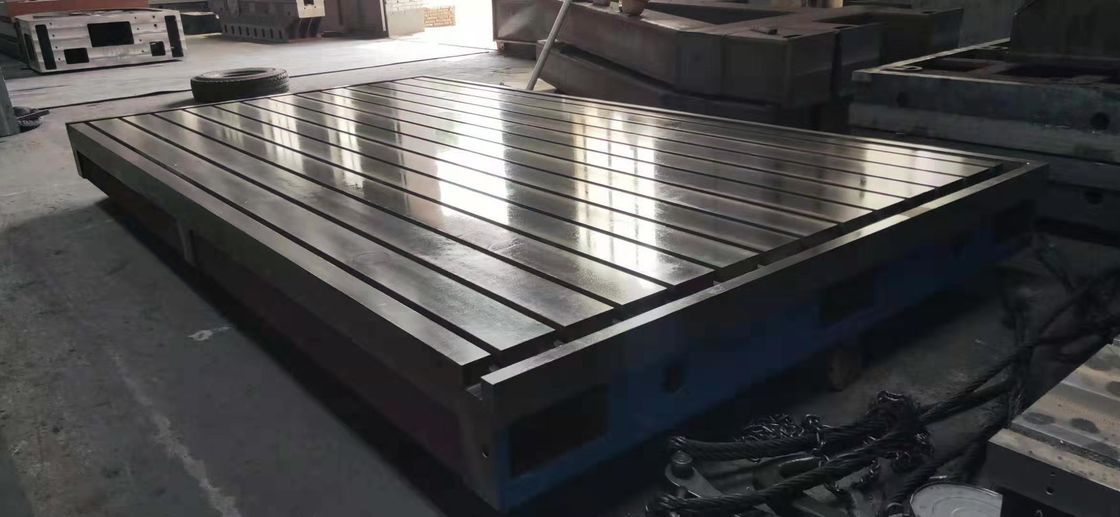

Cast Iron T Slotted Bed Plates Stolle Bed Plates



Cast iron surface plate mainly used for machinery, machine tool board manufacturing, electronics, electric power, all kinds of industries, Most commonly used in industrial production, 95 per cent of the total output .

In recent years, due to some of the private enterprise to join, cast iron surface plate yields markedly increased, cast iron surface plate used in small enterprise has some changes too . Due to the development of China's industry,cast iron surface plate of expanding ceaselessly as the demand that comes from domestic market.



Maintenance

The material of surface plate is HT200-300.after your using ,pls daub rust-proof to avoid rust.



Notice for use

1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.



specification(Lx W)mm precision grade
0 1 2 3
flatness tolerance (um)
200X200 3.5 7 14 27
300X200 4 8 15 30
300X300 4 8 15 30
300X400 4 8 16 32
400X400 4.5 8.5 17 34
400X500 4.5 9 18 35
400X600 5 10 19 37
500X500 5 10 19 37
500X600 5 10 19 39
500X800 5.5 11 21 43
600X800 5.5 11 22 44
600X900 6 11.5 23 46
1000X750 6 12.5 25 50
1000X1000 7 13.5 27 54
1000X1200 7 14 29 58
1000X1500 8 16 32 63
1000X2000 9 18.5 37 74
1500X2000 10 20 40 80
1500X2500 11 22.5 45 90
1500X3000 13 25 50 100
2000X2000 11 22 44 88
2000X3000 13 27 53 106
2000X4000 16 32 64 127
2000X5000 19 37 75 150
2000X6000   43 86 172
2000X7000   49 97 194
2000X8000   54.5 109 218
2500X3000   28.5 57 114
2500X4000   33 67 133
2500X5000   39 77 154
2500X6000   44 88 176
2500X7000   50 99 198
2500X8000   55 110 221
3000X3000   30.5 61 122
3000X4000   35 70 140
3000X5000   40 80 160
3000X6000   45 90.5 181
3000X7000   51 101 203
3000X8000   56 112.5 225
4000X4000   39 78 156
4000X5000   43 87 174
4000X6000   48 96.5 193
4000X7000   53 107 213.5
4000X8000   59 117 235
