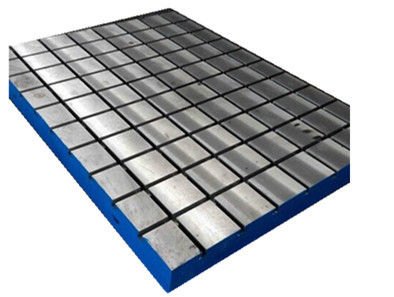

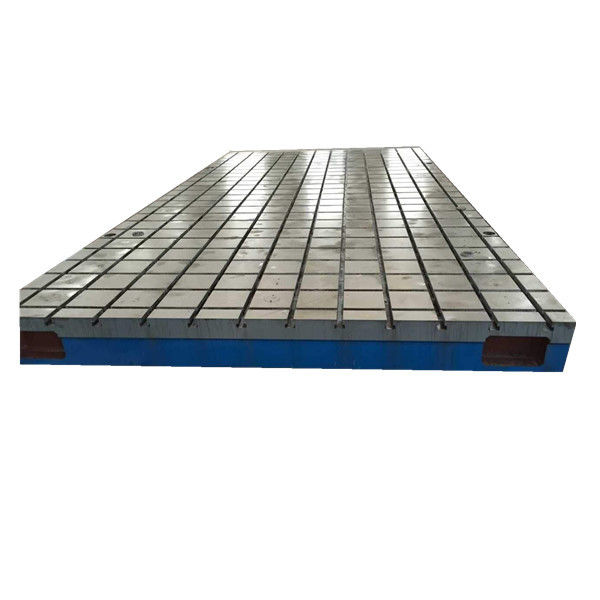

T Grooves Surface Plate Calibration Hollow Type Hand Scraped Surface Finish

T Grooves Surface Plate Calibration Hollow Type Hand Scraped Surface Finish
T Grooves Surface Plate Calibration Hollow Type Hand Scraped Surface Finish T Grooves Surface Plate Calibration Hollow Type Hand Scraped Surface Finish

Large Image :  T Grooves Surface Plate Calibration Hollow Type Hand Scraped Surface Finish

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CO, FORM-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden
Delivery Time: 20days
Payment Terms: Western Union, T/T
Supply Ability: 10/monthd
Detailed Product Description
Material: HT250 Name: Cast Iron Surface Plate With T Grooves
Type: Hollow Type Flatness: 1 Grade
Size: As Clients Request Surface Finish: Hand Scrap
High Light:

inspection surface plates

,

precision surface plate

Cast Iron Surface Plate With T Grooves



Material: HT200-300

Standard: GB/T22095-2008

Specification: 100x200-3000x8000mm or customize

Surface: flat (accessories are available according to your requirement, like V, T, straight-shaped slots and tapped holes, long holes, grid lines, etc)

Hardness of the working surface: HB160-240

Surface treatment: hand-scraped, finish-milling or ground finish

Foundry process: sand casting or centrifugal casting

Molding type: resin sand molding

Painting: primer and face paint

Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint

Surface flatness: Master, Working, Reference

Precision grade: 1-3

Working temperature: (20±5)℃

Packaging: wooden box



Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm) Flatness tolerance (um)
  Grade1 Grade2 Grade 3 Finihs plane
400x400 12 24
600x400 14 28
800x500 16 32 80
900x600 16 32 80
1000x750 18 36 90
1000x1000 20 39 96
1500x1000 25 48 120
2000x1000 26 52 129
2000x1500   56 140
2000x2000   60 152 230
2500x1500   68 168 248
3000x1000     174 248
3000x2000     184 275
3000x3000     210 300
4000x1000     210 300
4000x2000     219 310
4000x3000     240 360
5000x2000     255 375
5000x3000     287 420
6000x2000     293 430
6000x3000     308 460
8000x2000     370 520
8000x3000     382 570



Installation and adjustment

When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)



Notice for use

1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.

T Grooves Surface Plate Calibration Hollow Type Hand Scraped Surface Finish 0
